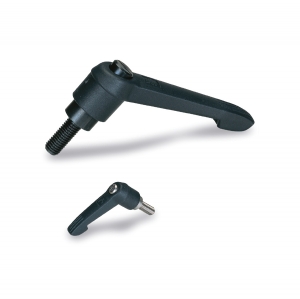

Adjustable handle

in composite plastic

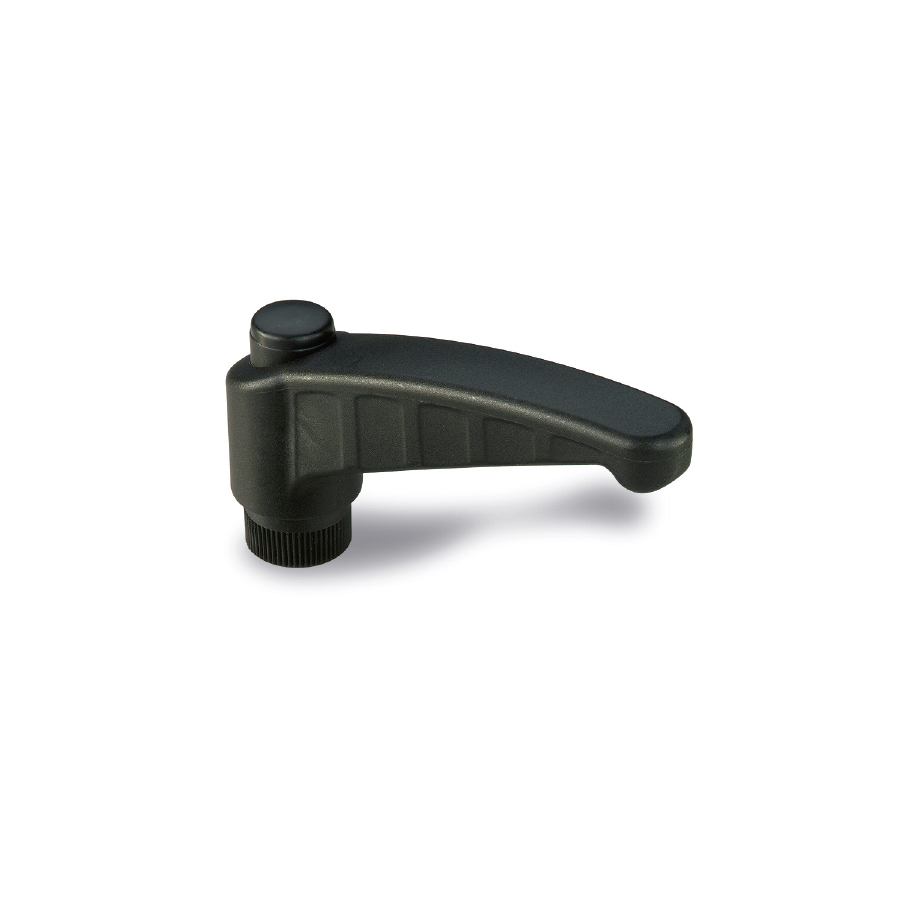

Adjustable lever fit

for «big batch» in composite plastic

Adjustable handles and levers : Adjustable lever fit  for «big batch» in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Lever in high resistance polyamide reinforced with glass fibres, black matt, with female inserts in brass and studs in zinc plated steel.

AVAILABLE VERSIONS

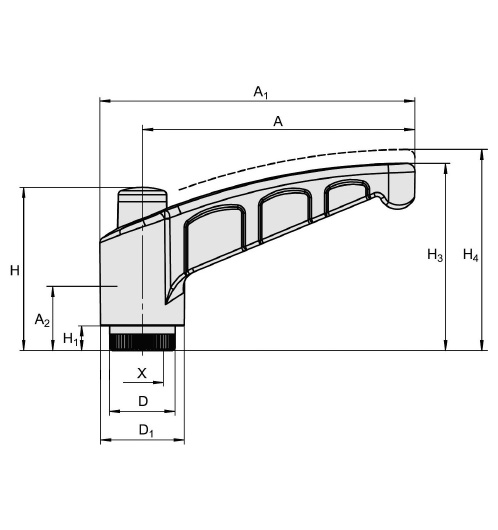

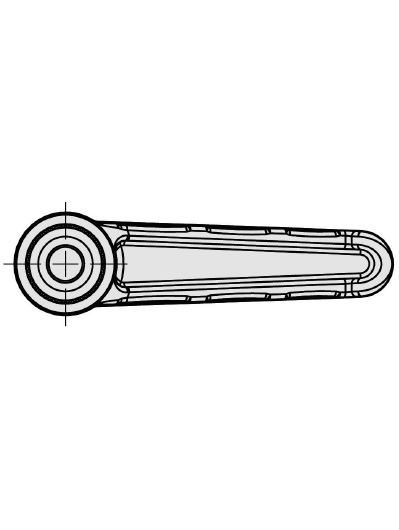

Schéma 1 + Adjustable lever fit  for «big batch» in composite plastic

01 / Female insert

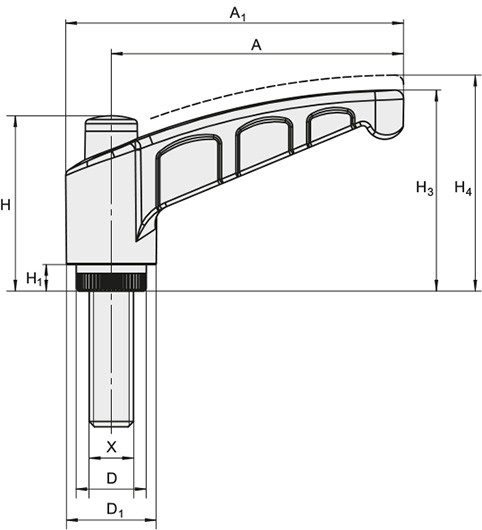

Schéma 2 + Adjustable lever fit  for «big batch» in composite plastic
REF DESIGNATION A X A1 A2 B D D1 H H1 H2 H3 H4 3D Quote
6060 ADJUSTABLE HANDLE POLYA. L.45 BRASS INS M5 45 M5 52,5 7,5 8 12 15 29 4 15 34 37
6061 ADJUSTABLE HANDLE POLYA. L.45 BRASS INS M6 45 M6 52,5 9 8 12 15 29 4 15 34 37
6063 ADJUSTABLE HANDLE POLYA. L.65 BRASS INS M8 65 M8 75 15 9 16 20 36 6 18 45 48
6064 ADJUSTABLE HANDLE POLYA. L.80 BRASS INS M8 80 M8 91,5 14 11 19 23 46 12 24 56 59
6070 ADJUSTABLE HANDLE POLYA. L.80 BRASS INS M10 80 M10 91,5 18 11 19 23 46 12 24 56 59

02 / With stud

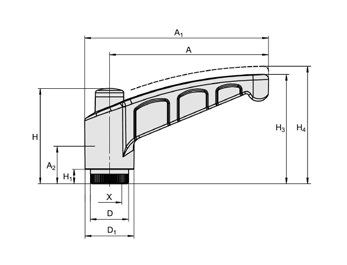

Schéma 3 + Adjustable lever fit  for «big batch» in composite plastic
REF DESIGNATION A X A1 B D D1 H H1 H3 H4 3D Quote
605220 ADJUSTABLE HANDLE POLYA. L.45 STEEL STUD M6*20 45 M6 52,5 8 12 15 29 4 34 37
605225 ADJUSTABLE HANDLE POLYA. L.45 STEEL STUD M6*25 45 M6 52,5 8 12 15 29 4 34 37
605420 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*20 65 M8 75 9 16 20 36 6 45 48
605425 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*25 65 M8 75 9 16 20 36 6 45 48
605430 ADJUSTABLE HANDLE POLYA. L.65 STEEL STUD M8*30 65 M8 75 9 16 20 36 6 45 48
605620 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*20 80 M10 91,5 11 19 23 46 12 56 59
605625 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*25 80 M10 91,5 11 19 23 46 12 56 59
605630 ADJUSTABLE HANDLE POLYA. L.80 STEEL STUD M10*30 80 M10 91,5 11 19 23 46 12 56 59
