Pull handles

Tubular pull handles
Available variations

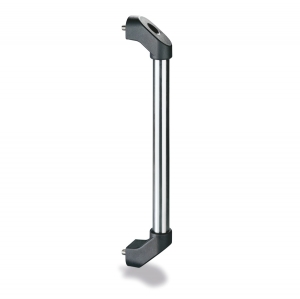

Handle DB

with aluminium tube  diam. 30mm

Handle DB

with  aluminium tube diam. 20mm

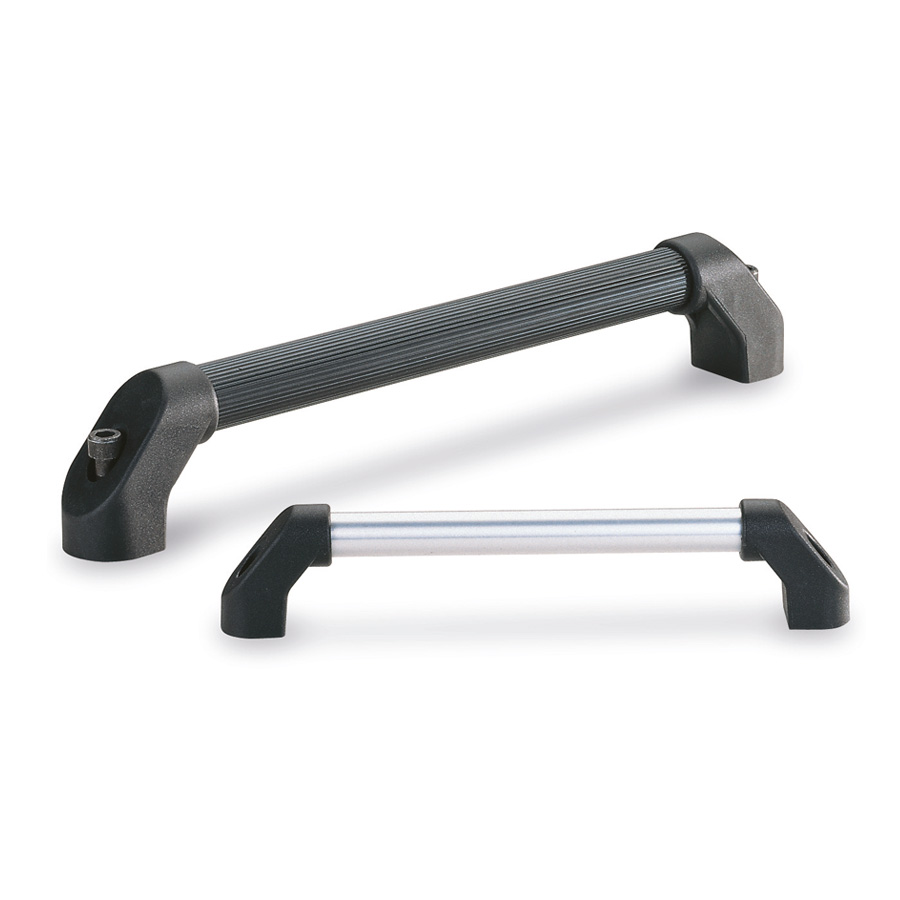

Tubular pull handles : Handle DB with  aluminium tube diam. 20mm
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

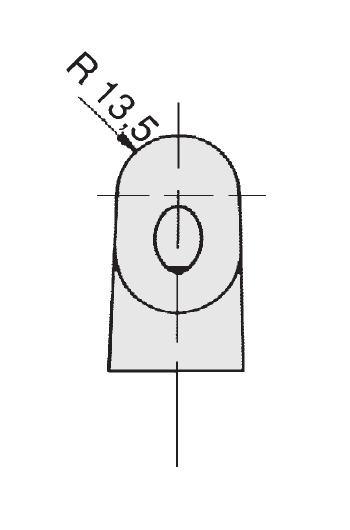

Handle shanks and caps made of high duty polyamide, glass bead reinforced, black, half-matt. Connecting tube made of aluminium AlMgSi 0.5, ground and anodized. The handle shanks are designed with 4 clamping bars ; when the tube is inserted, they will peel off and provide firm fitting. Handle supplied with galvanized fastening material. Handle is supplied assembled. Stress resistance min. 1000 N.

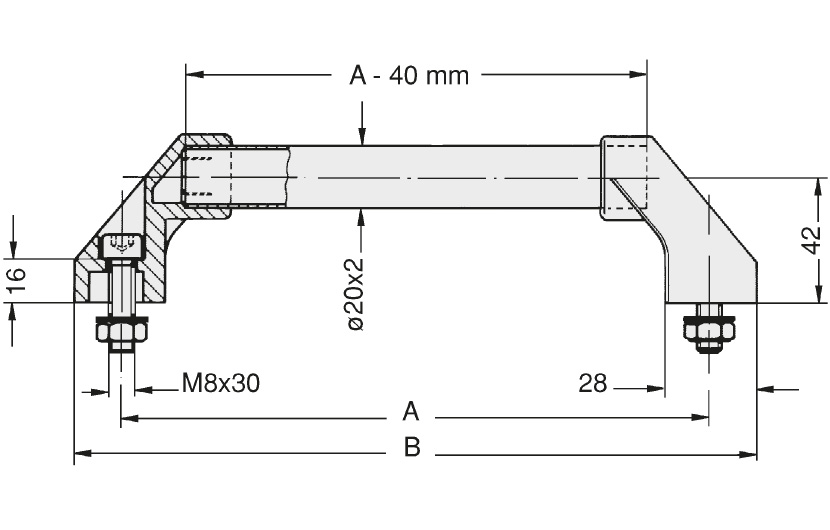

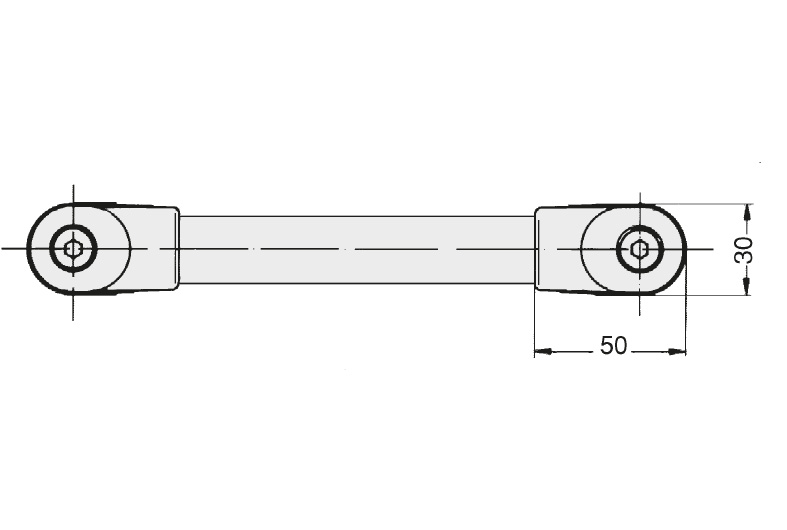

REF DESIGNATION A B Wgt. (g) 3D Quote
10530 HANDLE DB ALU 180MM FITTING M8 180 210 172
10531 HANDLE DB ALU 200MM FITTING M8 200 230 179
10532 HANDLE DB ALU 250MM FITTING M8 250 280 196
10533 HANDLE DB ALU 300MM FITTING M8 300 330 215
10534 HANDLE DB ALU 350MM FITTING M8 350 380 233
10535 HANDLE DB ALU 400MM FITTING M8 400 430 250
10536 HANDLE DB ALU 500MM FITTING M8 500 530 286
10537 HANDLE DB ALU 600MM FITTING M8 600 630 322
10540 HANDLE DB ALU 180MM FITTING M8 COVER 180 210 172
10541 HANDLE DB ALU 200MM FITTING M8 COVER 200 230 179
10542 HANDLE DB ALU 250MM FITTING M8 COVER 250 280 196
10543 HANDLE DB ALU 300MM FITTING M8 COVER 300 330 215
10544 HANDLE DB ALU 350MM FITTING M8 COVER 350 380 233
10545 HANDLE DB ALU 400MM FITTING M8 COVER 400 430 250
10546 HANDLE DB ALU 500MM FITTING M8 COVER 500 530 286
10547 HANDLE DB ALU 600MM FITTING M8 COVER 600 630 322
