Clamping knobs and handles

Star knobs and grips
Available variations

Knob BR

in composite plastic

Knob BRT

in composite plastic

Knob BRX

in stainless steel

Knob BRF

in cast iron

Knob BRN

in composite plastic

Star knobs and grips : Knob BRN in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

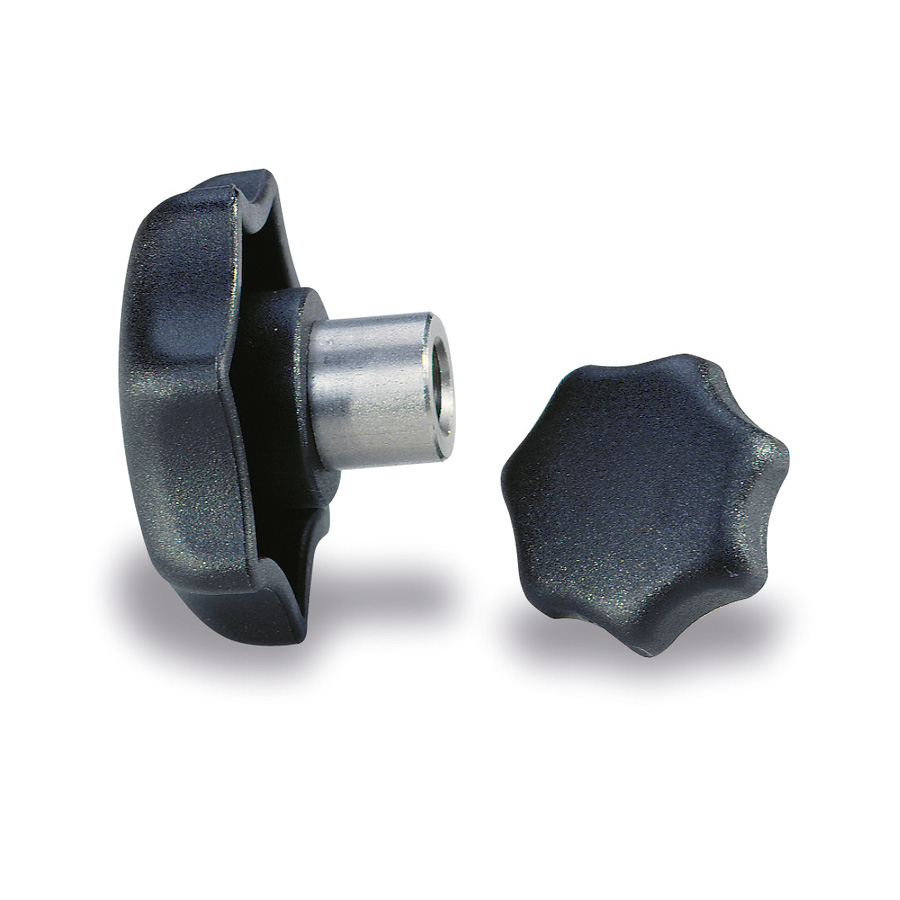

Knob made of glass fibre reinforced polyamide, black matt. Large size insert with blind hole, either in zinc plated steel 5.8 or stainless steel 1.4305 AISI 303.

AVAILABLE VERSIONS

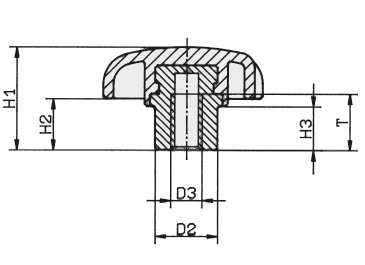

Schéma 1 + Knob BRN in composite plastic

01 / Threaded insert

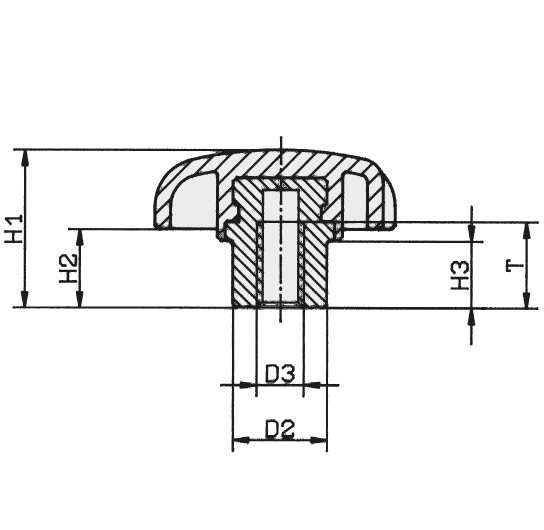

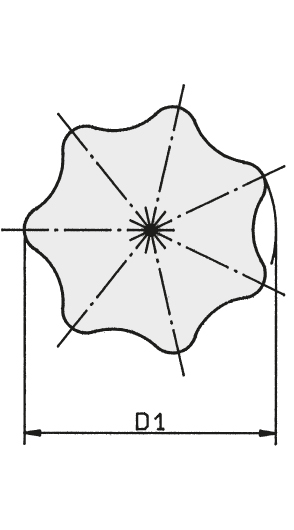

Schéma 2 + Knob BRN in composite plastic
REF DESIGNATION D1 D3 D2 H1 H2 H3 T Wgt. (g) 3D Quote
8099 KNOB BRN POLYA. D.25 STEEL NUT M5 25 M5 10 16 8 6 9,5 8
8100 KNOB BRN POLYA. D.32 STEEL NUT M6 32 M6 12 20 10 8,5 12 15
8105 KNOB BRN POLYA. D.40 STEEL NUT M6 40 M6 14 25 13 10 14 25
8101 KNOB BRN POLYA. D.40 STEEL NUT M8 40 M8 14 25 13 10 14 24
8106 KNOB BRN POLYA. D.50 STEEL NUT M8 50 M8 18 32 17 12 18 52
8102 KNOB BRN POLYA. D.50 STEEL NUT M10 50 M10 18 32 17 12 18 51
8107 KNOB BRN POLYA. D.62 STEEL NUT M10 63 M10 20 40 21 15 22 84
8103 KNOB BRN POLYA. D.62 STEEL NUT M12 63 M12 20 40 21 15 22 82
8104 KNOB BRN POLYA. D.62 STEEL NUT M16 63 M16 22,5 40 21 15 22 85
8099i KNOB BRN POLYA. D.25 STAINL. NUT M5 25 M5 10 16 8 6 9,5 8,6
8100i KNOB BRN POLYA. D.32 STAINL. NUT M6 32 M6 12 20 10 8,5 12 15,2
8105i KNOB BRN POLYA. D.40 STAINL. NUT M6 40 M6 14 25 13 10 14 26
8101i KNOB BRN POLYA. D.40 STAINL. NUT M8 40 M8 14 25 13 10 14 26
8106i KNOB BRN POLYA. D.50 STAINL. NUT M8 50 M8 18 32 17 12 18 52,3
8102i KNOB BRN POLYA. D.50 STAINL. NUT M10 50 M10 18 32 17 12 18 52,3
8107i KNOB BRN POLYA. D.63 STAINL. NUT M10 63 M10 20 40 21 15 22 84,6
8103i KNOB BRN POLYA. D.63 STAINL. NUT M12 63 M12 20 40 21 15 22 84,6
8104i KNOB BRN POLYA. D.63 STAINL. NUT M16 63 M16 22,5 40 21 15 22 94,5

02 / Untreated insert

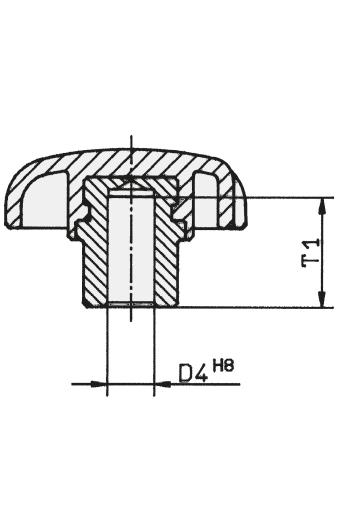

Schéma 3 + Knob BRN in composite plastic
REF DESIGNATION D1 D5 D2 D4H8 H1 H2 H3 Wgt. (g) 3D Quote
8109 KNOB BRN POLYA. D.25 STEEL NUT BORE 5MM 25 5 10 5 16 8 6 8
8110 KNOB BRN POLYA. D.32 STEEL NUT BORE 6MM 32 6 12 6 20 10 8,5 15
8115 KNOB BRN POLYA. D.40 STEEL NUT BORE 6MM 40 6 14 6 25 13 10 25
8111 KNOB BRN POLYA. D.40 STEEL NUT BORE 8MM 40 8 14 8 25 13 10 24
8116 KNOB BRN POLYA. D.50 STEEL NUT BORE 8MM 50 8 18 8 32 17 12 52
8112 KNOB BRN POLYA. D.50 STEEL NUT BORE 10MM 50 10 18 10 32 17 12 51
8117 KNOB BRN POLYA. D.62 STEEL NUT BORE 10MM 63 10 20 10 40 21 15 84
8113 KNOB BRN POLYA. D.62 STEEL NUT BORE 12MM 63 12 20 12 40 21 15 82
8114 KNOB BRN POLYA. D.62 STEEL NUT BORE 16MM 63 16 22,5 16 40 21 15 85
