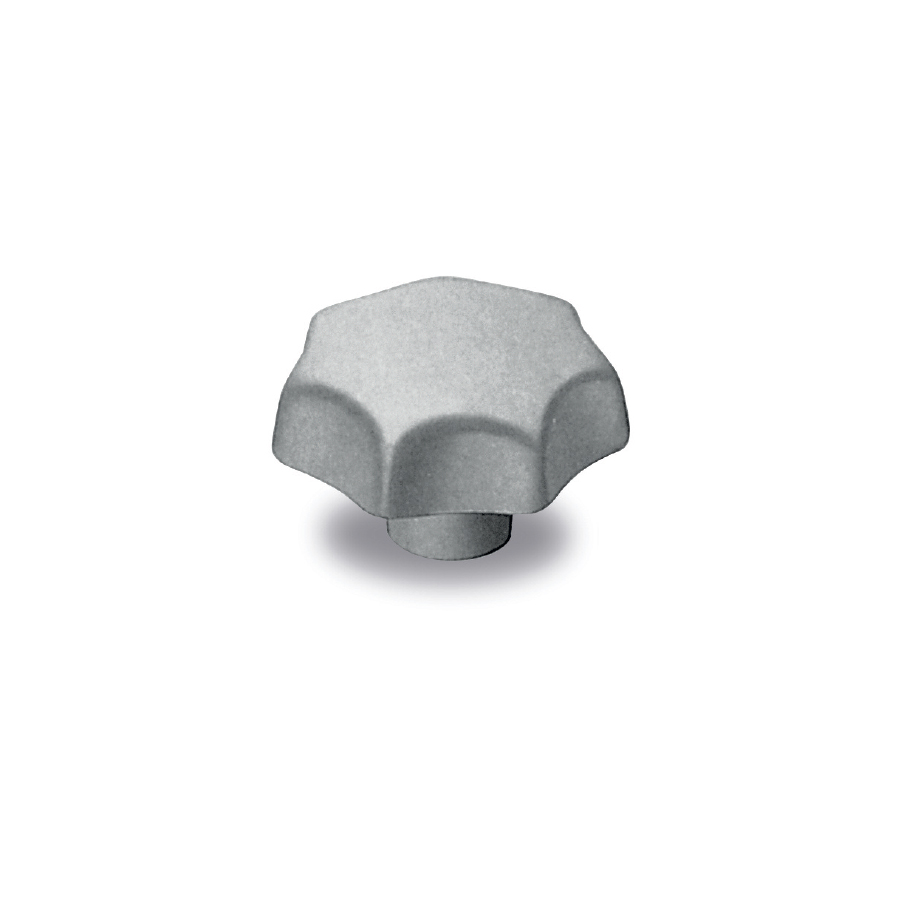

Star knobs and grips : Knob BRF in cast iron
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Knob made of cast iron GjL 200, tumbled, natural finish.

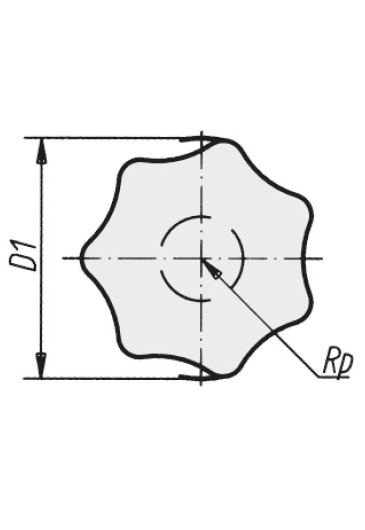

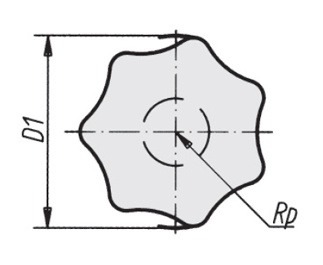

Schéma 1 + Knob BRF in cast iron

01 / Blank

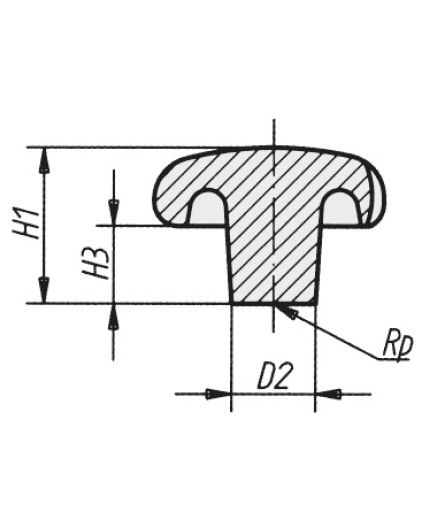

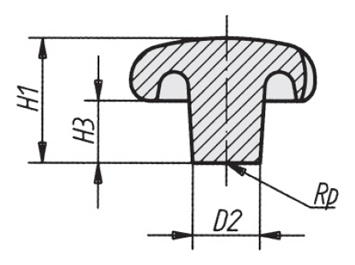

Schéma 2 + Knob BRF in cast iron
REF DESIGNATION D1 d D6 H1 H3 T1 T2 T4 Wgt. (g) 3D Quote
9387 KNOB BRF CAST IRON D.32 32 M6 6,4 20 10 15 12 10 49/55
9388 KNOB BRFCAST IRON D.40 40 M8 8,4 25 13 18 15 12 72/82
9389 KNOB BRF CAST IRON D.50 50 M10 10,5 32 17 21 18 16 130/150
9390 KNOB BRF CAST IRON D.63 63 M12 13 40 21 25 22 20 220/260
9391 KNOB BRF CAST IRON D.80 80 M16 17 50 25 32 28 30 440/510

02 / Through hole partly threated

Schéma 3 + Knob BRF in cast iron
REF DESIGNATION D1 d D6 H1 H3 T1 T2 T4 Wgt. (g) 3D Quote
9402 KNOB BRF CAST IRON D.32 THROUGH HOLE M6 32 M6 6,4 20 10 15 12 10 49/55
9403 KNOB BRF CAST IRON D.40 THROUGH HOLE M8 40 M8 8,4 25 13 18 15 12 72/82
9404 KNOB BRF CAST IRON D.50 THROUGH HOLE M10 50 M10 10,5 32 17 21 18 16 130/150
9405 KNOB BRF CAST IRON D.63 THROUGH HOLE M12 63 M12 13 40 21 25 22 20 220/260
9406 KNOB BRF CAST IRON D.80 THROUGH HOLE M16 80 M16 17 50 25 32 28 30 440/510

03 / Threated blind hole

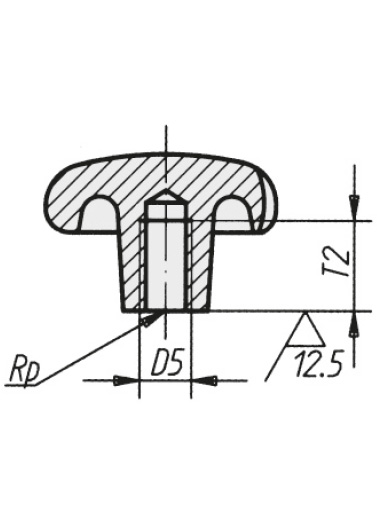

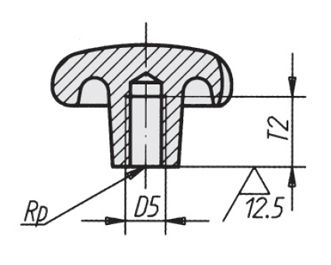

Schéma 4 + Knob BRF in cast iron
REF DESIGNATION D1 d D6 H1 H3 T1 T2 T4 Wgt. (g) 3D Quote
9414 KNOB BRF CAST IRON D.32 M6 32 M6 6,4 20 10 15 12 10 49/55
9415 KNOB BRF CAST IRON D.40 M8 40 M8 8,4 25 13 18 15 12 72/82
9416 KNOB BRF CAST IRON D.50 M10 50 M10 10,5 32 17 21 18 16 130/150
9417 KNOB BRF CAST IRON D.63 M12 63 M12 13 40 21 25 22 20 220/260
