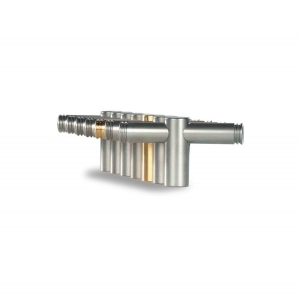

Knob GTX

in full stainless steel

Knob GT

in composite plastic

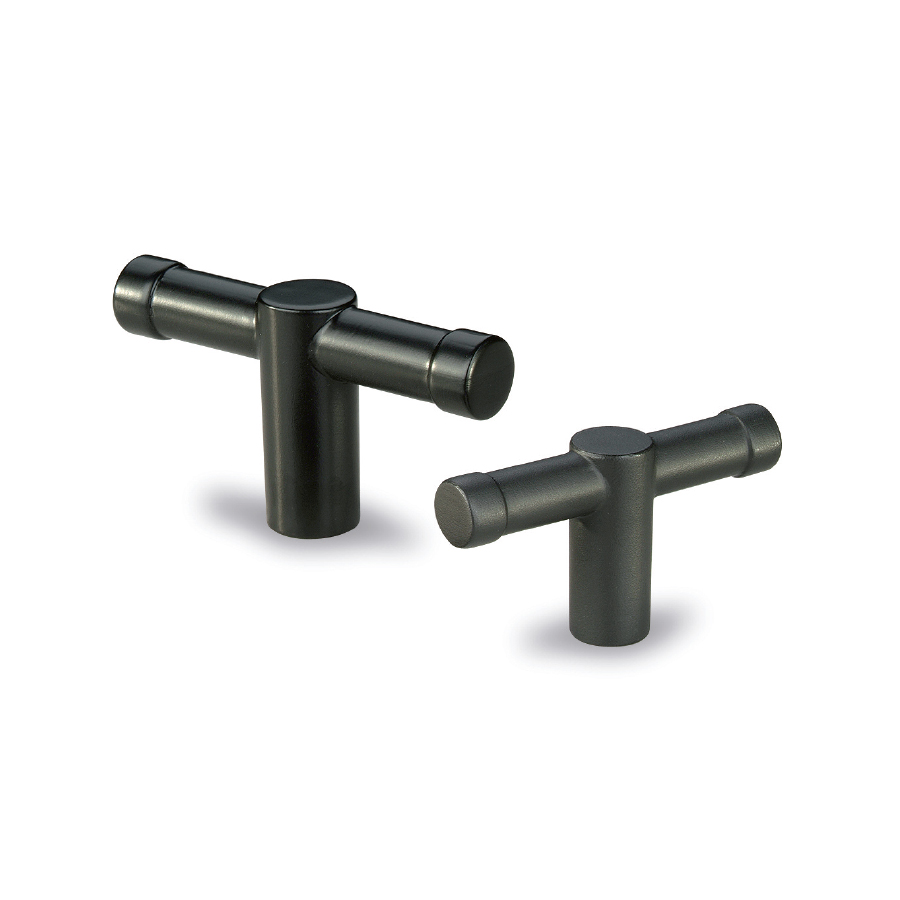

T- handles and wing knobs : Knob GT in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Knob in high resistance polyamide reinforced with glass fibres, black matt, with female insert and stud in zinc plated steel.1614

AVAILABLE VERSIONS

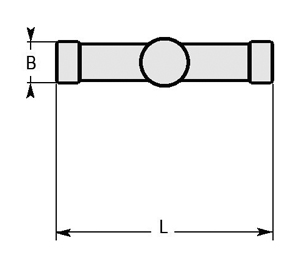

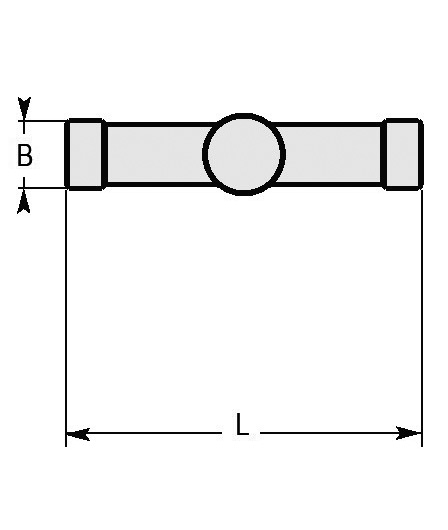

Schéma 1 + Knob GT in composite plastic

01 / Female insert

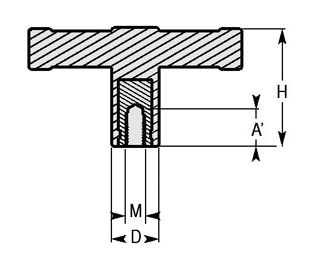

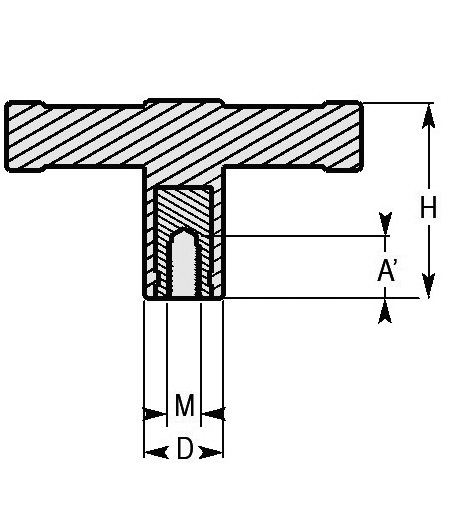

Schéma 2 + Knob GT in composite plastic
REF DESIGNATION L M B D F H A' Wgt. (g) 3D Quote
16142 KNOB GT POLYA. L.70 STEEL INS M6 70 M6 12 15 25 39 9 22
16143 KNOB GT POLYA. L.90 STEEL INS M8 90 M8 16 19 33 50 14 51
16144 KNOB GT POLYA. L.90 STEEL INS M10 90 M10 16 19 33 50 18 59

02 / With stud

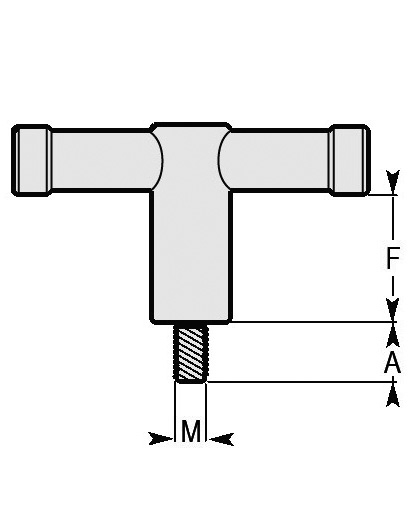

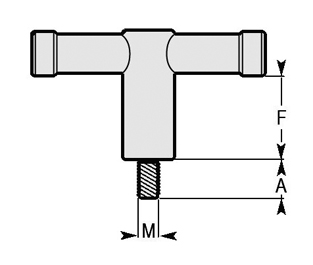

Schéma 3 + Knob GT in composite plastic
REF DESIGNATION L M B D F H A Wgt. (g) 3D Quote
16294 KNOB GT POLYA. L.70 STEEL STUD M6*15 70 M6 12 15 25 39 15 22
16121 KNOB GT POLYA. L.90 STEEL STUD M8*20 90 M8 16 19 33 50 20 23
16131 KNOB GT POLYA. L.90 STEEL STUD M10*20 90 M10 16 19 33 50 20 24
