Clamping knobs and handles

Star knobs and grips

Knob PN

in composite plastic

Star knobs and grips : Knob PN in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

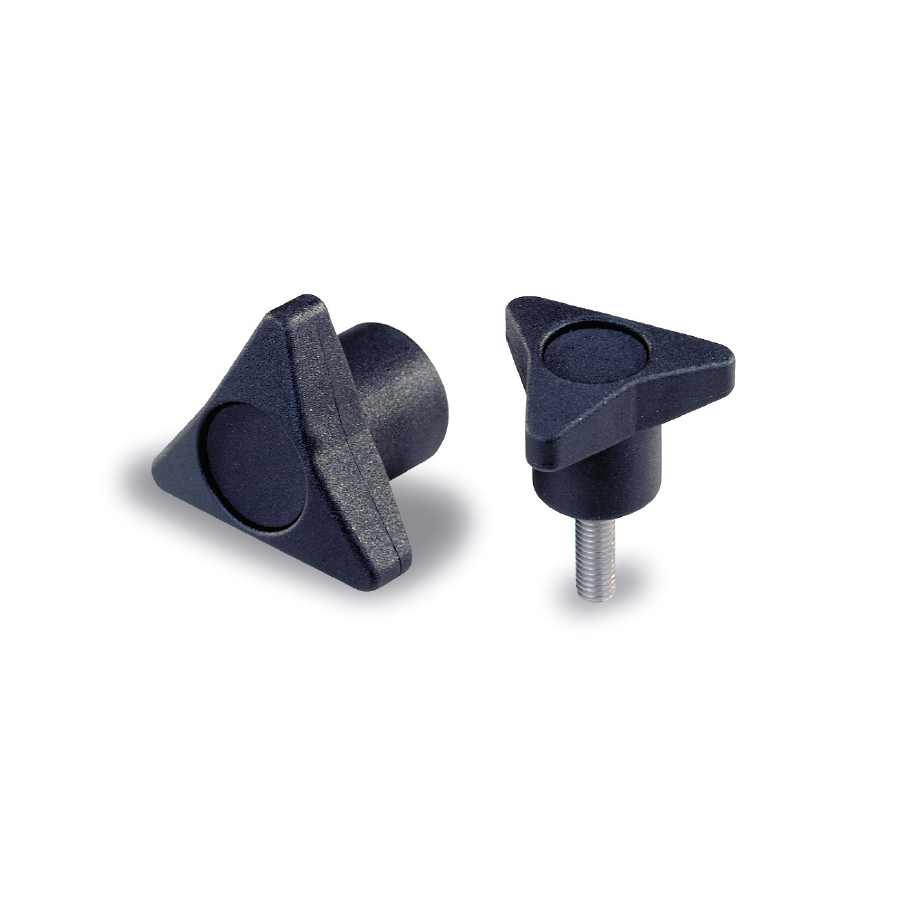

Knob in high resistance polyamide reinforced with glass fibres, black matt, with female insert and stud in zinc plated steel.

AVAILABLE VERSIONS

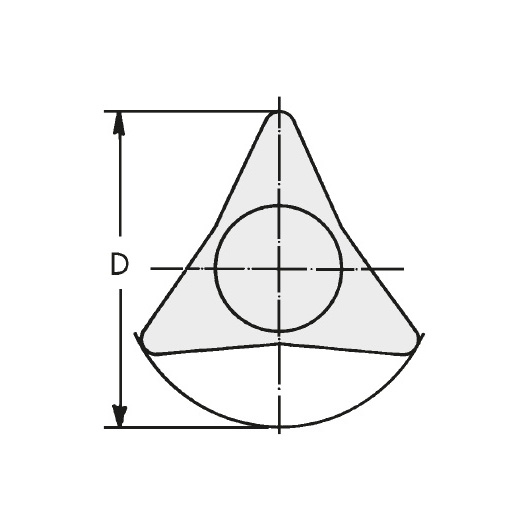

Schéma 1 + Knob PN in composite plastic

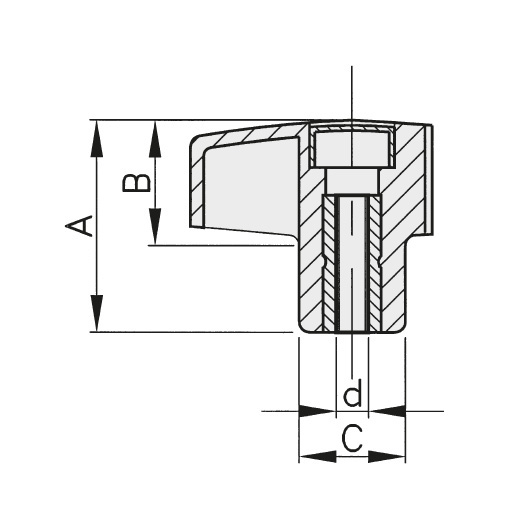

01 / Female insert

Schéma 2 + Knob PN in composite plastic
REF DESIGNATION D d A B C Wgt. (g) 3D Quote
6710 KNOB PN POLYA. D.40 STEEL INS M6 40 M6 24 10 18,5 15
6711 KNOB PN POLYA. D.40 STEEL INS M8 40 M8 24 10 18,5 15
6732 KNOB PN POLYA. D.50 STEEL INS M10 50 M10 32 14 23 22
6751 KNOB PN POLYA. D.63 STEEL INS M10 63 M10 40 22 25 26

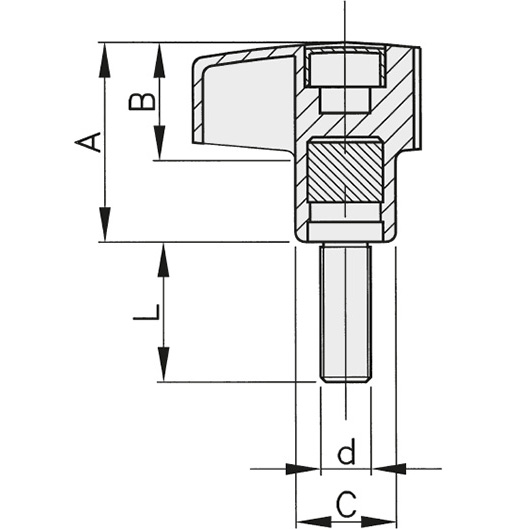

02 / With stud

Schéma 3 + Knob PN in composite plastic
REF DESIGNATION D d A B C Wgt. (g) 3D Quote
670120 KNOB PN POLYA. D.40 STEEL STUD M8*20 40 M8 24 10 18,5 30
670130 KNOB PN POLYA. D.40 STEEL STUD M8*30 40 M8 24 10 18,5 30
670140 KNOB PN POLYA. D.40 STEEL STUD M8*40 40 M8 24 10 18,5 30
670150 KNOB PN POLYA. D.40 STEEL STUD M8*50 40 M8 24 10 18,5 30
672120 KNOB PN POLYA. D.50 STEEL STUD M8*20 50 M8 32 14 18,5 32
672130 KNOB PN POLYA. D.50 STEEL STUD M8*30 50 M8 32 14 18,5 32
672220 KNOB PN POLYA. D.50 STEEL STUD M10*20 50 M10 32 14 23 35
672230 KNOB PN POLYA. D.50 STEEL STUD M10*30 50 M10 32 14 23 35
672240 KNOB PN POLYA. D.50 STEEL STUD M10*40 50 M10 32 14 23 35
672250 KNOB PN POLYA. D.50 STEEL STUD M10*50 50 M10 32 14 23 35
674230 KNOB PN POLYA. D.63 STEEL STUD M12*30 63 M12 40 22 25 48
674240 KNOB PN POLYA. D.63 STEEL STUD M12*40 63 M12 40 22 25 48
