Knob TZ

in composite plastic

T- handles and wing knobs : Knob TZ in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

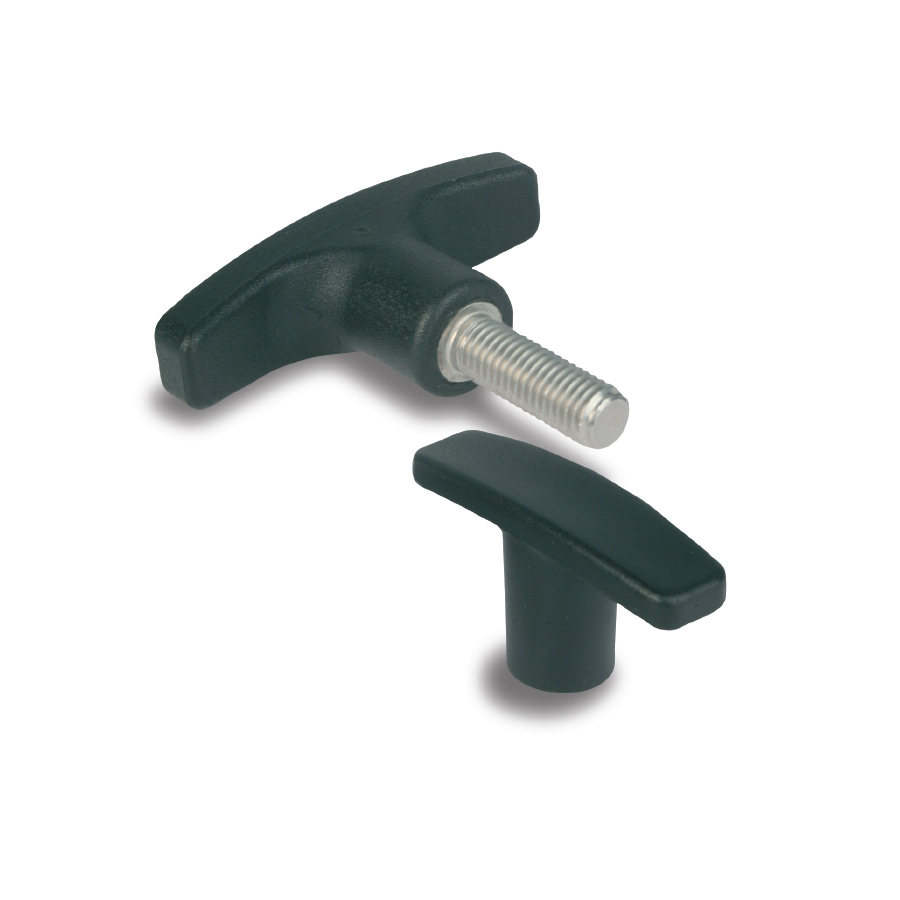

Handle in fibre glass reinforced polyamide, black matt. Female insert in brass and stud in zinc plated steel.

AVAILABLE VERSIONS

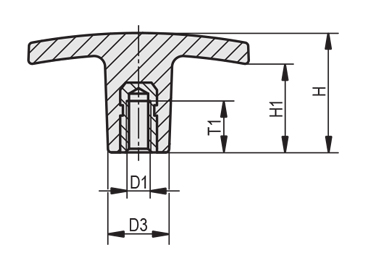

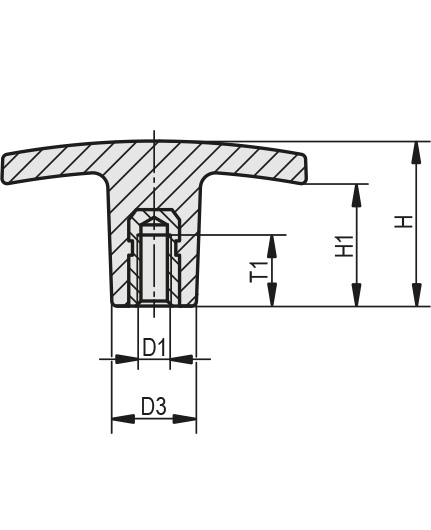

01 / Female insert

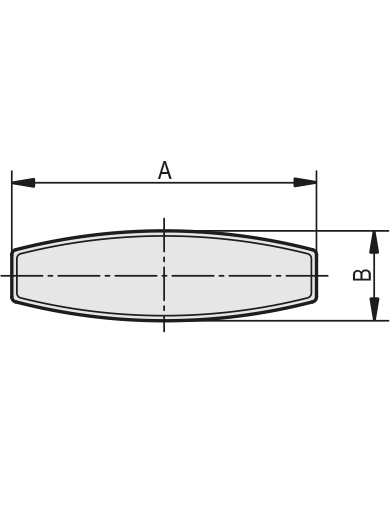

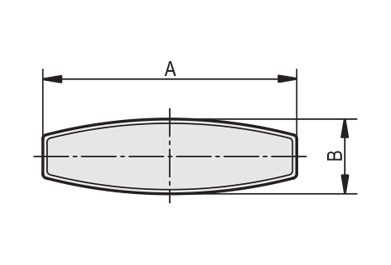

REF DESIGNATION A D1 B D3 H2 H1 T1 3D Quote
15620 HANDLE TZ L.40 BRASS INS M5 40 M5 13 13 30,5 20 10
15621 HANDLE TZ L.50 BRASS INS M5 50 M5 15 14 24 16 10
15622 HANDLE TZ L.60 BRASS INS M6 60 M6 17 16 31,5 23 12
15623 HANDLE TZ L.71 BRASS INS M8 71 M8 19,5 20 36 19 20
15624 HANDLE TZ L.71 BRASS INS M10 71 M10 19,5 20 36 19 20
15625 HANDLE TZ L.80 BRASS INS M10 80 M10 26 26 39,5 26 25
15626 HANDLE TZ L.80 BRASS INS M12 80 M12 26 26 39,5 26 25

02 / With stud

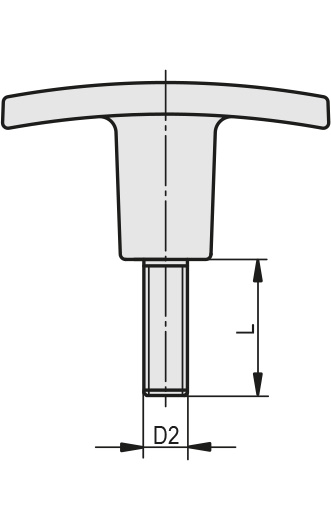

REF DESIGNATION A D2 B D3 H H1 L 3D Quote
15630 HANDLE TZ L.40 STEEL STUD M5*15 40 M5 13 13 30,5 20 15
15631 HANDLE TZ L.50 STEEL STUD M5*15 50 M5 15 14 24 16 15
15632 HANDLE TZ L.60 STEEL STUD M6*20 60 M6 17 16 31,5 23 20
15633 HANDLE TZ L.71 STEEL STUD M8*20 71 M8 19,5 20 36 19 20
15634 HANDLE TZ L.71 STEEL STUD M10*20 71 M10 19,5 20 36 19 20
15635 HANDLE TZ L.80 STEEL STUD M10*30 80 M10 26 26 39,5 26 30
15636 HANDLE TZ L.80 STEEL STUD M12*40 80 M12 26 26 39,5 26 40
