Handle MD

in steel

Folding handles : Handle MD in steel
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

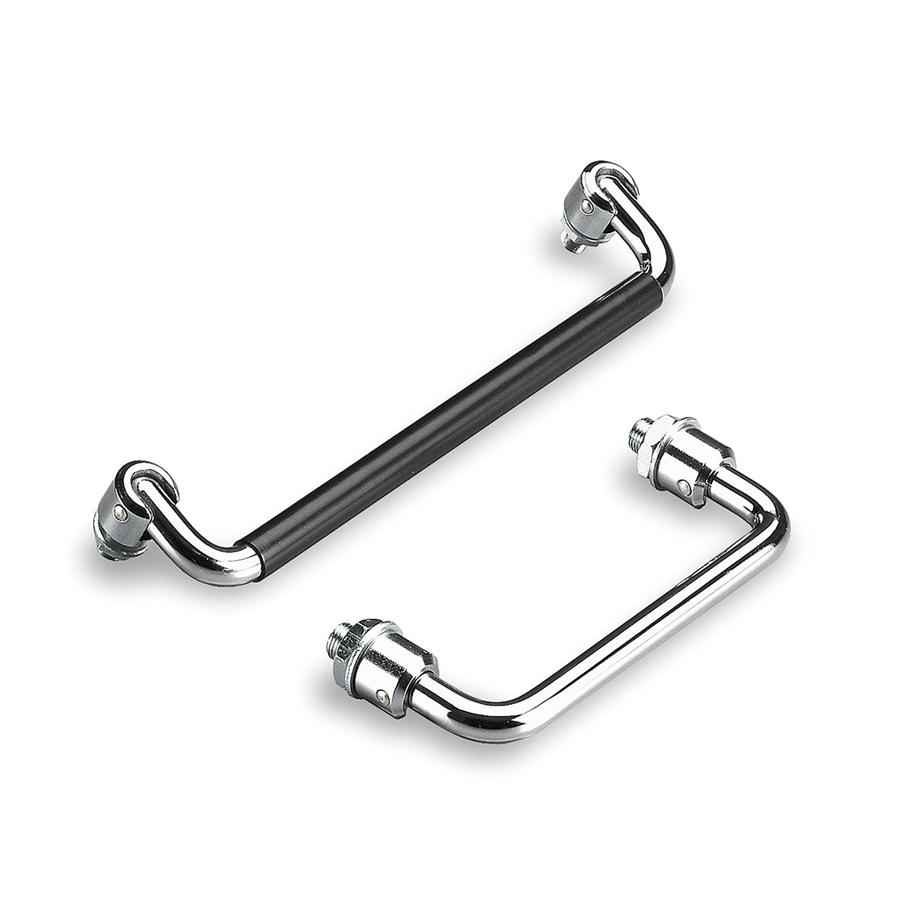

Collapsible handle made of round steel bar, precision ground and chromium plated mirror finish.  Locking in both working and resting positions. Handle supplied with galvanized washers and nuts. Stress resistance minimum 800 N.

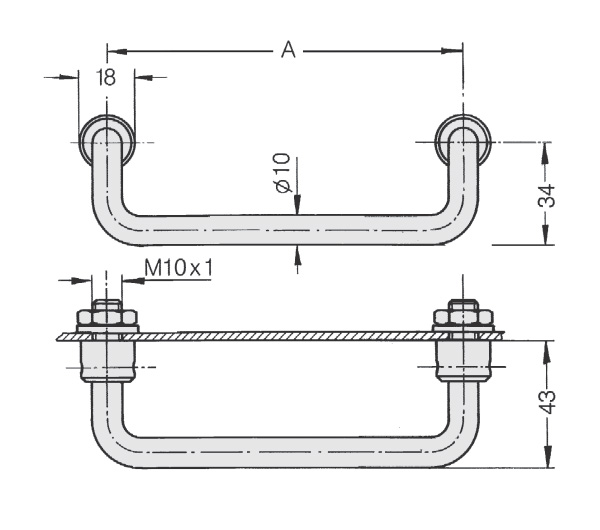

REF DESIGNATION A FIXATION Wgt. (g) 3D Quote
10119 HANDLE MD STEEL 100MM M10 COLLAPS. 100 M10 136
10120 HANDLE MD STEEL 120MM M10 COLLAPS. 120 M10 160
10121 HANDLE MD STEEL 180MM M10 COLLAPS. 180 M10 215
10122 HANDLE MD STEEL 100MM M10 COLLAPS. COVER 100 M10 136
10123 HANDLE MD STEEL 120MM M10 COLLAPS. COVER 120 M10 160
10124 HANDLE MD STEEL 180MM M10 COLLAPS. COVER 180 M10 215
