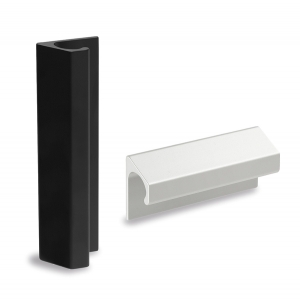

Handle U4

in aluminium

Handle PR

in aluminium

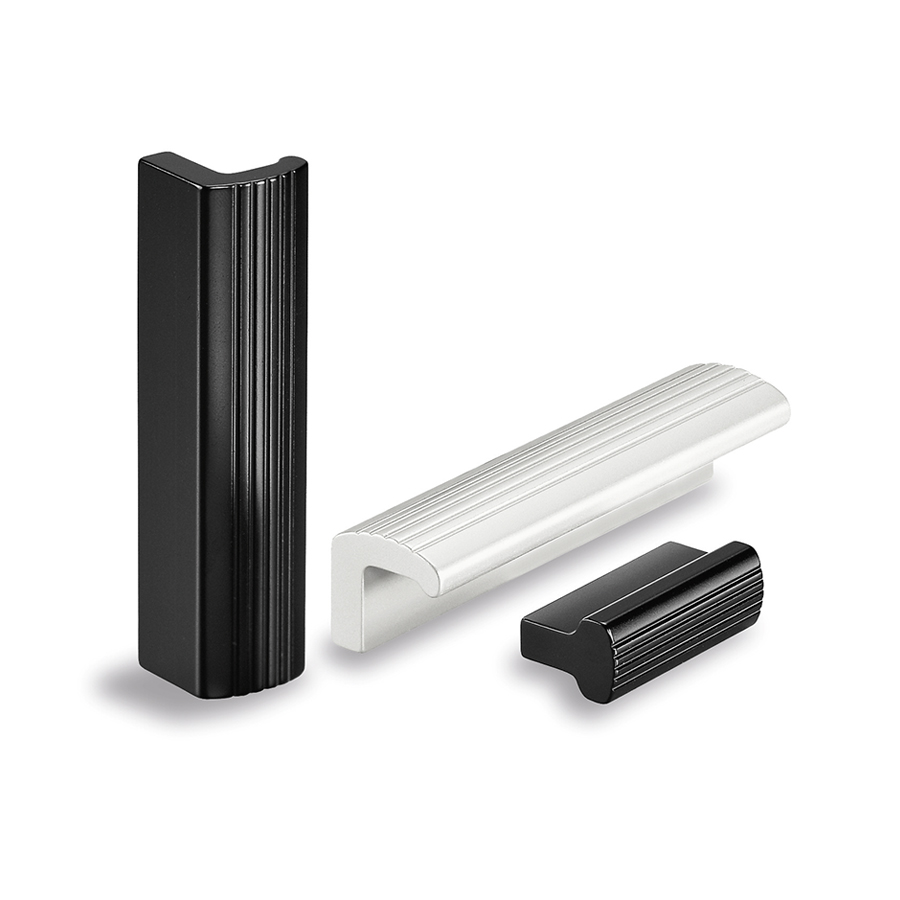

Ledge handles : Handle PR in aluminium
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Ledge handle made of profiled aluminium Al Mg Si 0.5, vibration ground, anodized and matt finish. Stress resistance minimum 200 N.

AVAILABLE VERSIONS

01 / Width 16mm

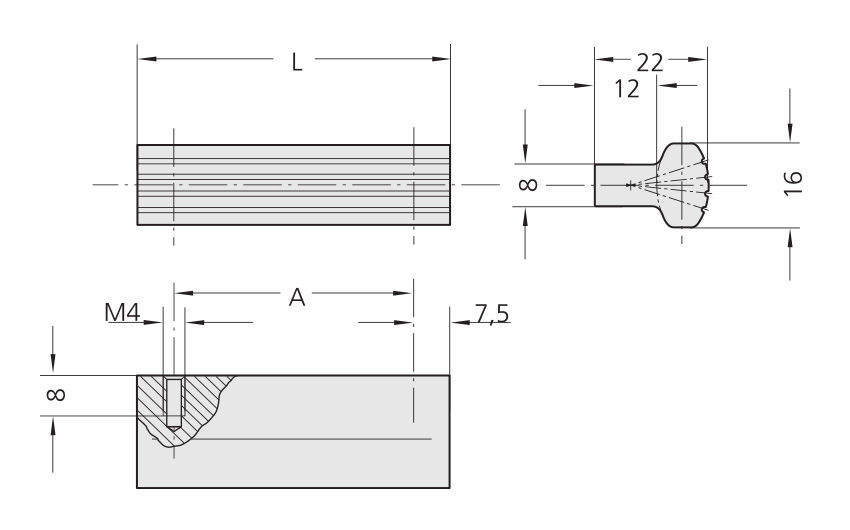

Schéma 1 + Handle PR in aluminium
REF DESIGNATION A L M Wgt. (g) 3D Quote
10782 HANDLE PR ALU 30MM M4 30 45 M4 27
10783 HANDLE PR ALU 45MM M4 45 60 M4 36
10784 HANDLE PR ALU 70MM M4 70 85 M4 54
10785 HANDLE PR ALU 90MM M4 90 105 M4 63
10786 HANDLE PR ALU 105MM M4 105 120 M4 72
10787 HANDLE PR ALU 120MM M4 120 135 M4 81
10782N HANDLE PR ALU 30MM M4 BLACK 30 45 M4 27
10783N HANDLE PR ALU 45MM M4 BLACK 45 60 M4 36
10784N HANDLE PR ALU 70MM M4 BLACK 70 85 M4 54
10785N HANDLE PR ALU 90MM M4 BLACK 90 105 M4 63
10786N HANDLE PR ALU 105MM M4 BLACK 105 120 M4 72
10787N HANDLE PR ALU 120MM M4 BLACK 120 135 M4 81

02 / Width 20mm

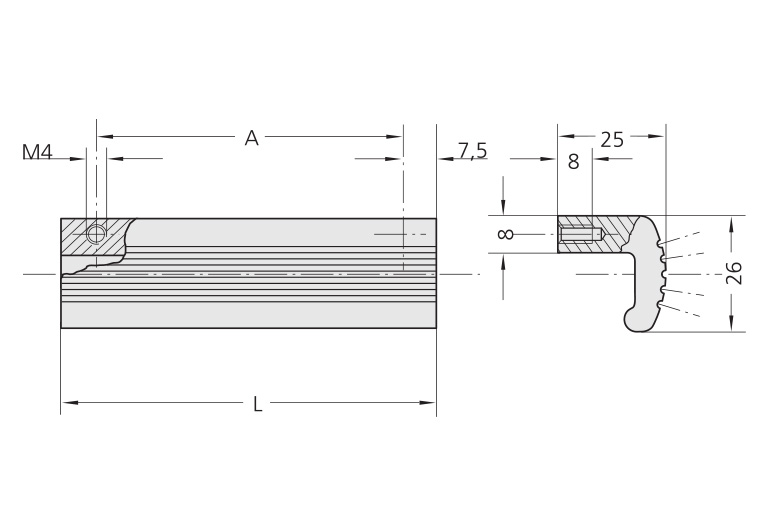

Schéma 2 + Handle PR in aluminium
REF DESIGNATION A L M Wgt. (g) 3D Quote
10788 HANDLE PR ALU 30MM M4 30 45 M4 34
10789 HANDLE PR ALU 45MM M4 45 60 M4 46
10790 HANDLE PR ALU 70MM M4 70 85 M4 64
10791 HANDLE PR ALU 90MM M4 90 105 M4 79
10792 HANDLE PR ALU 105MM M4 105 120 M4 91
10793 HANDLE PR ALU 120MM M4 120 135 M4 102
10788N HANDLE PR ALU 30MM M4 BLACK 30 45 M4 34
10789N HANDLE PR ALU 45MM M4 BLACK 45 60 M4 46
10790N HANDLE PR ALU 70MM M4 BLACK 70 85 M4 64
10791N HANDLE PR ALU 90MM M4 BLACK 90 105 M4 79
10792N HANDLE PR ALU 105MM M4 BLACK 105 120 M4 91
10793N HANDLE PR ALU 120MM M4 BLACK 120 135 M4 102
