Knob AA

in composit plastic

135° Celsius
-40° Celsius

3D visualisation

Technical specifications

Add to favourites

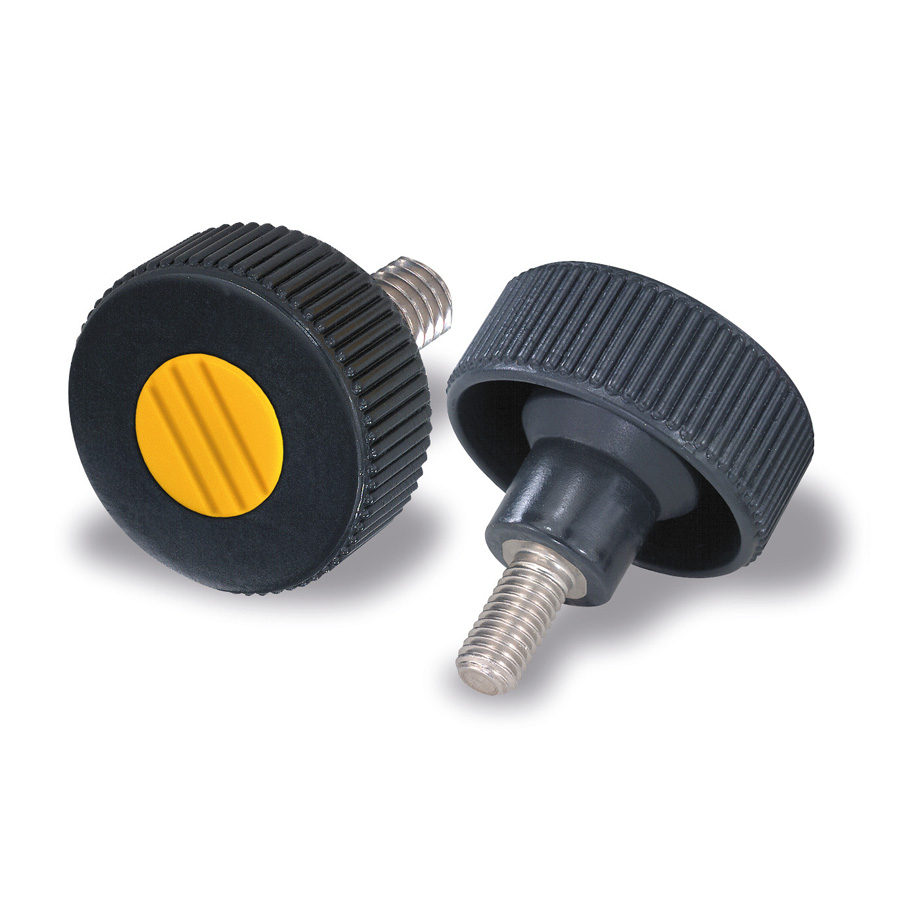

Knob made of glass fibre reinforced polyamide, anthracite grey, with insert in zinc plated steel. Caps available in light grey RAL 7035, yellow RAL 1021 and red RAL 3020.

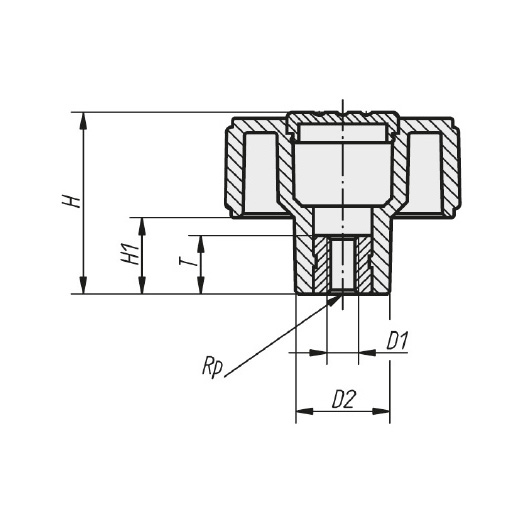

01 / Female insert

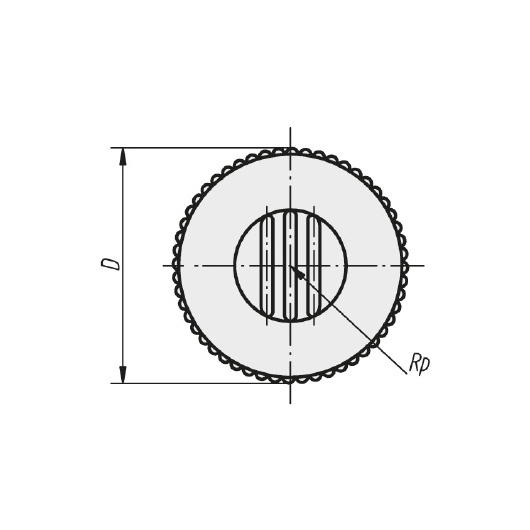

REF	DESIGNATION	D	D1	D2	H	H1	T
9733	KNOB AA POLYA D40 STEEL INS THROUGH M5	40	M5	16,5	31	13	10
9734	KNOB AA POLYA D40 STEEL INS THROUGH M6	40	M6	16,5	31	13	10
9735	KNOB AA POLYA D40 STEEL INS THROUGH M8	40	M8	16,5	31	13	14
9736	KNOB AA POLYA. D.50 TRHOUGH INS STEEL M8	50	M8	18	36	15	14
9737	KNOB AA POLYA. D.50 TRHOUGH INS STEEL M10	50	M10	18	36	15	14
9738	KNOB AA POLYA. D.63 TRHOUGH INS STEEL M10	63	M10	22	41	17	14
9739	KNOB AA POLYA. D.63 TRHOUGH INS STEEL M12	63	M12	22	41	17	18

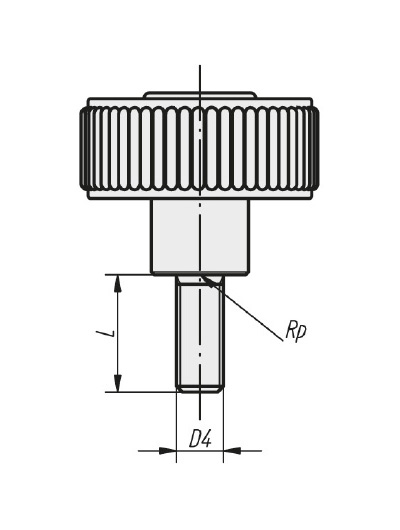

02 / With stud

REF	DESIGNATION	D	D4	L
974010	KNOB AA POLYA D40 STEEL STUD M5*10	40	M5	10
974020	KNOB AA POLYA. D.40 STEEL STUD M5*20	40	M5	20
974040	KNOB AA POLYA. D.40 STEEL STUD M5*40	40	M5	40
974110	KNOB AA POLYA. D.40 STEEL STUD M6*10	40	M6	10
974120	KNOB AA POLYA. D.40 STEEL STUD M6*20	40	M6	20
974140	KNOB AA POLYA. D.40 STEEL STUD M6*40	40	M6	40
974215	KNOB AA POLYA. D.40 STEEL STUD M8*15	40	M8	15
974360	KNOB AA POLYA. D.50 STEEL STUD M8*60	50	M8	60
974520	KNOB AA POLYA. D.63 STEEL STUD M10*20	63	M10	20
974560	KNOB AA POLYA. D.63 STEEL STUD M10*60	63	M10	60
974660	KNOB AA POLYA. D.63 STEEL STUD M12*60	63	M12	60
974230	KNOB AA POLYA. D.40 STEEL STUD M8*30	40	M8	30
974420	KNOB AA POLYA. D.50 STEEL STUD M10*20	50	M10	20
974530	KNOB AA POLYA. D.63 STEEL STUD M10*30	63	M10	30
974630	KNOB AA POLYA. D.63 STEEL STUD M12*30	63	M12	30
974260	KNOB AA POLYA. D.40 STEEL STUD M8*60	40	M8	60
974430	KNOB AA POLYA. D.50 STEEL STUD M10*30	50	M10	30
974315	KNOB AA POLYA. D.50 STEEL STUD M8*15	50	M8	15
974460	KNOB AA POLYA. D.50 STEEL STUD M10*60	50	M10	60
974330	KNOB AA POLYA. D.50 STEEL STUD M8*30	50	M8	30
