Knob GD

in composite plastic

Knurled knobs and handles : Knob GD in composite plastic
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites

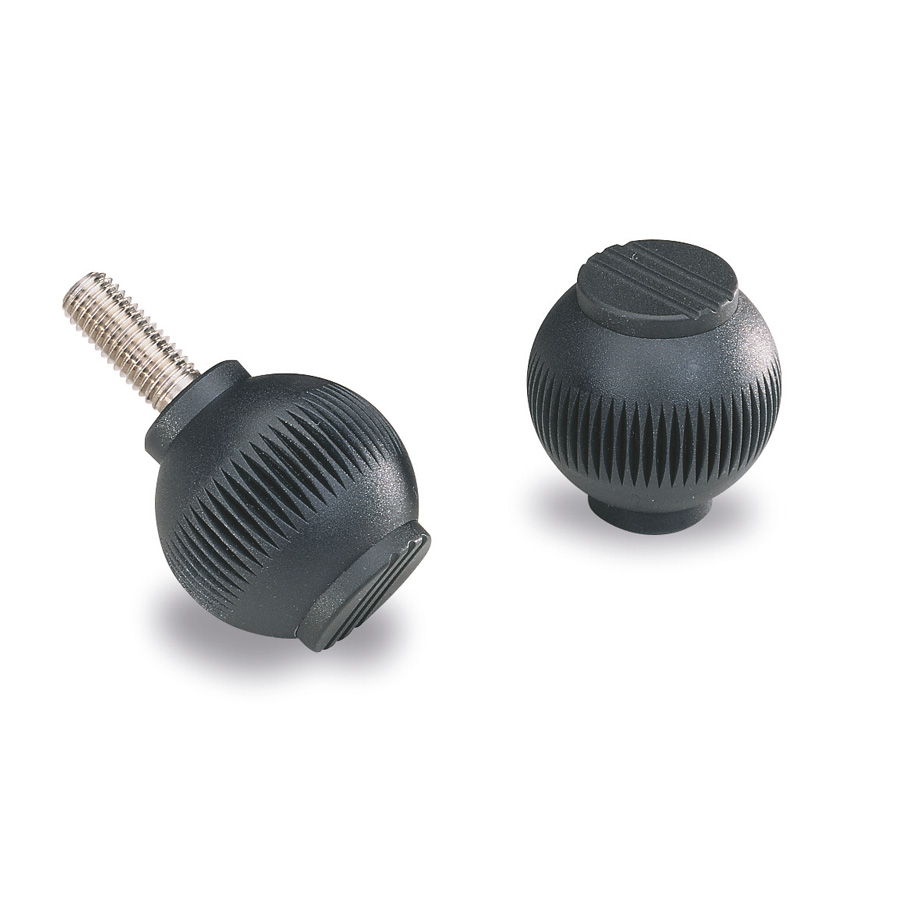

Knob in high resistance polyamide reinforced with glass fibres, anthracite grey matt, with female insert and stud in zinc plated steel. Also available in stainless steel version. Caps available in light grey RAL 7035, yellow RAL 1021 and red RAL 3020.

AVAILABLE VERSIONS

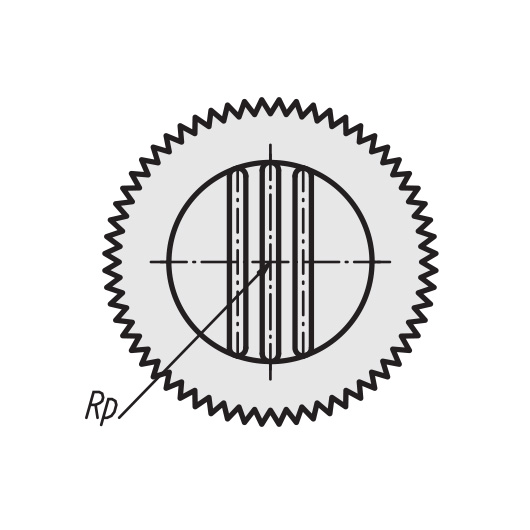

Schéma 1 + Knob GD in composite plastic

01 / Female insert

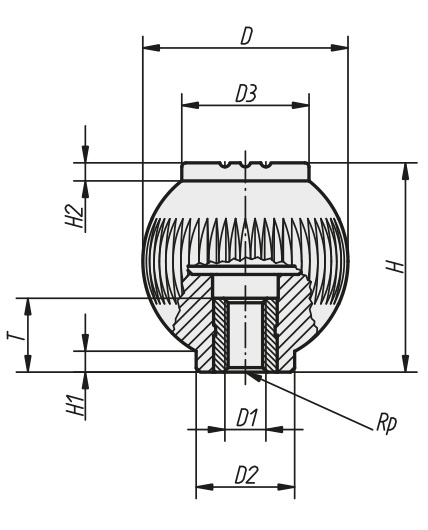

Schéma 2 + Knob GD in composite plastic
REF DESIGNATION D D1 D2 D3 H H1 H2 T Wgt. (g) 3D Quote
8310 KNOB GD POLYA. D.25 STEEL INS M6 25 M6 12 17 25 2,5 2,2 10 15
8311 KNOB GD POLYA. D.32 STEEL INS M8 32 M8 15,5 19 33 3,2 2,8 14 20
8312 KNOB GD POLYA. D.40 STEEL INS M10 40 M10 19 23 41,5 4 3,5 14 45
8313 KNOB GD POLYA. D.50 STEEL INS M10 50 M10 24 31 51 5 4,4 14 80
8314 KNOB GD POLYA. D.50 STEEL INS M12 50 M12 24 31 51 5 4,4 18 85

02 / With stud

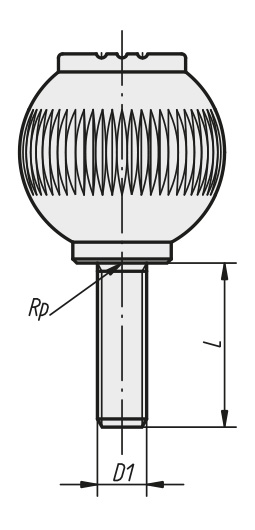

Schéma 3 + Knob GD in composite plastic
REF DESIGNATION D D1 D2 D3 H H1 H2 L Wgt. (g) 3D Quote
832015 KNOB GD POLYA. D.25 STEEL STUD M6*15 25 M6 12 17 25 2,5 2,2 15 20
832020 KNOB GD POLYA. D.25 STEEL STUD M6*20 25 M6 12 17 25 2,5 2,2 20 20
832025 KNOB GD POLYA. D.25 STEEL STUD M6*25 25 M6 12 17 25 2,5 2,2 25 20
832030 KNOB GD POLYA. D.25 STEEL STUD M6*30 25 M6 12 17 25 2,5 2,2 30 20
832120 KNOB GD POLYA. D.32 STEEL STUD M8*20 32 M8 15,5 19 33 3,2 2,8 20 25
832220 KNOB GD POLYA. D.40 STEEL STUD M10*20 40 M10 19 23 41,5 4 3,5 20 50
832320 KNOB GD POLYA. D.50 STEEL STUD M10*20 50 M10 24 31 51 5 4,4 20 85
832340 KNOB GD POLYA. D.50 STEEL STUD M10*40 50 M10 24 31 51 5 4,4 40 85
832430 KNOB GD POLYA. D.50 STEEL STUD M12*30 50 M12 24 31 51 5 4,4 30 95
832440 KNOB GD POLYA. D.50 STEEL STUD M12*40 50 M12 24 31 51 5 4,4 40 95
832125 KNOB GD POLYA. D.32 STEEL STUD M8*25 32 M8 15,5 19 33 3,2 2,8 25 25
832230 KNOB GD POLYA. D.40 STEEL STUD M10*30 40 M10 19 23 41,5 4 3,5 30 50
832330 KNOB GD POLYA. D.50 STEEL STUD M10*30 50 M10 24 31 51 5 4,4 30 85
832420 KNOB GD POLYA. D.50 STEEL STUD M12*20 50 M12 24 31 51 5 4,4 20 95
832130 KNOB GD POLYA. D.32 STEEL STUD M8*30 32 M8 15,5 19 33 3,2 2,8 30 25
832240 KNOB GD POLYA. D.40 STEEL STUD M10*40 40 M10 19 23 41,5 4 3,5 40 50
832140 KNOB GD POLYA. D.32 STEEL STUD M8*40 32 M8 15,5 19 33 3,2 2,8 40 25
