Indexing plungers and spring plungers

Indexing plungers
Available variations

Index plunger

stud only

Index plunger

without head-knob

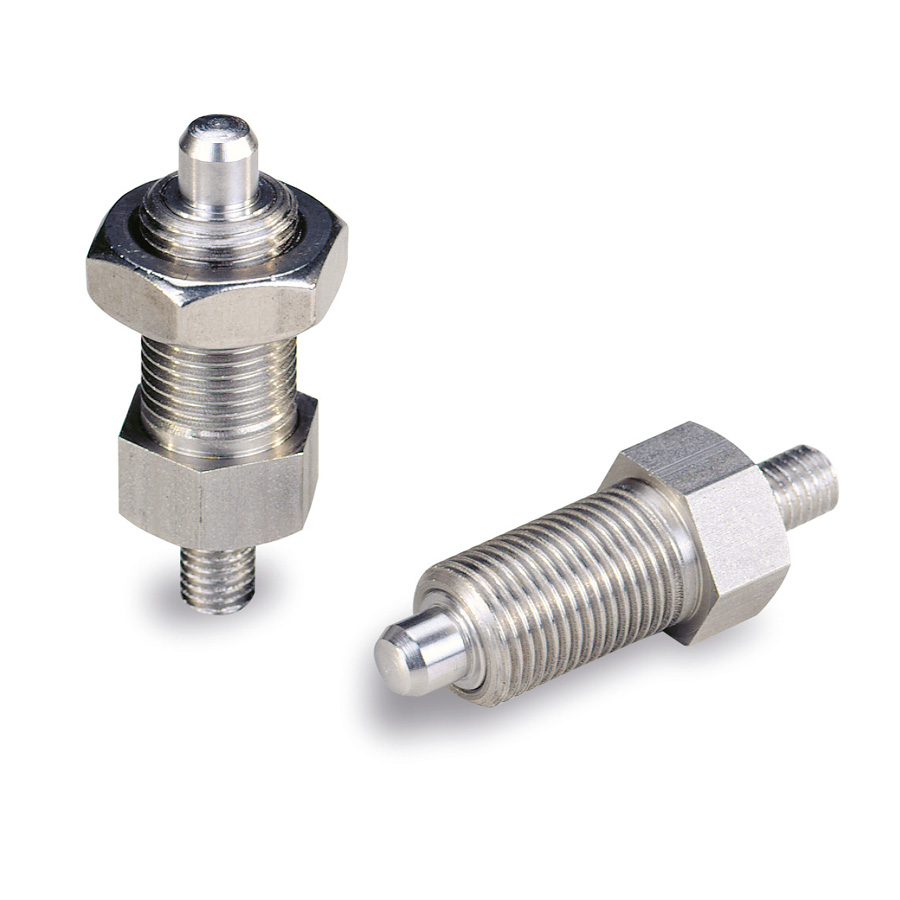

Indexing plungers : Index plunger without head-knob
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Steel version : plunger in steel 5.8, black oxide finish. Locking pin hardened and ground. Stainless steel version : plunger in stainless steel 1.4305 and locking pin in hardened stainless steel 1.4034 ground.

AVAILABLE VERSIONS

01 / Without locknut

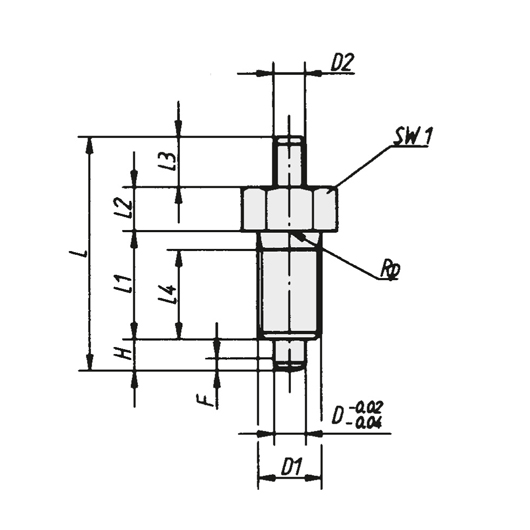

Schéma 1 + Index plunger without head-knob
REF DESIGNATION D1 D D2 Fx30 H L L1 L2 L3 L4 RES_FIN RES_INI SW1 SW2 3D Quote
8529 INDEX PLUNGER HEADLESS STEEL M10 PIN M4 M10x1,0 5 M4 1,3 5 37 17 7 8 15 12 5 13 17
8530 INDEX PLUNGER HEADLESS STEEL M12 PIN M6 M12x1,5 6 M6 1,8 6 42 20 8 8 17 14 6 14 19
8531 INDEX PLUNGER HEADLESS STEEL M16 PIN M8 M16x1,5 8 M8 2,3 8 56 26 10 12 23 35 15 19 24
8532 INDEX PLUNGER HEADLESS STEEL M20 PIN M8 M20x1,5 10 M8 2,8 10 62 28 12 12 25 40 20 22 30
8529i INDEX PLUNGER HEADLESS STAINL. M10 PIN M4 M10x1,0 5 M4 1,3 5 37 17 7 8 15 12 5 13 17
8530i INDEX PLUNGER HEADLESS STAINL. M12 PIN M6 M12x1,5 6 M6 1,8 6 42 20 8 8 17 14 6 14 19
8531i INDEX PLUNGER HEADLESS STAINL. M16 PIN M8 M16x1,5 8 M8 2,3 8 56 26 10 12 23 35 15 19 24
8532i INDEX PLUNGER HEADLESS STAINL. M20 PIN M8 M20x1,5 10 M8 2,8 10 62 28 12 12 25 40 20 22 30

02 / With locknut

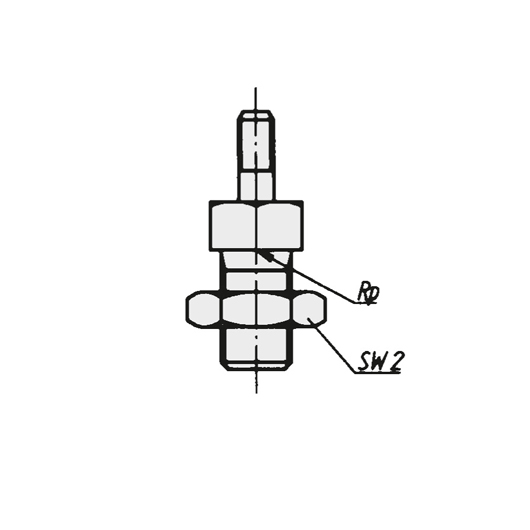

Schéma 2 + Index plunger without head-knob
REF DESIGNATION D1 D D2 Fx30 H L L1 L2 L3 L4 M RES_FIN RES_INI SW1 SW2 3D Quote
8533 INDEX PLUNGER HEADLESS STEEL M10 PIN LOCKNUT M10x1,0 5 M4 1,3 5 37 17 7 8 15 5 12 5 13 17
8534 INDEX PLUNGER HEADLESS STEEL M12 PIN LOCKNUT M12x1,5 6 M6 1,8 6 42 20 8 8 17 6 14 6 14 19
8535 INDEX PLUNGER HEADLESS STEEL M16 PIN LOCKNUT M16x1,5 8 M8 2,3 8 56 26 10 12 23 8 35 15 19 24
8536 INDEX PLUNGER HEADLESS STEEL M20 PIN LOCKNUT M20x1,5 10 M8 2,8 10 62 28 12 12 25 10 40 20 22 30
8533i INDEX PLUNGER HEADLESS STAINL. M10 PIN LOCKNUT M10x1,0 5 M4 1,3 5 37 17 7 8 15 5 12 5 13 17
8534i INDEX PLUNGER HEADLESS STAINL. M12 PIN LOCKNUT M12x1,5 6 M6 1,8 6 42 20 8 8 17 6 14 6 14 19
8535i INDEX PLUNGER HEADLESS STAINL. M16 PIN LOCKNUT M16x1,5 8 M8 2,3 8 56 26 10 12 23 8 35 15 19 24
8536i INDEX PLUNGER HEADLESS STAINL. M20 PIN LOCKNUT M20x1,5 10 M8 2,8 10 62 28 12 12 25 10 40 20 22 30
