Indexing plungers and spring plungers

Spring plungers
Available variations

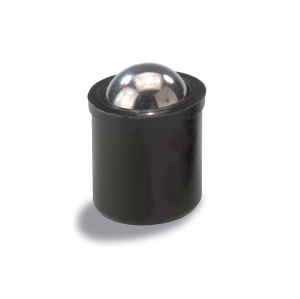

Push-fit spring plunger

plastic version

Push-fit spring plunger

stainless steel version

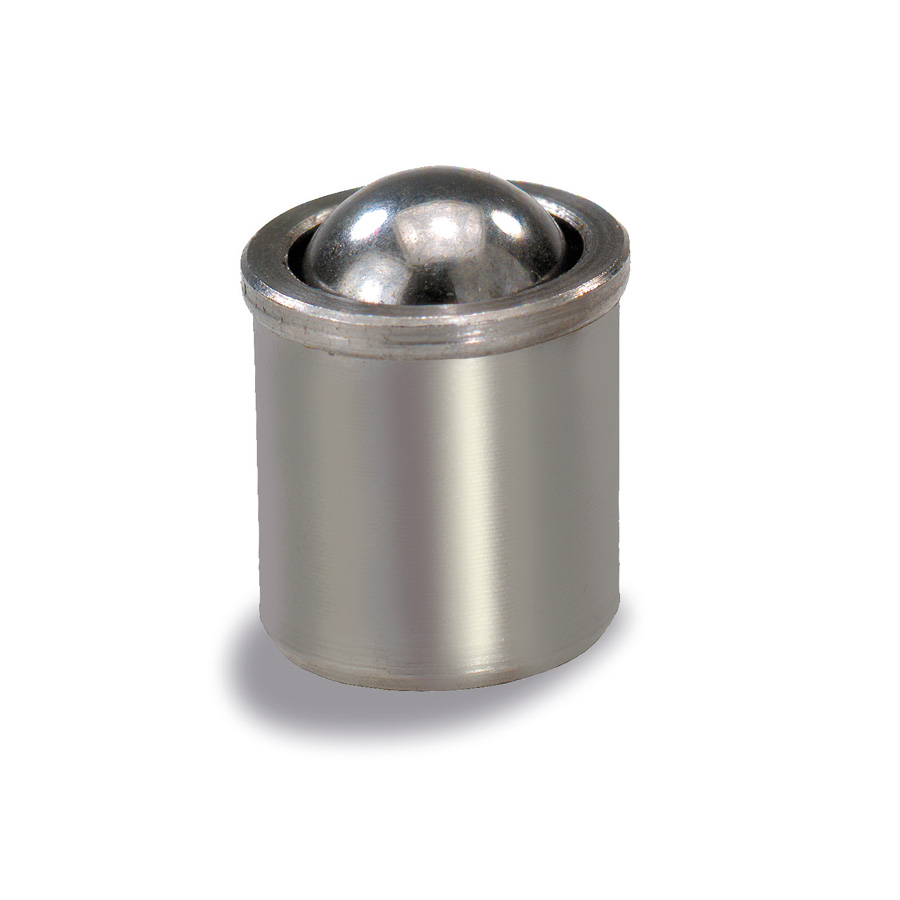

Spring plungers : Push-fit spring plunger stainless steel version
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Socket and spring in stainless steel. Bead in plastic polyacetal (POM) or hardened stainless steel.

01 / With stainless steel bead

REF DESIGNATION D D1 D2 H L L1 RES_F1 RES_F2 3D Quote
8470i SPRING PLUNGER STAINL. D.3 STAINL. BEAD 3 2,5 3,5 0,65 4 0,8 1,7 3,4
8537i SPRING PLUNGER STAINL. D.4 STAINL. BEAD 4 3 4,6 0,8 5 1 3 7
8538i SPRING PLUNGER STAINL. D.5 STAINL. BEAD 5 4 5,6 1 6 1 4 7
8539i SPRING PLUNGER STAINL. D.6 STAINL. BEAD 6 5 6,5 1,5 7 1 6 12
8540i SPRING PLUNGER STAINL. D.8 STAINL. BEAD 8 6,5 8,5 1,8 9 1 6 12
7890i SPRING PLUNGER STAINL. D.10 STAINL. BEAD 10 8 12 2,7 13,5 2,5 10 20
7891i SPRING PLUNGER STAINL. D.12 STAINL. BEAD 12 10 14 3,5 16 2,5 15 25

02 / With plastic bead

REF DESIGNATION D D1 D2 H L L1 RES_F1 RES_F2 3D Quote
8471i SPRING PLUNGER STAINL. D.4 PLAST. BEAD 4 3 4,6 0,5 5 1 3 7
8472i SPRING PLUNGER STAINL. D.5 PLAST. BEAD 5 4 5,6 0,6 6 1 4 7
8473i SPRING PLUNGER STAINL. D.6 PLAST. BEAD 6 5 6,5 1,1 7 1 6 12
8474i SPRING PLUNGER STAINL. D.8 PLAST. BEAD 8 6,5 8,5 1,5 9 1 6 12
8475i SPRING PLUNGER STAINL. D.10 PLAST. BEAD 10 8 12 2,3 13,5 2,5 10 20
8476i SPRING PLUNGER STAINL. D.12 PLAST. BEAD 12 10 14 3,1 16 2,5 15 25
