Indexing plungers and spring plungers

Spring plungers

Spring plunger

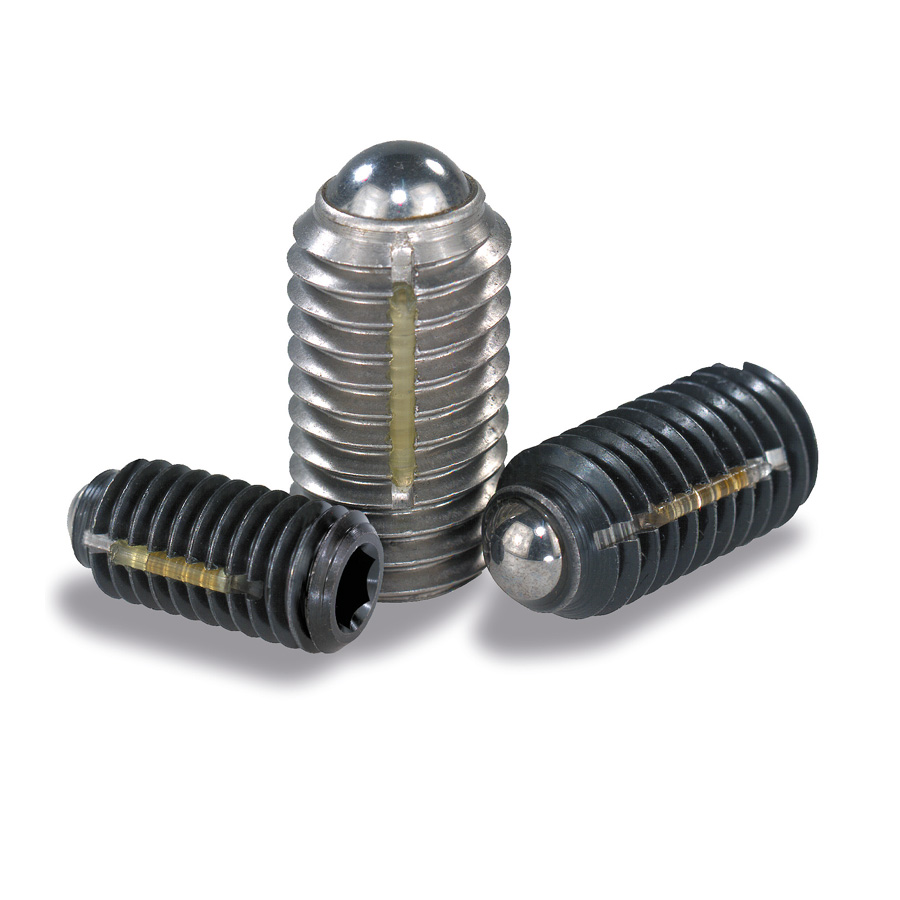

"Long-Lok" secured, bead and hexagonal socket

Spring plungers : Spring plunger
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Steel version : body in steel class 5.8 black oxide finish, ball in hardened steel, spring in spring steel class D. Long-Lok thread lock in nylon. Stainless steel version : body in stainless steel 1.4305, AISI 303, ball in hardened stainless steel 1.4034, spring in spring stainless steel 1.4310. L2 = 2 x thread pitch.

01 / Plunger, regular spring resistance

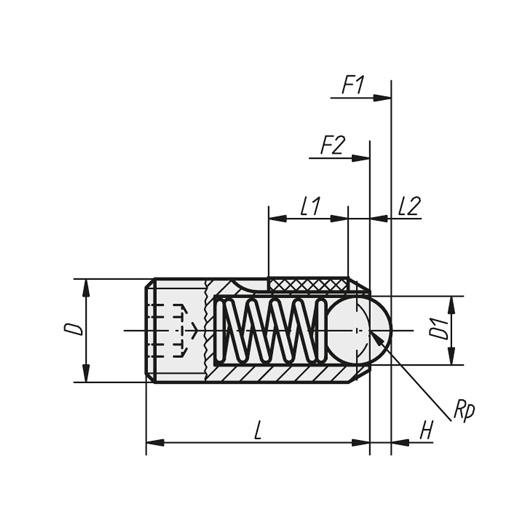

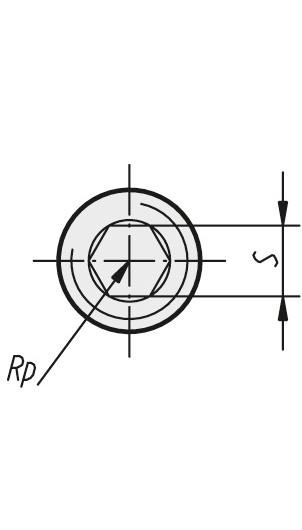

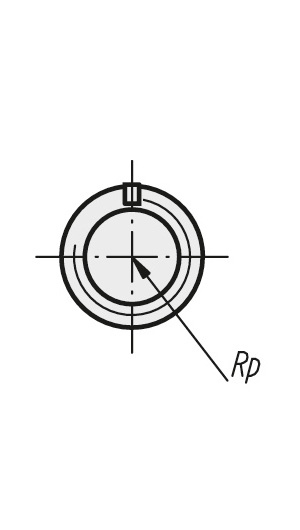

REF DESIGNATION D D1 C_EXTR C_INS H L L1 RES_F1 RES_F2 S 3D Quote
7045 SPRING PLUNGER STEEL M3 LONG LOK BEAD M3 1,5 0,07 0,1 0,4 9 4 1,5 3 1,5
7046 SPRING PLUNGER STEEL M4 LONG LOK BEAD M4 2,5 0,12 0,18 0,8 10 5 4 10 2
7047 SPRING PLUNGER STEEL M5 LONG LOK BEAD M5 3 0,08 0,12 0,9 14 6 6 11 2,5
9794 SPRING PLUNGER STEEL M6 LONG LOK BEAD M6 3,5 0,21 0,44 1 15 7 9 13 3
9795 SPRING PLUNGER STEEL M8 LONG LOK BEAD M8 5 0,38 1,1 1,5 18 8 15 30 4
9796 SPRING PLUNGER STEEL M10 LONG LOK BEAD M10 6 0,6 1,3 2 23 9 20 35 5
9797 SPRING PLUNGER STEEL M12 LONG LOK BEAD M12 8 1,3 2 2,5 26 10 30 55 6
9798 SPRING PLUNGER STEEL M16 LONG LOK BEAD M16 10 3 3,9 3,5 33 14 65 125 8
7045i SPRING PLUNGER STAINL. M3 LONG LOK BEAD M3 1,5 0,07 0,1 0,4 9 4 1,5 3 1,5
7046i SPRING PLUNGER STAINL. M4 LONG LOK BEAD M4 2,5 0,12 0,18 0,8 10 5 4 10 2
7047i SPRING PLUNGER STAINL. M5 LONG LOK BEAD M5 3 0,08 0,12 0,9 14 6 6 11 2,5
9794i SPRING PLUNGER STAINL. M6 LONG LOK BEAD M6 3,5 0,21 0,44 1 15 7 9 13 3
9795i SPRING PLUNGER STAINL. M8 LONG LOK BEAD M8 5 0,38 1,1 1,5 18 8 15 30 4
9796i SPRING PLUNGER STAINL. M10 LONG LOK BEAD M10 6 0,6 1,3 2 23 9 20 35 5
9797i SPRING PLUNGER STAINL. M12 LONG LOK BEAD M12 8 1,3 2 2,5 26 10 30 55 6
9798i SPRING PLUNGER STAINL. M16 LONG LOK BEAD M16 10 3 3,9 3,5 33 14 65 125 8

02 / Plunger, strong spring resistance

REF DESIGNATION D D1 C_EXTR C_INS H L L1 RES_F1 RES_F2 S Wgt. (g) 3D Quote
9799 SPRING PLUNGER STEEL M6 LONG LOK BEAD M6 3,5 0,21 0,44 1 15 7 28 40 3 2
9800 SPRING PLUNGER STEEL M8 LONG LOK BEAD M8 5 0,38 1,1 1,5 18 8 47 73 4 4
9801 SPRING PLUNGER STEEL M10 LONG LOK BEAD M10 6 0,6 1,3 2 23 9 66 100 5 8
9802 SPRING PLUNGER STEEL M12 LONG LOK BEAD M12 8 1,3 2 2,5 26 10 66 120 6 12
9803 SPRING PLUNGER STEEL M16 LONG LOK BEAD M16 10 3 3,9 3,5 33 14 90 180 8 31
9799i SPRING PLUNGER STAINL. M6 LONG LOK BEAD M6 3,5 0,21 0,44 1 15 7 28 40 3 2
9800i SPRING PLUNGER STAINL. M8 LONG LOK BEAD M8 5 0,38 1,1 1,5 18 8 47 73 4 4
9801i SPRING PLUNGER STAINL. M10 LONG LOK BEAD M10 6 0,6 1,3 2 23 9 66 100 5 8
9802i SPRING PLUNGER STAINL. M12 LONG LOK BEAD M12 8 1,3 2 2,5 26 10 66 120 6 12
9803i SPRING PLUNGER STAINL. M16 LONG LOK BEAD M16 10 3 3,9 3,5 33 14 90 180 8 31
