Indexing plungers and spring plungers

Spring plunger

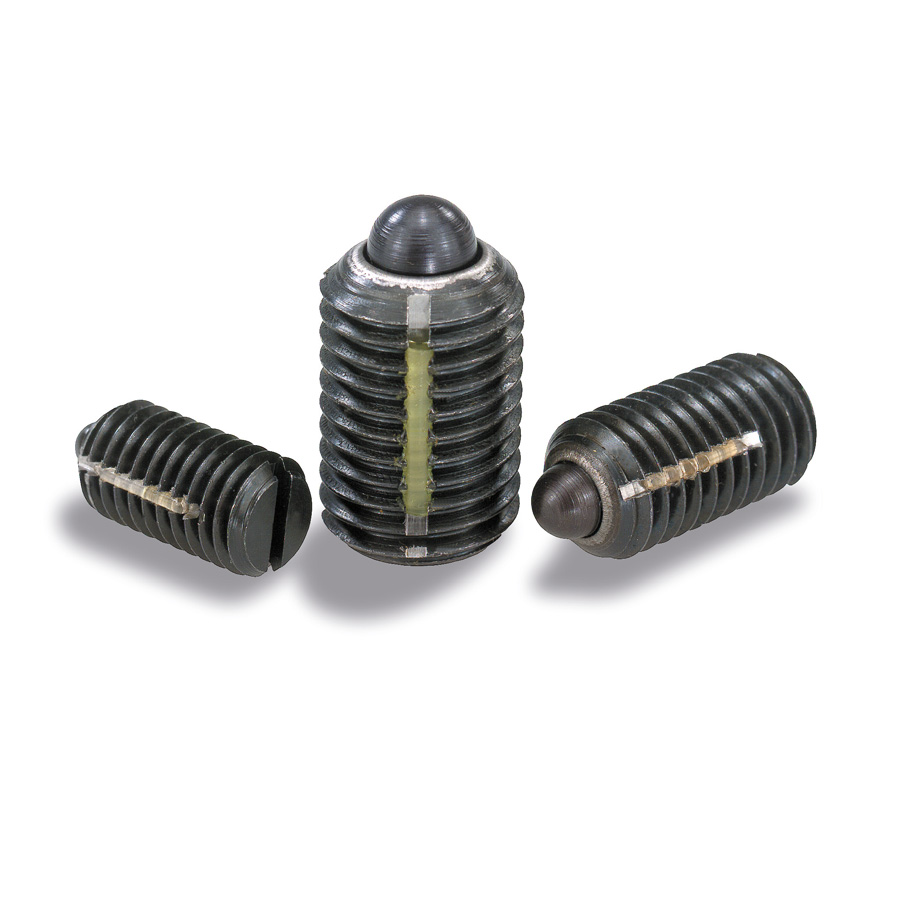

"Long-Lok" secured, pressure pin and slot

3D visualisation

Technical specifications

Add to favourites

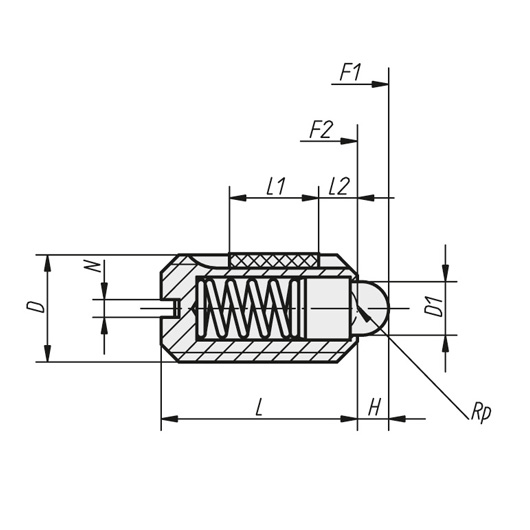

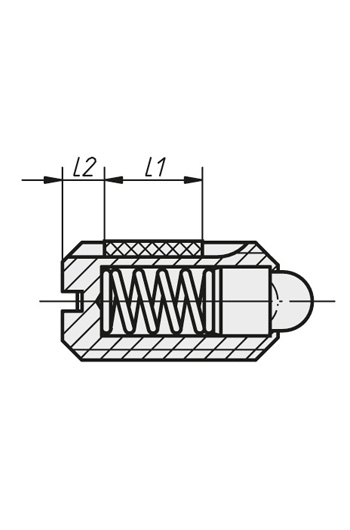

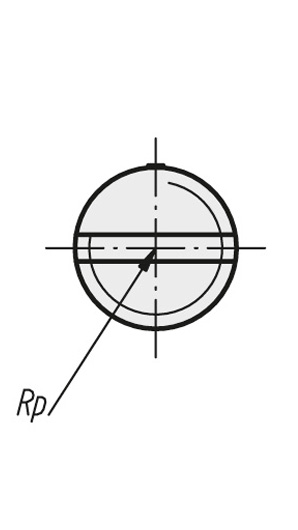

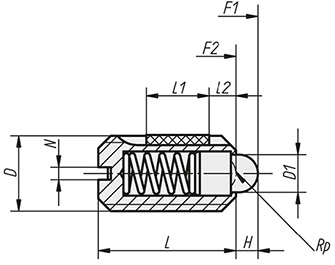

Body in steel class 5.8 black oxide finish, pressure pin in hardened steel, spring in spring steel class D. Long-Lok thread lock in nylon. L2 = 2 x thread pitch.

REF	DESIGNATION	D	D1	RES_F1	RES_F2	C_EXTR	C_INS	H	L	L1	N	Wgt. (g)
7075	SPRING PLUNGER STEEL M4 LONG LOK STEEL PIN	4	1,8	6	20	0,25	0,1	1,5	9	5	0,6	0,39
7076	SPRING PLUNGER STEEL M5 LONG LOK STEEL PIN	5	2,4	6	20	0,25	0,1	2	12	6	0,8	1
7077	SPRING PLUNGER STEEL M6 LONG LOK STEEL PIN	6	2,7	7	20	0,45	0,25	2	14	7	1	1,7
9555	SPRING PLUNGER STEEL M8 LONG LOK STEEL PIN	8	4	15	30	0,6	0,4	2	16	8	1,2	4
9556	SPRING PLUNGER STEEL M10 LONG LOK STEEL PIN	10	4,5	20	35	0,8	0,7	2,5	19	9	1,6	7
9557	SPRING PLUNGER STEEL M12 LONG LOK STEEL PIN	12	6	30	55	1,2	1	3,5	22	10	2	13
9558	SPRING PLUNGER STEEL M16 LONG LOK STEEL PIN	16	8,5	45	100	4,3	4,2	4,5	24	14	2,5	24
