Spring plunger

with bead and hexagonal socket

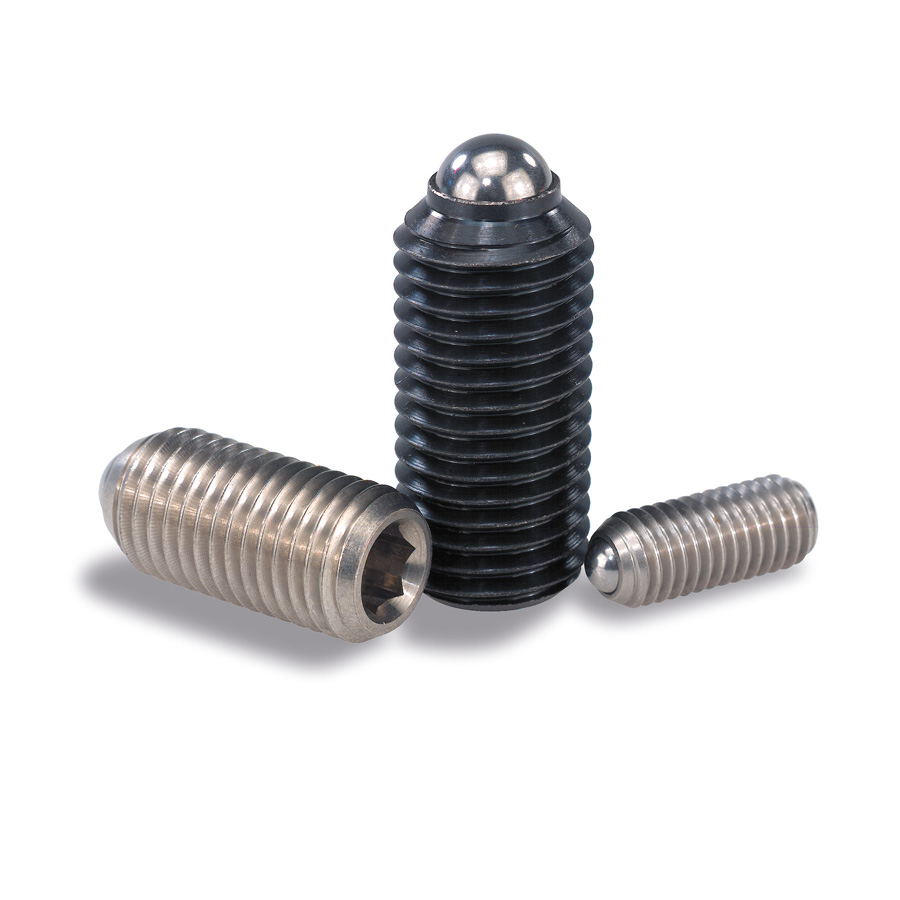

Spring plungers : Spring plunger with bead and hexagonal socket
  • Reach
  • Rohs
3D visualisation

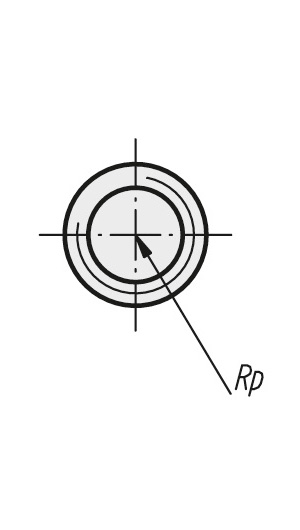

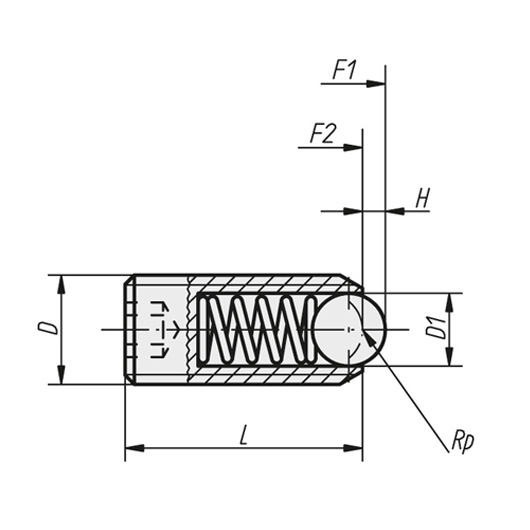

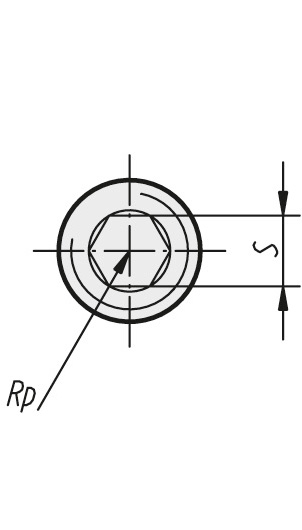

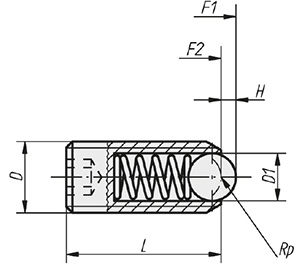

Technical specifications
Add to favourites
Steel version : body in steel class 5.8 black oxide finish, ball in hardened steel, spring in spring steel class D. Stainless steel version : body in stainless steel 1.4305, AISI 303, ball in hardened stainless steel 1.4034, spring in spring stainless steel 1.4310.

01 / Plunger, regular spring resistance

REF DESIGNATION D D1 H L RES_F1 RES_F2 S 3D Quote
8485 SPRING PLUNGER STEEL M3 BEAD M3 1,5 0,4 9 1,5 3 1,5
8486 SPRING PLUNGER STEEL M4 BEAD M4 2,5 0,8 10 4 10 2
8487 SPRING PLUNGER STEEL M5 BEAD M5 3 0,9 14 6 11 2,5
9766 SPRING PLUNGER STEEL M6 BEAD M6 3,5 1 15 9 13 3
9767 SPRING PLUNGER STEEL M8 BEAD M8 5 1,5 18 15 30 4
9768 SPRING PLUNGER STEEL M10 BEAD M10 6 2 23 20 35 5
9769 SPRING PLUNGER STEEL M12 BEAD M12 8 2,5 26 30 55 6
9770 SPRING PLUNGER STEEL M16 BEAD M16 10 3,5 33 65 125 8
9771 SPRING PLUNGER STEEL M20 BEAD M20 12 4,5 43 80 160 10
9772 SPRING PLUNGER STEEL M24 BEAD M24 15 5,5 48 90 180 12
8485i SPRING PLUNGER STAINL. M3 STAINL. BEAD M3 1,5 0,4 9 1,5 3 1,5
8486i SPRING PLUNGER STAINL. M4 STAINL. BEAD M4 2,5 0,8 10 4 10 2
8487i SPRING PLUNGER STAINL. M5 STAINL. BEAD M5 3 0,9 14 6 11 2,5
9766i SPRING PLUNGER STAINL. M6 STAINL. BEAD M6 3,5 1 15 9 13 3
9767i SPRING PLUNGER STAINL. M8 STAINL. BEAD M8 5 1,5 18 15 30 4
9768i SPRING PLUNGER STAINL. M10 STAINL. BEAD M10 6 2 23 20 35 5
9769i SPRING PLUNGER STAINL. M12 STAINL. BEAD M12 8 2,5 26 30 55 6
9770i SPRING PLUNGER STAINL. M16 STAINL. BEAD M16 10 3,5 33 65 125 8
9771i SPRING PLUNGER STAINL. M20 STAINL. BEAD M20 12 4,5 43 80 160 10
9772i SPRING PLUNGER STAINL. M24 STAINL. BEAD M24 15 5,5 48 90 180 12

02 / Plunger, strong spring resistance

REF DESIGNATION D D1 H L RES_F1 RES_F2 S 3D Quote
9773 SPRING PLUNGER STEEL M6 BEAD M6 3,5 1 15 28 40 3
9774 SPRING PLUNGER STEEL M8 BEAD M8 5 1,5 18 47 73 4
9775 SPRING PLUNGER STEEL M10 BEAD M10 6 2 23 66 100 5
9776 SPRING PLUNGER STEEL M12 BEAD M12 8 2,5 26 66 120 6
9777 SPRING PLUNGER STEEL M16 BEAD M16 10 3,5 33 90 180 8
9778 SPRING PLUNGER STEEL M20 BEAD M20 12 4,5 43 115 240 10
9779 SPRING PLUNGER STEEL M24 BEAD M24 15 5,5 48 130 270 12
9773i SPRING PLUNGER STAINL. M6 STAINL. BEAD M6 3,5 1 15 28 40 3
9774i SPRING PLUNGER STAINL. M8 STAINL. BEAD M8 5 1,5 18 47 73 4
9775i SPRING PLUNGER STAINL. M10 STAINL. BEAD M10 6 2 23 66 100 5
9776i SPRING PLUNGER STAINL. M12 STAINL. BEAD M12 8 2,5 26 66 120 6
9777i SPRING PLUNGER STAINL. M16 STAINL. BEAD M16 10 3,5 33 90 180 8
9778i SPRING PLUNGER STAINL. M20 STAINL. BEAD M20 12 4,5 43 115 240 10
9779i SPRING PLUNGER STAINL. M24 STAINL. BEAD M24 15 5,5 48 130 270 12
