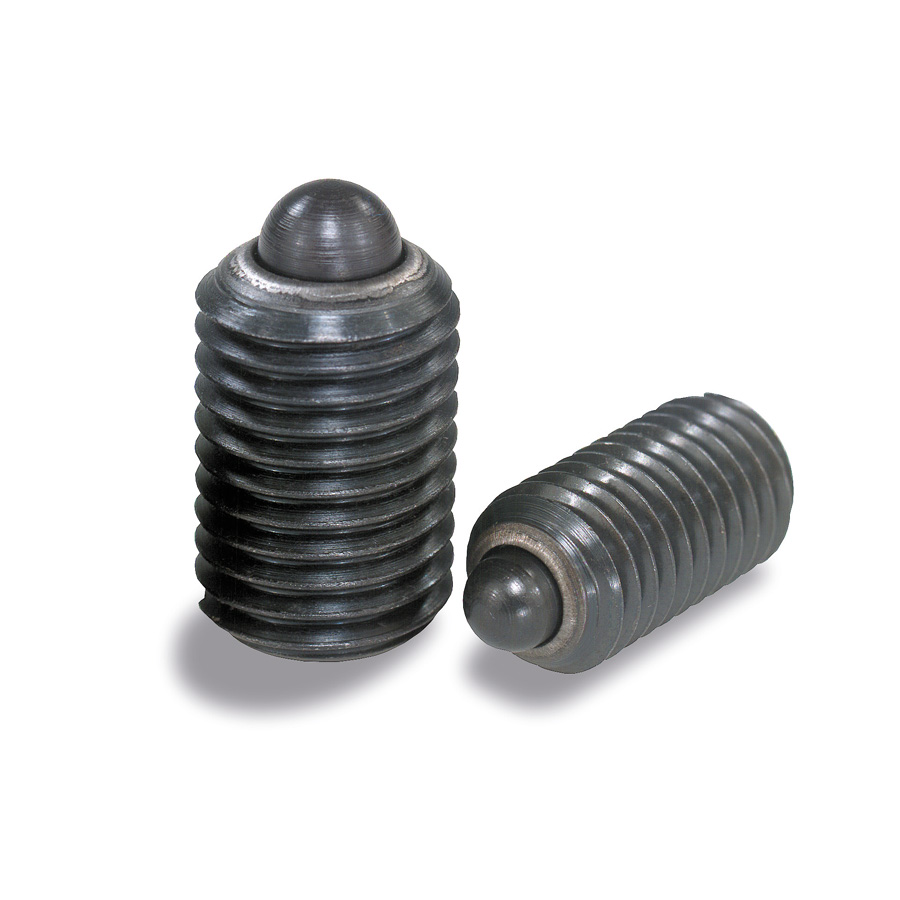

Spring plunger

with pressure pin and slot

3D visualisation

Technical specifications

Add to favourites

Steel version : body in steel class 5.8 black oxide finish, pressure pin in hardened steel, spring in spring steel class D.

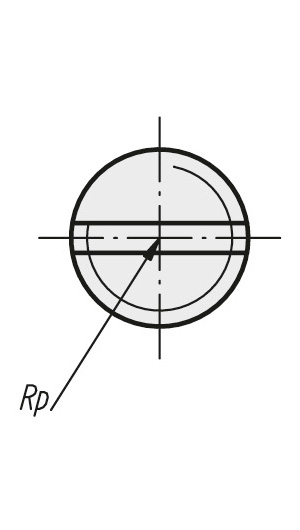

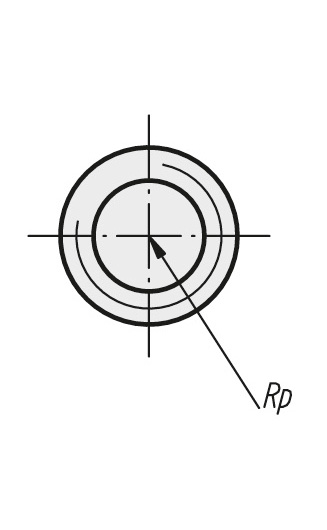

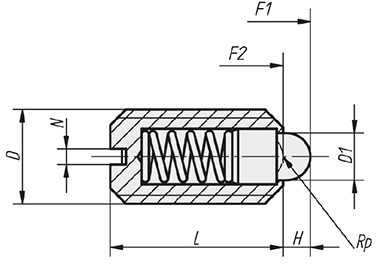

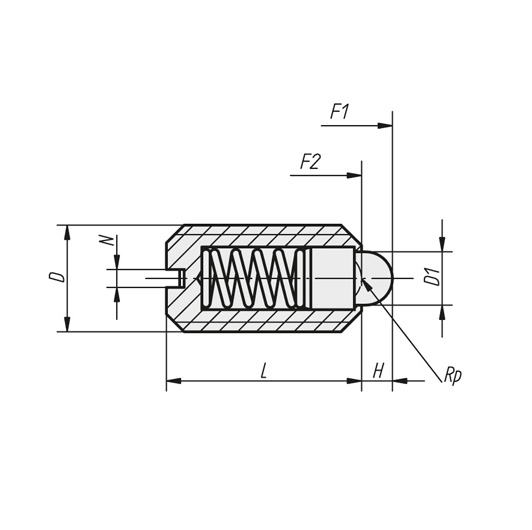

REF	DESIGNATION	D	D1	H	L	N	RES_F1	RES_F2	Wgt. (g)
7033	SPRING PLUNGER STEEL M4 STEEL PIN	4	1,8	1,5	9	0,6	6	20	0,39
7034	SPRING PLUNGER STEEL M5 STEEL PIN	5	2,4	2	12	0,8	6	20	1
7035	SPRING PLUNGER STEEL M6 STEEL PIN	6	2,7	2	14	1	7	20	1,7
8380	SPRING PLUNGER STEEL M8 STEEL PIN	8	4	2	16	1,2	15	30	4
8381	SPRING PLUNGER STEEL M10 STEEL PIN	10	4,5	2,5	19	1,6	20	35	7
8382	SPRING PLUNGER STEEL M12 STEEL PIN	12	6	3,5	22	2	30	55	13
8383	SPRING PLUNGER STEEL M16 STEEL PIN	16	8,5	4,5	24	2,5	45	100	24
8384	SPRING PLUNGER STEEL M20 STEEL PIN	20	10	6,5	30	2,5	60	120	46,3
