Pull handles

Available variations

Handle AR

in steel

Heavy duty handle QC

in aluminium

Handle AF

in aluminium

3D visualisation

Technical specifications

Add to favourites

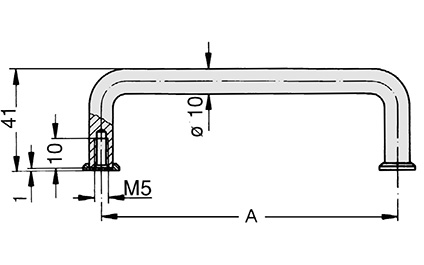

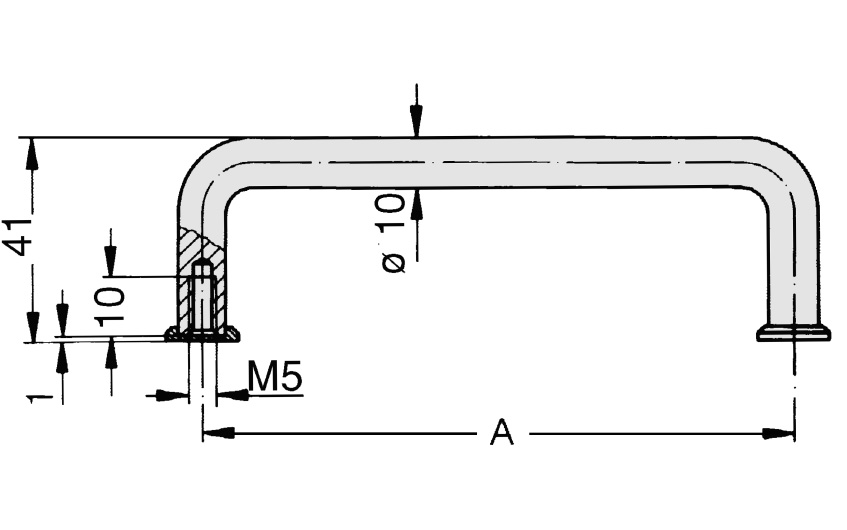

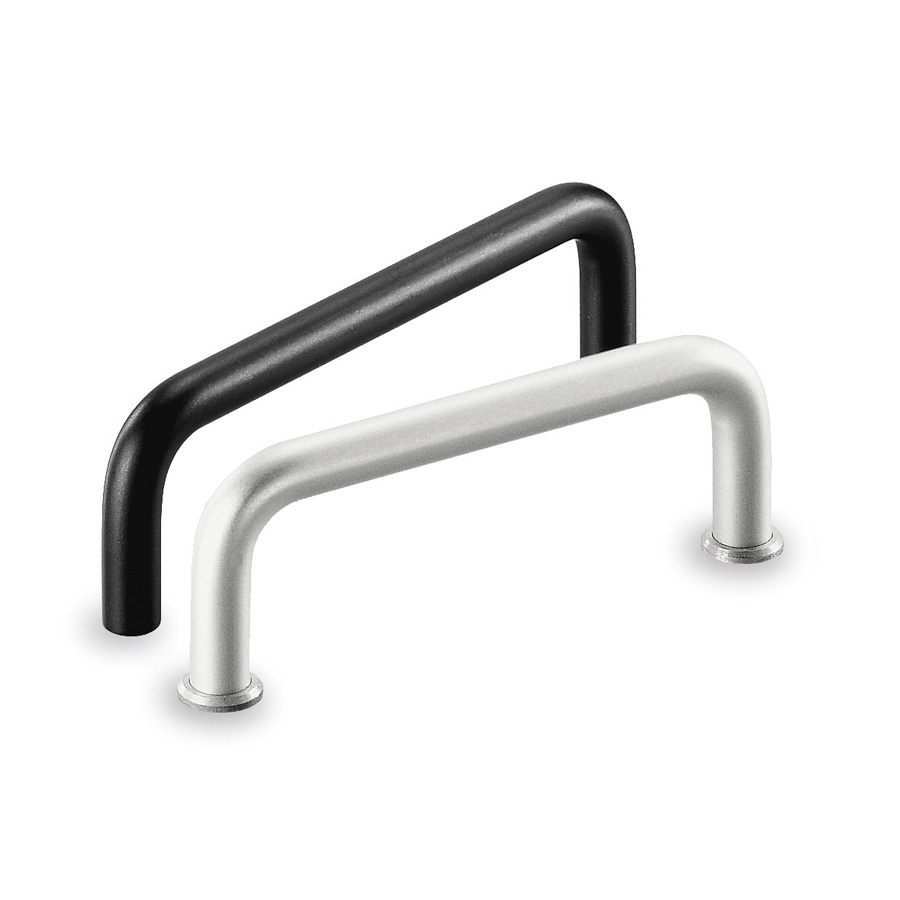

Handle in round bar aluminium AlMgSi 0.5, anodized with a matt finish, supplied with cover plates. Stress resistance minimum 500 N.

REF	DESIGNATION	A	M	Wgt. (g)
10042	HANDLE AF ALU 55MM FITTING M5 COVERPLATES	55	M5	23
10043	HANDLE AF ALU 88MM FITTING M5 COVERPLATES	88	M5	29
10044	HANDLE AF ALU 100MM FITTING M5 COVERPLATES	100	M5	32
10046	HANDLE AF ALU 120MM FITTING M5 COVERPLATES	120	M5	37
10047	HANDLE AF ALU 180MM FITTING M5 COVERPLATES	180	M5	49
10048	HANDLE AF ALU 200MM FITTING M5 COVERPLATES	200	M5	53
10049	HANDLE AF ALU 235MM FITTING M5 COVERPLATES	235	M5	63
10050	HANDLE AF ALU 250MM FITTING M5 COVERPLATES	250	M5	67
10042N	HANDLE AF ALU 55MM FITTING M5 COVERPLATES BLACK	55	M5	23
10043N	HANDLE AF ALU 88MM FITTING M5 COVERPLATES BLACK	88	M5	29
10044N	HANDLE AF ALU 100MM FITTING M5 COVERPLATES BLACK	100	M5	32
10046N	HANDLE AF ALU 120MM FITTING M5 COVERPLATES BLACK	120	M5	37
10047N	HANDLE AF ALU 180MM FITTING M5 COVERPLATES BLACK	180	M5	49
10048N	HANDLE AF ALU 200MM FITTING M5 COVERPLATES BLACK	200	M5	53
10049N	HANDLE AF ALU 235MM FITTING M5 COVERPLATES BLACK	235	M5	63
10050N	HANDLE AF ALU 250MM FITTING M5 COVERPLATES BLACK	250	M5	67
