Swivel feet for machines

Bases for swivel pads
Requires use of

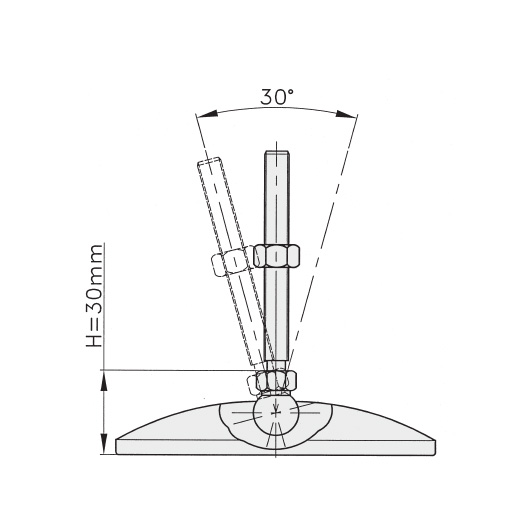

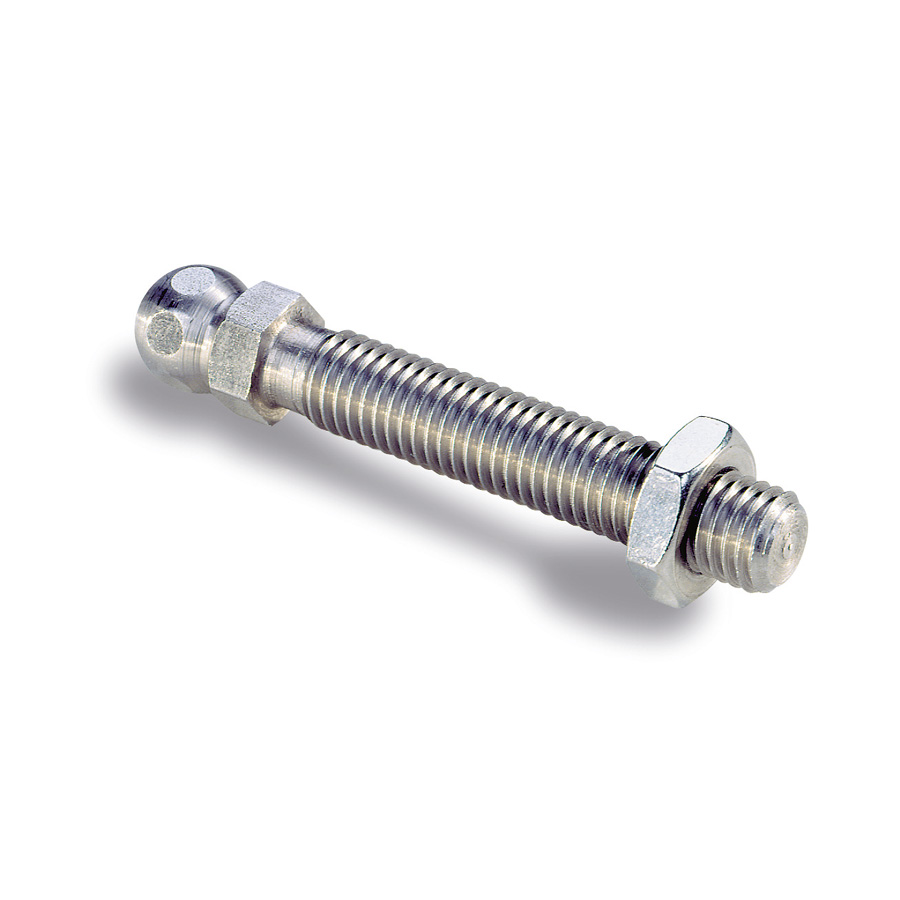

Spindle for 40° swivel pad

Metal plate for 40° swivel pad

Bases for swivel pads : Metal plate for 40° swivel pad
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

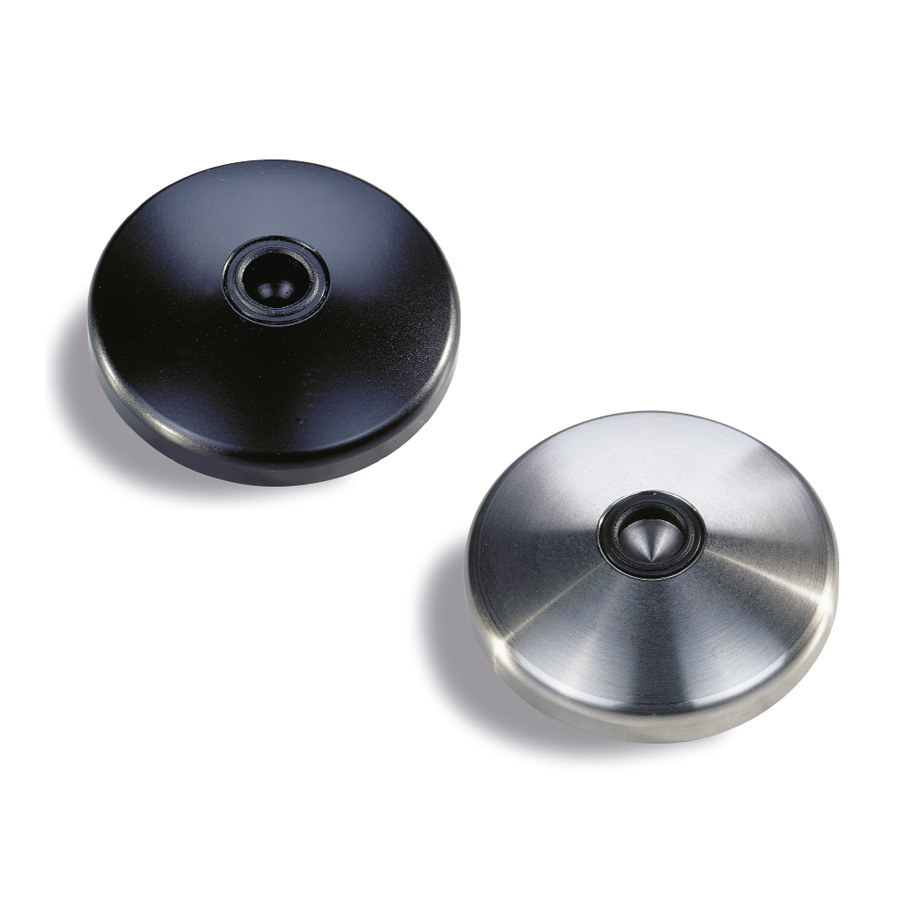

Plate in die cast zinc, black powder-coated or stainless steel 1.4305. With or without anti-slip plate in thermoplastic elastomer.

01 / Without anti-slip plate

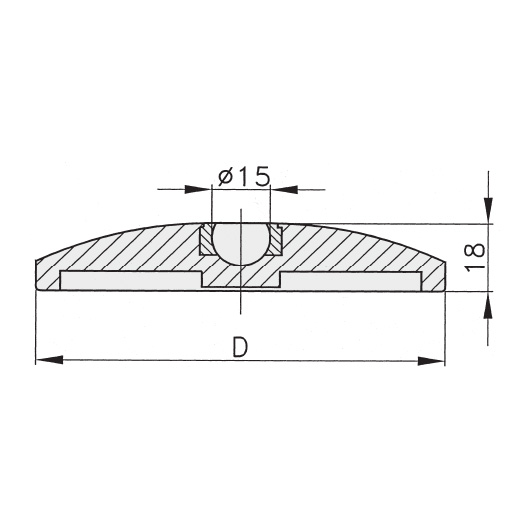

Schéma 3 + Metal plate for 40° swivel pad
REF DESIGNATION D CHARGE 3D Quote
123018 BASE DIECASTZINC D.30 FOR FEET 40 30 20000
123019 BASE DIECASTZINC D.40 FOR FEET 40 40 30000
123020 BASE DIECASTZINC D.45 FOR FEET 40 45 30000
123021 BASE DIECASTZINC D.50 FOR FEET 40 50 30000
123022 BASE DIECASTZINC D.60 FOR FEET 40 60 30000
123023 BASE DIECASTZINC D.80 FOR FEET 40 80 30000
123024 BASE DIECASTZINC D.100 FOR FEET 40 100 35000
123025 BASE DIECASTZINC D.120 FOR FEET 40 120 35000
123018i BASE STAINLESS D.30 FOR FEET 40 30 20000
123019i BASE STAINLESS D.40 FOR FEET 40 40 30000
123020i BASE STAINLESS D.45 FOR FEET 40 45 30000
123021i BASE STAINLESS D.50 FOR FEET 40 50 30000
123022i BASE STAINLESS D.60 FOR FEET 40 60 30000
123023i BASE STAINLESS D.80 FOR FEET 40 80 30000
123024i BASE STAINLESS D.100 FOR FEET 40 100 35000
123025i BASE STAINLESS D.120 FOR FEET 40 120 35000

02 / With anti-slip plate

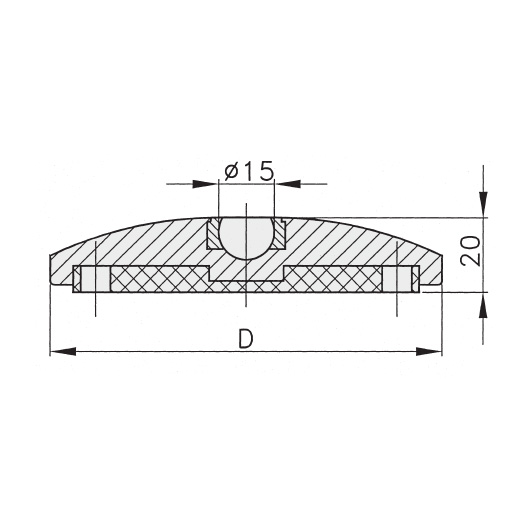

Schéma 4 + Metal plate for 40° swivel pad
REF DESIGNATION D CHARGE 3D Quote
123026 BASE DIECASTZINC D.30 FOR FEET 40 30 20000
123027 BASE DIECASTZINC D.40 FOR FEET 40 40 30000
123028 BASE DIECASTZINC D.45 FOR FEET 40 45 30000
123029 BASE DIECASTZINC D.50 FOR FEET 40 50 30000
123030 BASE DIECASTZINC D.60 FOR FEET 40 60 30000
123031 BASE DIECASTZINC D.80 FOR FEET 40 80 30000
123032 BASE DIECASTZINC D.100 FOR FEET 40 100 35000
123033 BASE DIECASTZINC D.120 FOR FEET 40 120 35000
123026i BASE STAINLESS D.30 FOR FEET 40 30 20000
123027i BASE STAINLESS D.40 FOR FEET 40 40 30000
123028i BASE STAINLESS D.45 FOR FEET 40 45 30000
123029i BASE STAINLESS D.50 FOR FEET 40 50 30000
123030i BASE STAINLESS D.60 FOR FEET 40 60 30000
123031i BASE STAINLESS D.80 FOR FEET 40 80 30000
123032i BASE STAINLESS D.100 FOR FEET 40 100 35000
123033i BASE STAINLESS D.120 FOR FEET 40 120 35000
