Swivel feet for machines

Available variations

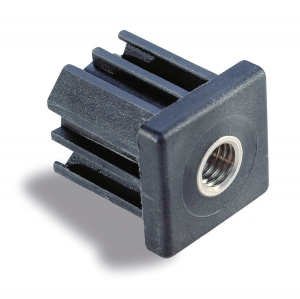

Screw-in plug for square tube

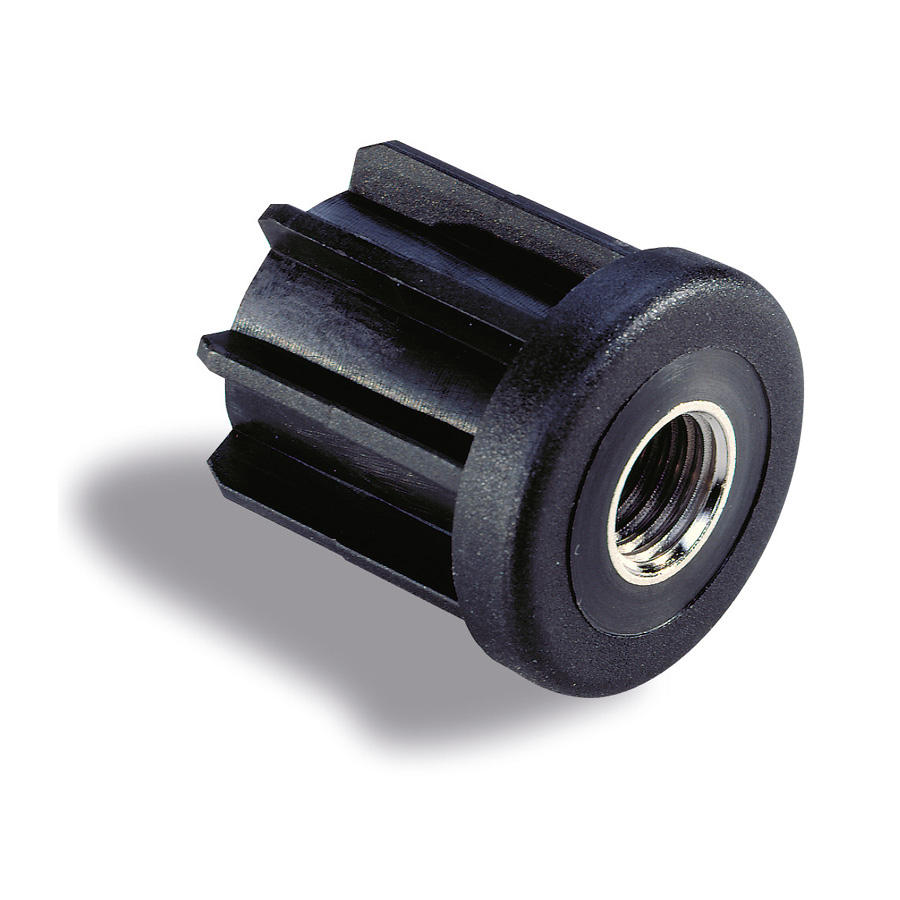

Screw-in plug for cylindrical tube

135° Celsius
-40° Celsius

3D visualisation

Technical specifications

Add to favourites

Plug in black, glass-fiber reinforced thermoplastic. Insert in nickel-plated brass.

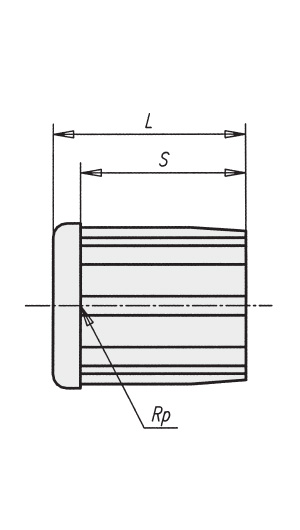

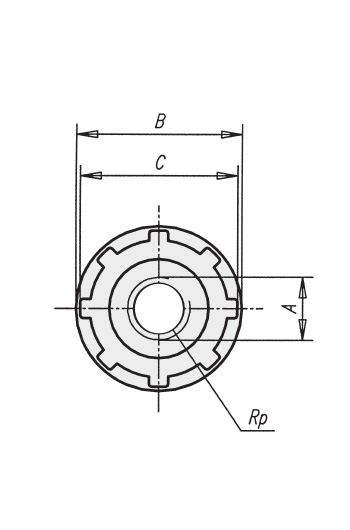

REF	DESIGNATION	A	B	C	L	S	TUBE	CHARGE
123174	BUSH NYLON D.30/1 BRASS INS M10	M10	30	28,4	35	29	30 x 1,0	3000
123175	BUSH NYLON D.30/1 BRASS INS M12	M12	30	28,4	35	29	30 x 1,0	3000
123176	BUSH NYLON D.30/1 BRASS INS M14	M14	30	28,4	35	29	30 x 1,0	3000
123177	BUSH NYLON D.30/1 BRASS INS M16	M16	30	28,4	35	29	30 x 1,0	3000
123178	BUSH NYLON D.38/1.5 BRASS INS M10	M10	38	35,5	43	34	38 x 1,5	5000
123179	BUSH NYLON D.38/1.5 BRASS INS M12	M12	38	35,5	43	34	38 x 1,5	5000
123180	BUSH NYLON D.38/1.5 BRASS INS M14	M14	38	35,5	43	34	38 x 1,5	5000
123181	BUSH NYLON D.38/1.5 BRASS INS M16	M16	38	35,5	43	34	38 x 1,5	5000
123182	BUSH NYLON D.42/1.5 BRASS INS M10	M10	42	39,9	42	34	42,4 x 1,5	5000
123183	BUSH NYLON D.42/1.5 BRASS INS M12	M12	42	39,9	42	34	42,4 x 1,5	5000
123184	BUSH NYLON D.42/1.5 BRASS INS M14	M14	42	39,9	42	34	42,4 x 1,5	5000
123185	BUSH NYLON D.42/1.5 BRASS INS M16	M16	42	39,9	42	34	42,4 x 1,5	5000
123186	BUSH NYLON D.42/1.5 BRASS INS M20	M20	42	39,9	42	34	42,4 x 1,5	5000
123187	BUSH NYLON D.48/1.5 BRASS INS M12	M12	48	45,8	49	38	48,3 x 1,5	6000
123188	BUSH NYLON D.48/1.5 BRASS INS M14	M14	48	45,8	49	38	48,3 x 1,5	6000
123189	BUSH NYLON D.48/1.5 BRASS INS M16	M16	48	45,8	49	38	48,3 x 1,5	6000
123190	BUSH NYLON D.48/1.5 BRASS INS M20	M20	48	45,8	49	38	48,3 x 1,5	6000
123191	BUSH NYLON D.50/1.5 BRASS INS M12	M12	50	48,4	49	38	50,9 x 1,5	8000
123192	BUSH NYLON D.50/1.5 BRASS INS M14	M14	50	48,4	49	38	50,9 x 1,5	8000
123193	BUSH NYLON D.50/1.5 BRASS INS M16	M16	50	48,4	49	38	50,9 x 1,5	8000
123194	BUSH NYLON D.50/1.5 BRASS INS M20	M20	50	48,4	49	38	50,9 x 1,5	8000
