Heavy-duty Vertical clamp

3D visualisation

Technical specifications

Add to favourites

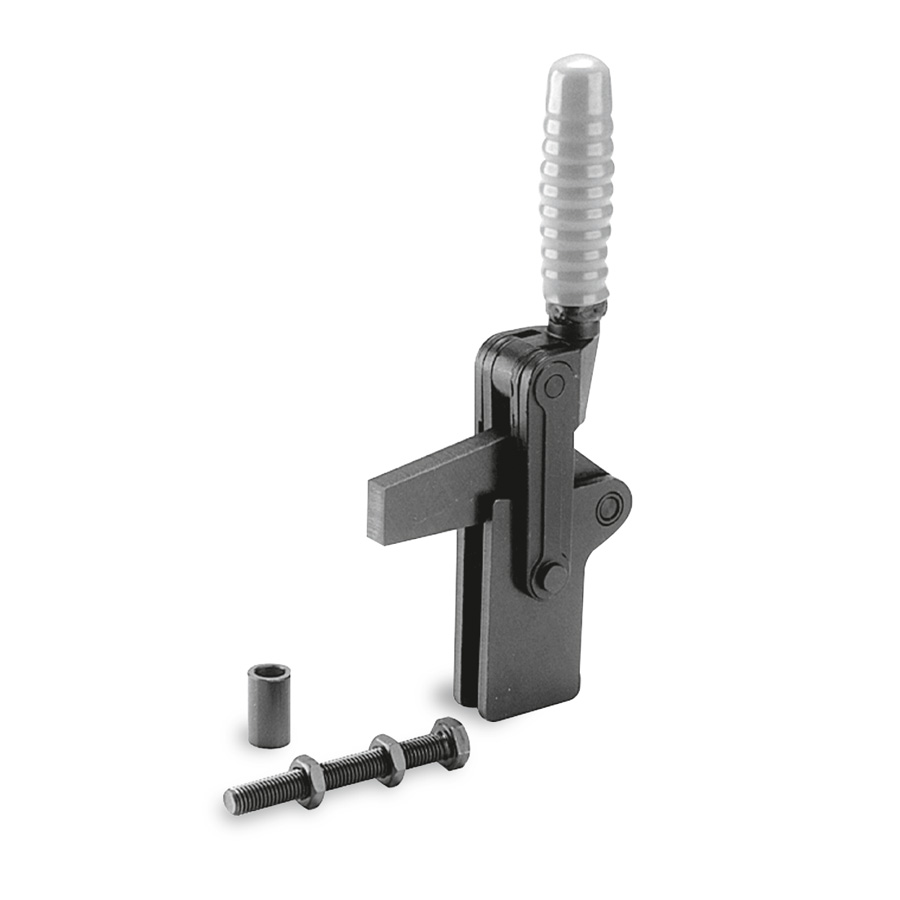

Clamp in steel, black oxide finish, bearing pins and bearing sleeves case-hardened. Handle cover in orange oil-resistant plastic. Clamp supplied complete with fastening material.

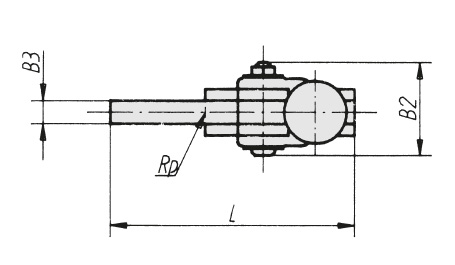

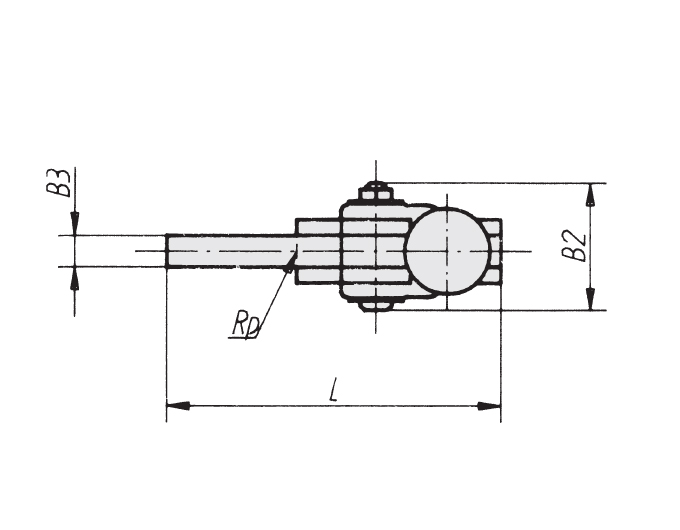

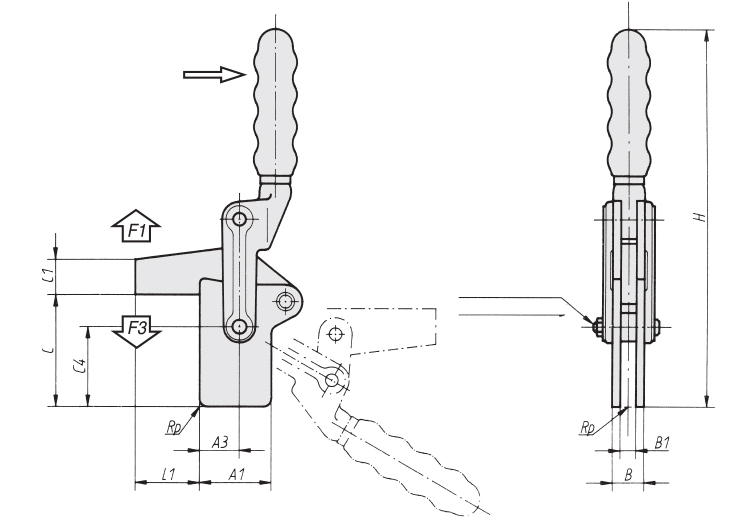

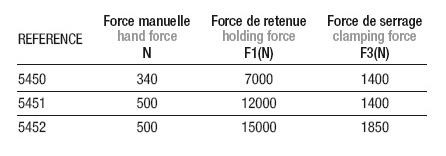

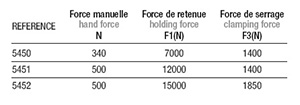

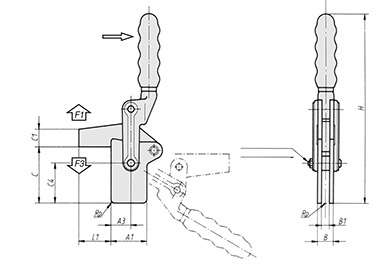

REF	DESIGNATION	M	A1	A3	B	B1	B2	B3	C	C1	C4	D	F1	F3	H	L	L1	L2	N
5450	HEAVY DUTY VERTICAL CLAMP 7000N	M12x100	45	25	20	10	43	10	70	22	50	12,2	7000	1400	235	104	40	30	340
5451	HEAVY DUTY VERTICAL CLAMP 12000N	M12x100	50	25	24	12	48	12	86	26	63	12,2	12000	1400	276	124	50	30	500
5452	HEAVY DUTY VERTICAL CLAMP 24000N	M16x150	63	40	32	16	62	16	105	32	76	16,3	15000	1850	330	163	60	38	500
