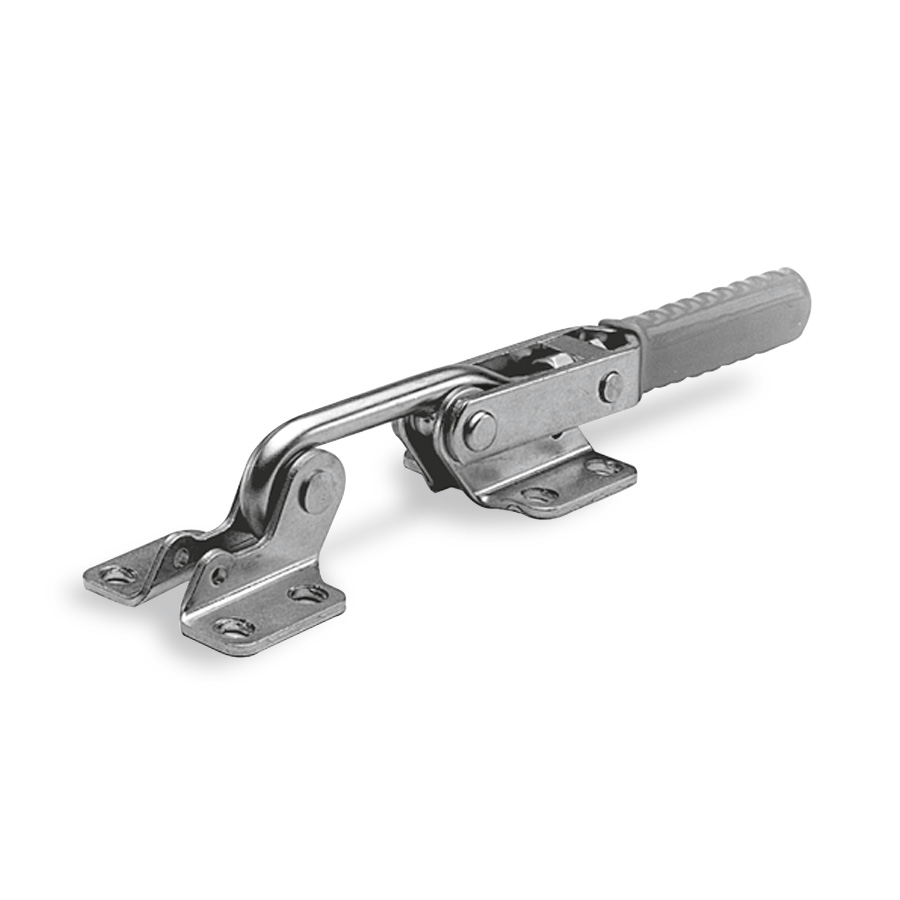

Clamp made of galvanized steel or stainless steel AISI 304. Supplied with hook. Handle cover in orange oilresistant plastic. Travel path : 0 – 5mm.

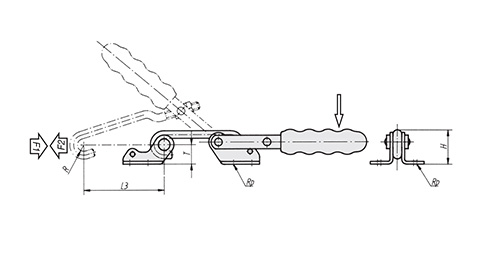

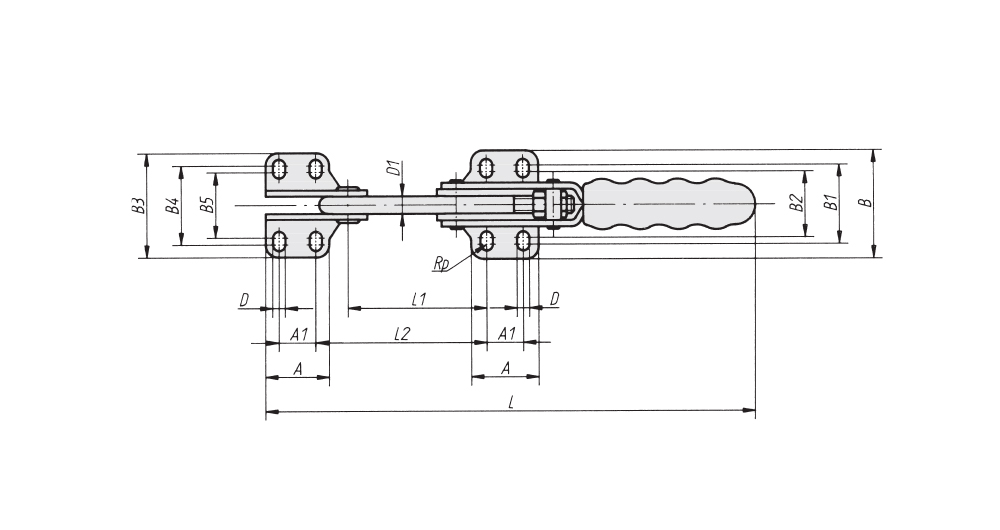

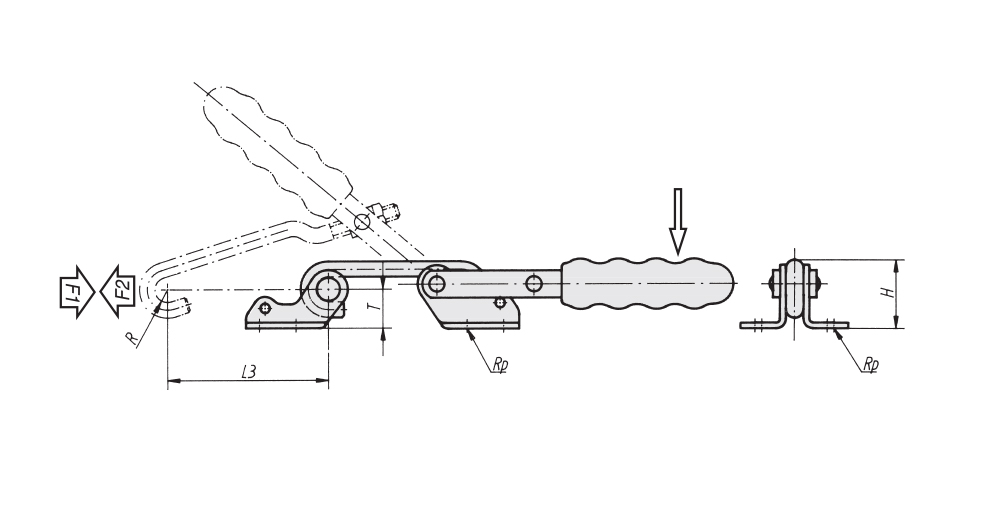

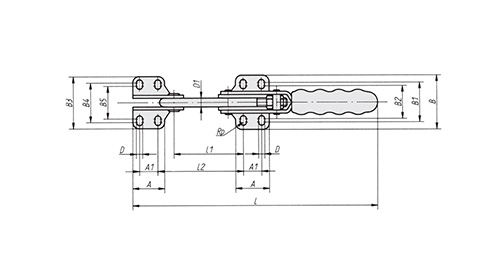

REF	DESIGNATION	A	A1	ANG1L	B	B1	B2	B3	B4	B5	D	D1	F1	H	L	L1	L2	L3	R	T
5901	HOOK CLAMP 1300N	26	13	155	40	26	21,5	43	31	26	5,2	6	1500	26	156	45	58	70	6	13,5
5902	HOOK CLAMP 2700N	35	19	155	51	36	29	56	41	34	6,5	8	3000	37	248	68	84	90	7	21
5903	HOOK CLAMP 4300N	51	32	155	72	52,5	43,5	78	59	50	8,5	12	4000	49	310	84	104	115	10	27
5901i	HOOK CLAMP STAINL. 1300N	26	13	155	40	26	21,5	43	31	26	5,2	6	1500	26	156	45	58	70	6	13,5
5902i	HOOK CLAMP STAINL. 2700N	35	19	155	51	36	29	56	41	34	6,5	8	3000	37	248	68	84	90	7	21
5903i	HOOK CLAMP STAINL. 4300N	51	32	155	72	52,5	43,5	78	59	50	8,5	12	4000	49	310	84	104	115	10	27
