Horizontal clamp H1-A

3D visualisation

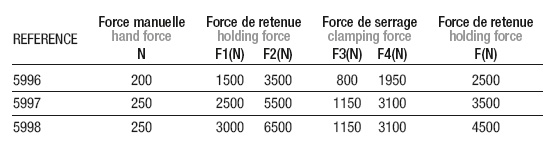

Technical specifications

Add to favourites

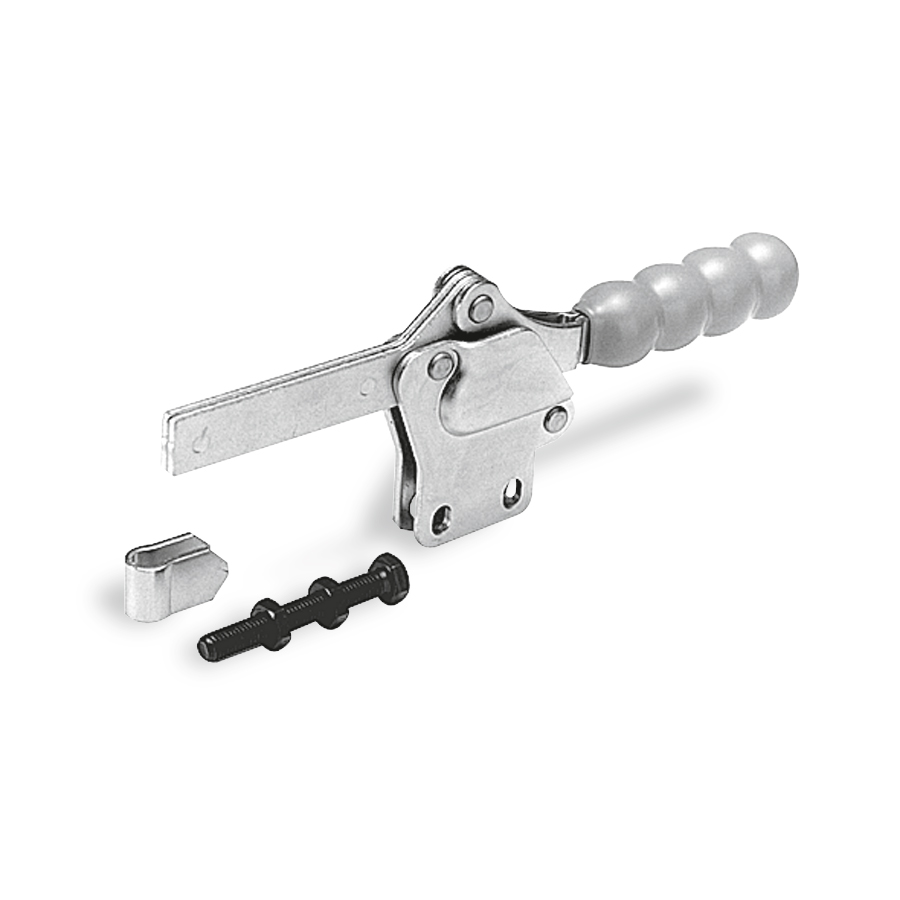

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

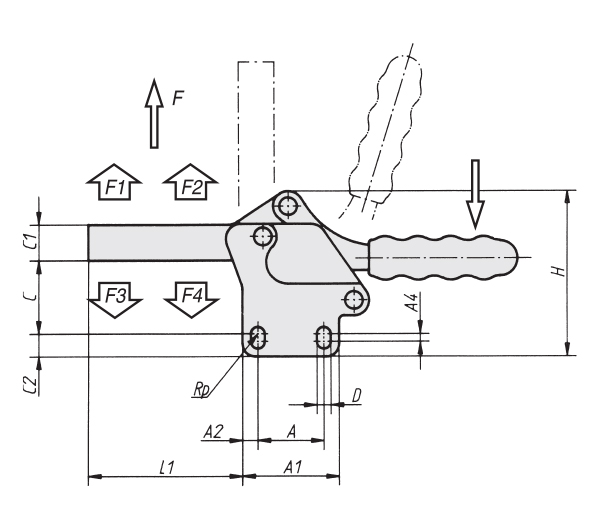

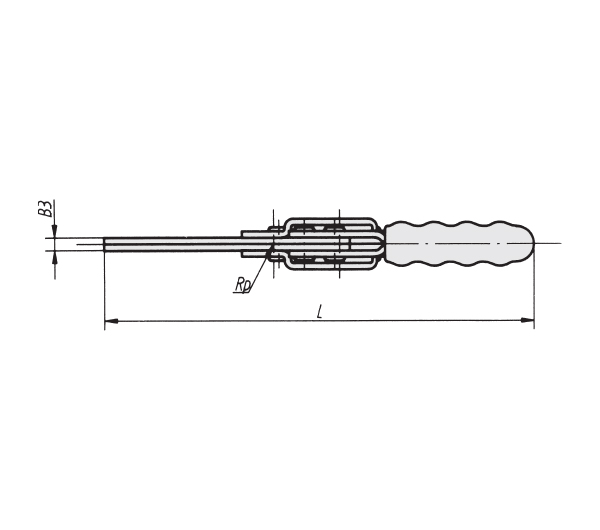

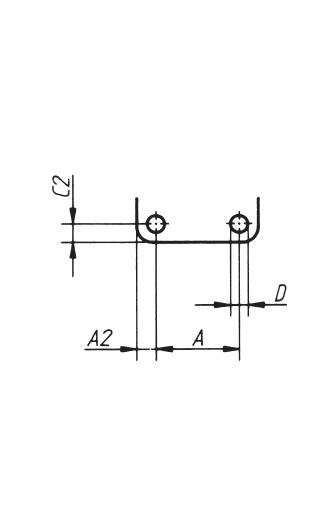

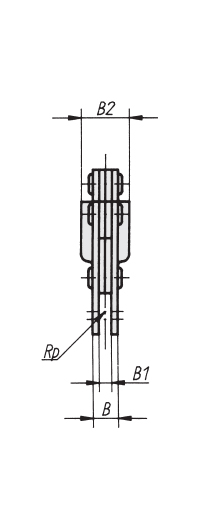

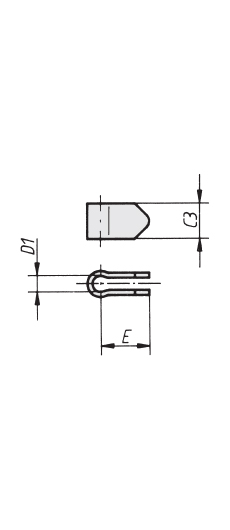

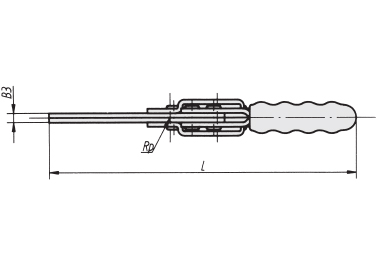

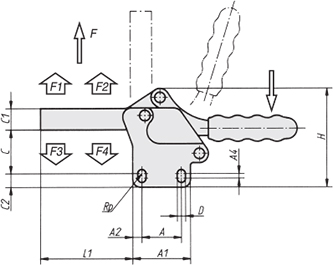

REF	DESIGNATION	A	A1	A2	A4	B	B1	B2	B3	C	C1	C2	C3	D	D1	E	F	H	L	L1	vis
5996	HORIZONTAL CLAMP H1-A 2500N	26	42	8	2,6	12	6	23	6	39	17,5	10	17,5	6,6	8,3	24	2500	82	226	82	M8x60
5997	HORIZONTAL CLAMP H1-A 3500N	41,2	59	9	2	16	8	30	8	54	23	10	22	8,7	10,3	30	3500	108	280	109	M10x80
5998	HORIZONTAL CLAMP H1-A 4500N	41,2	66	13	0	20	10	38	10	66	26	13	26	8,7	12,3	32	4500	130	310	130	M12x100
