Horizontal clamp H1-B

3D visualisation

Technical specifications

Add to favourites

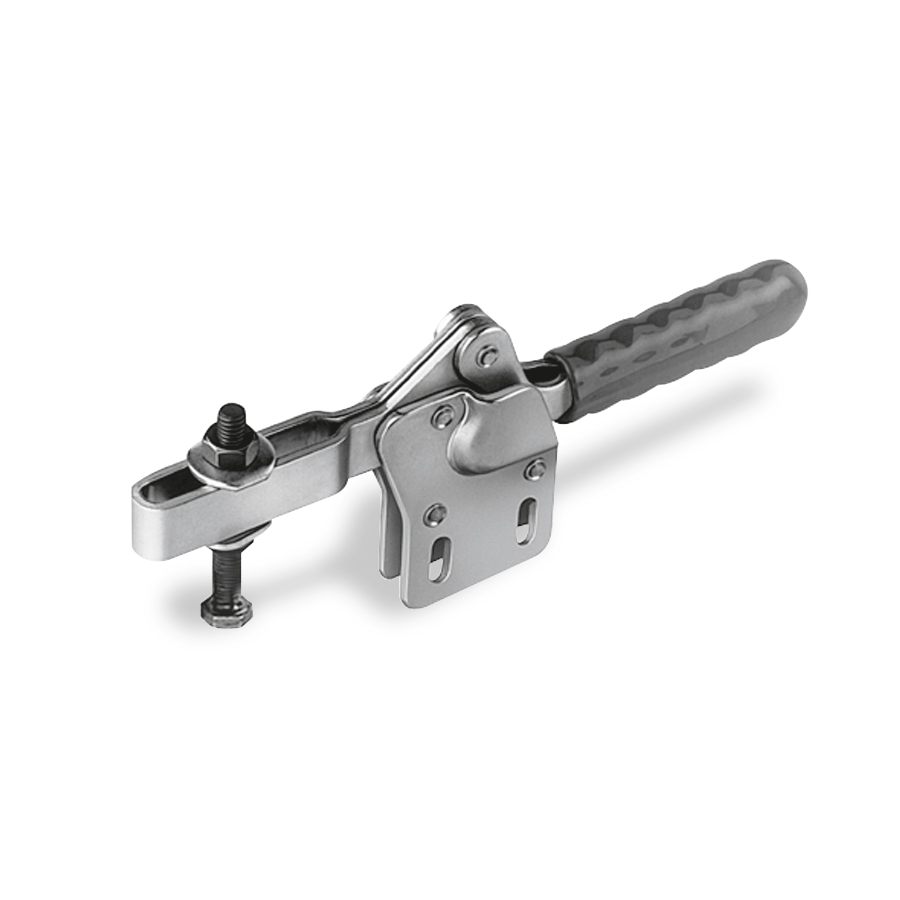

Clamp made of galvanized steel. Clamp supplied complete with fastening material, including a neoprene pressure pad for the 2 smallest sizes. Handle cover in orange oil-resistant plastic.

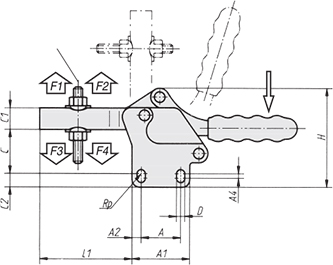

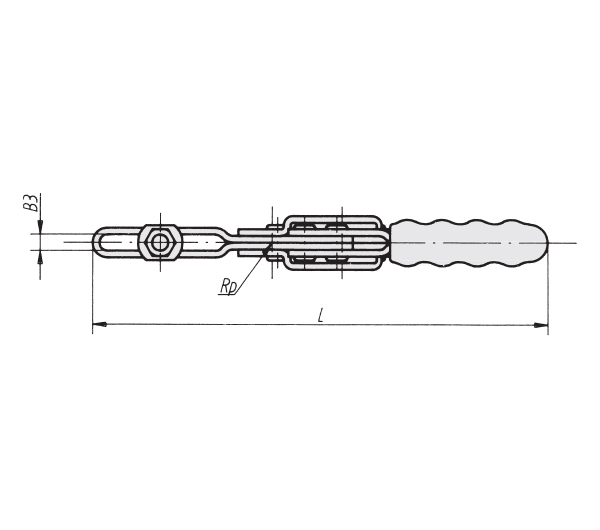

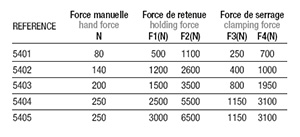

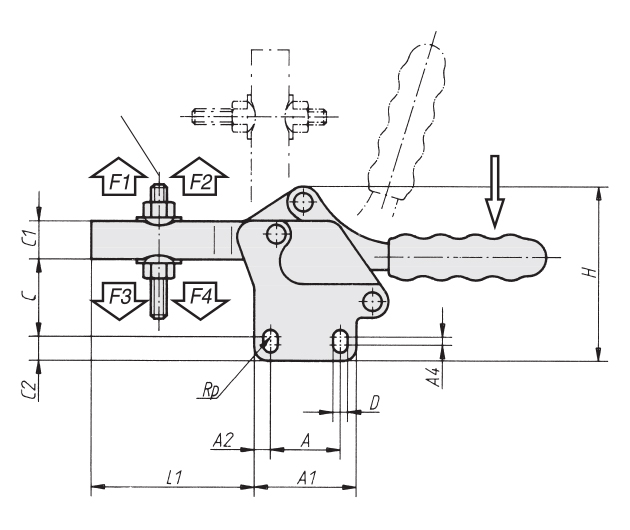

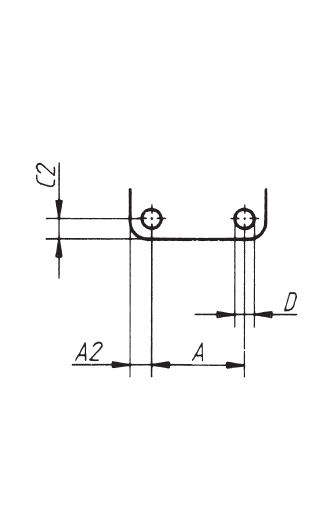

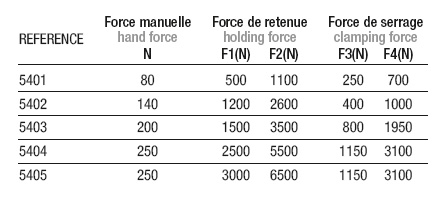

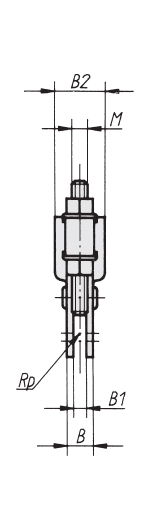

REF	DESIGNATION	M	A1	A2	A4	B	B1	B2	B3	C	C1	C2	D	F1	F2	F3	F4	H	L	L1	N
