Horizontal clamp H2-C

Horizontal clamps : Horizontal clamp H2-C
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

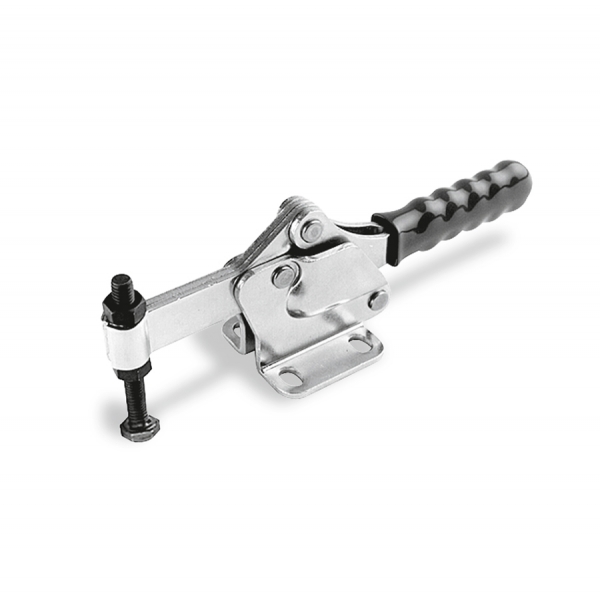

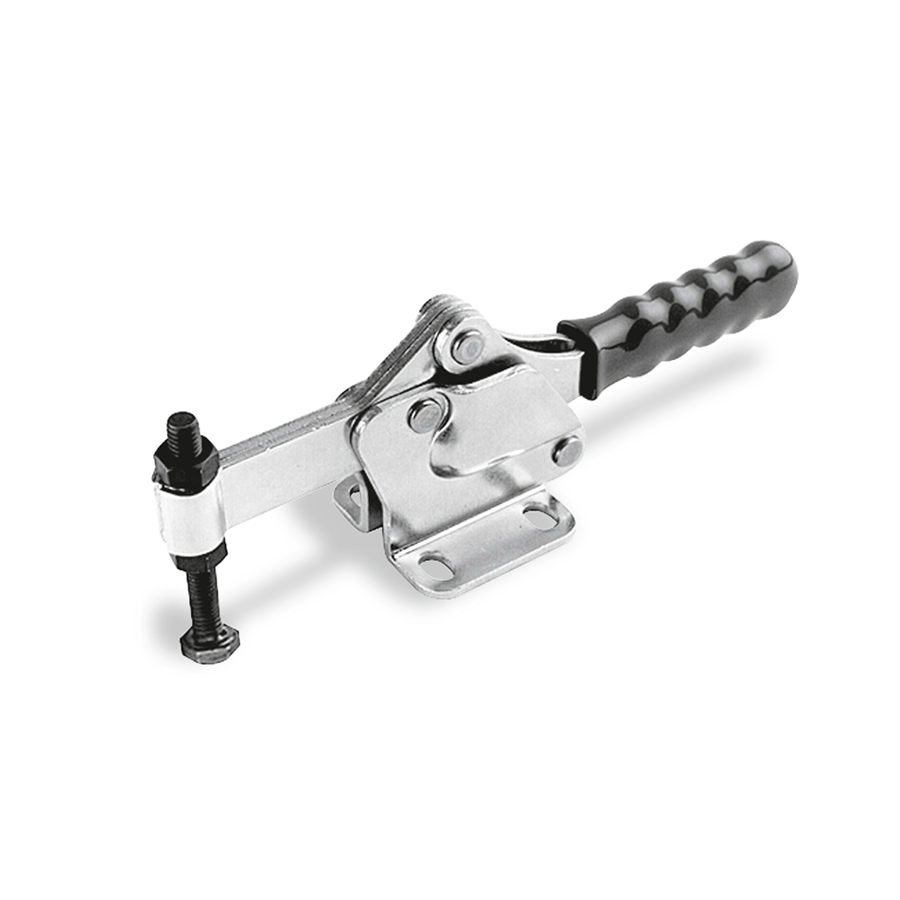

Clamp made of galvanized steel. Clamp supplied complete with fastening material, including neoprene pressure pad. Handle cover in orange oil-resistant plastic.

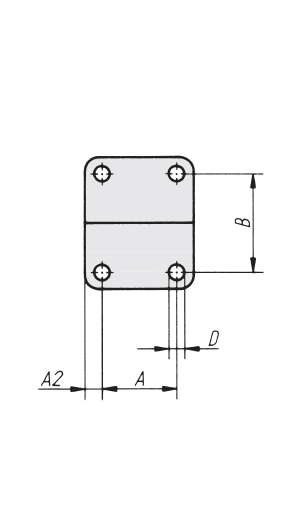

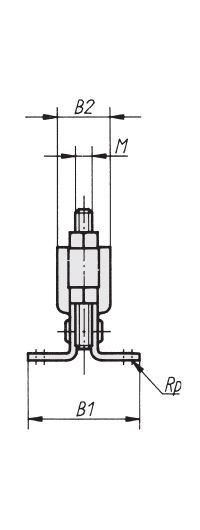

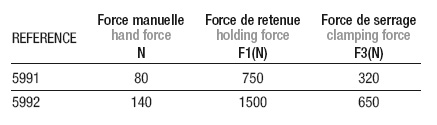

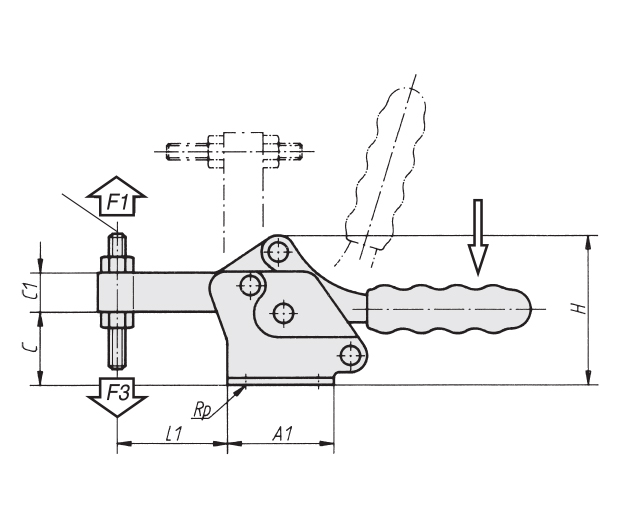

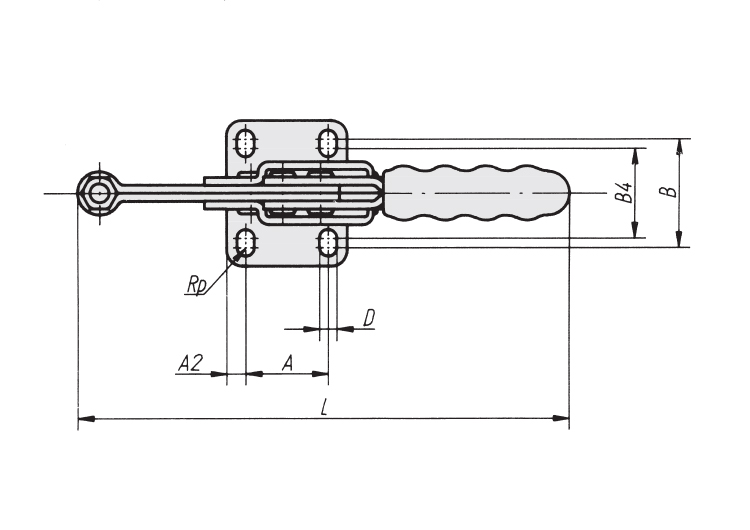

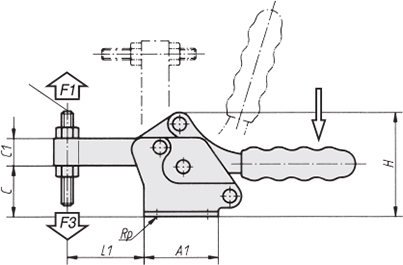

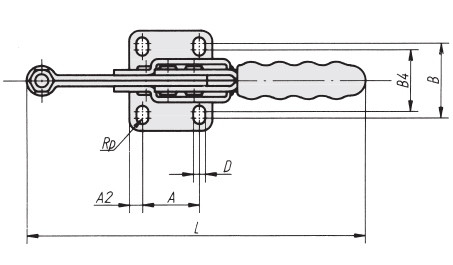

REF DESIGNATION M A A1 A2 B B1 B2 B4 C C1 D F1 F3 H L L1 N 3D Quote
5991 HORIZONTAL CLAMP H2-C 750N M5x35 13,5 25 5,7 16,8 27 16 0 19 9,5 5,2 750 320 37 108 23 80
5992 HORIZONTAL CLAMP H2-C 1500N M6x50 26 38 6 28 40 20 22 25 14 5,5 1500 650 53 155 38 140
