Mini clamp H2-B

Small-size clamps / miniature clamps : Mini clamp H2-B
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

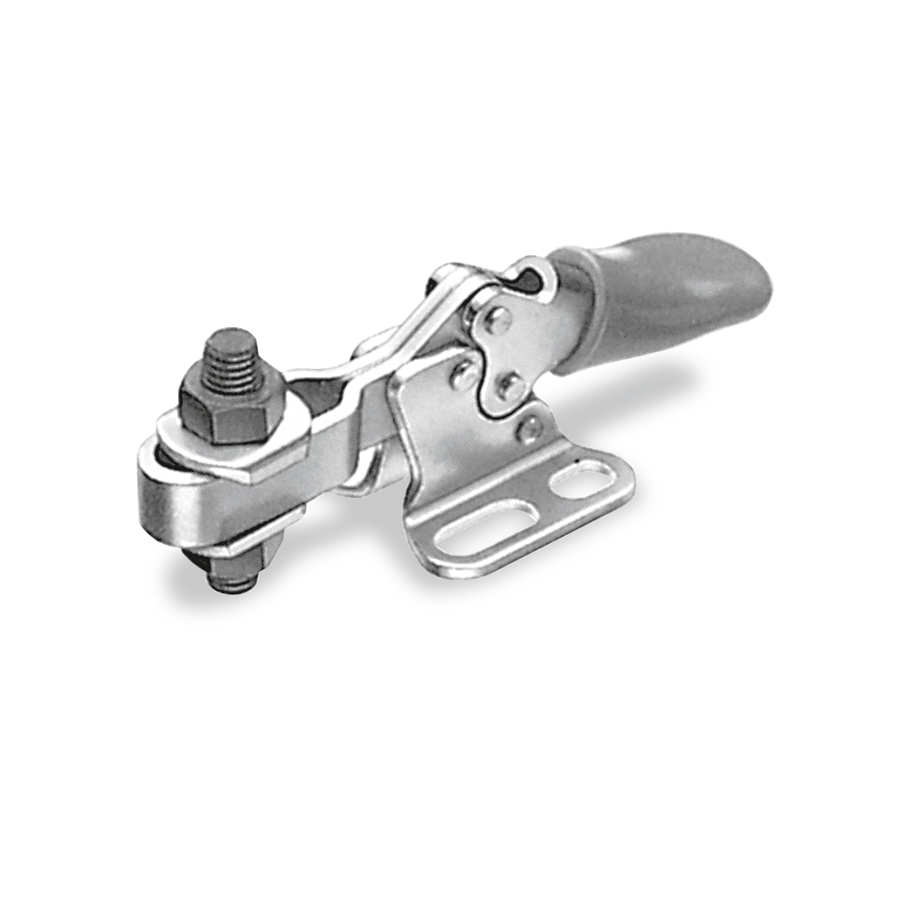

Clamp made of galvanized steel or stainless steel  AISI 304. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

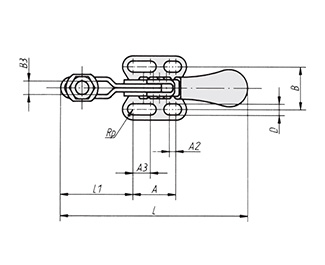

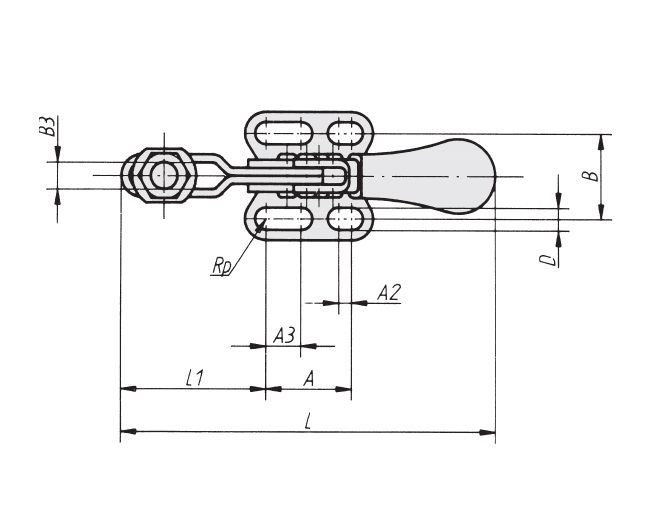

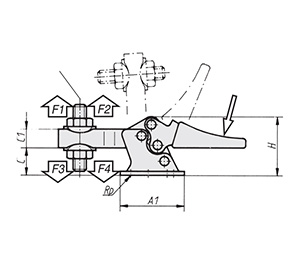

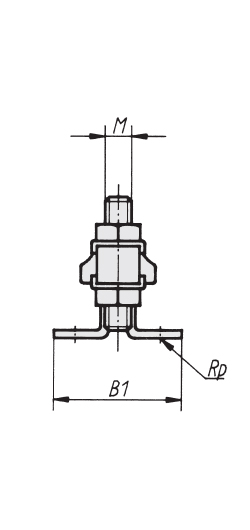

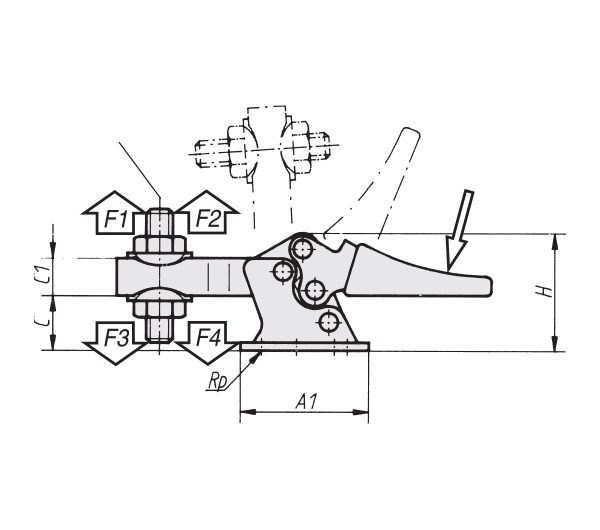

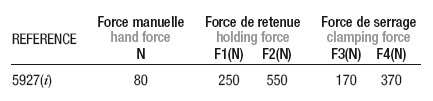

REF DESIGNATION M A A1 A2 A3 B B1 B3 C C1 D F F1 F2 F3 F4 H L L1 N 3D Quote
5927 MINI-CLAMP H2-B 500N M5x20 16 24 2,4 6,5 16 24 5,2 11,5 7 4,2 500 250 550 170 370 22,5 70 26 80
5927i MINI-CLAMP STAINL. H2-B 500N M5x20 16 24 2,4 6,5 16 24 5,2 11,5 7 4,2 500 250 550 170 370 22 70 26 80
