Toggle clamps

Small-size clamps / miniature clamps

Mini horizontal clamp H1-B

Small-size clamps / miniature clamps : Mini horizontal clamp H1-B
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

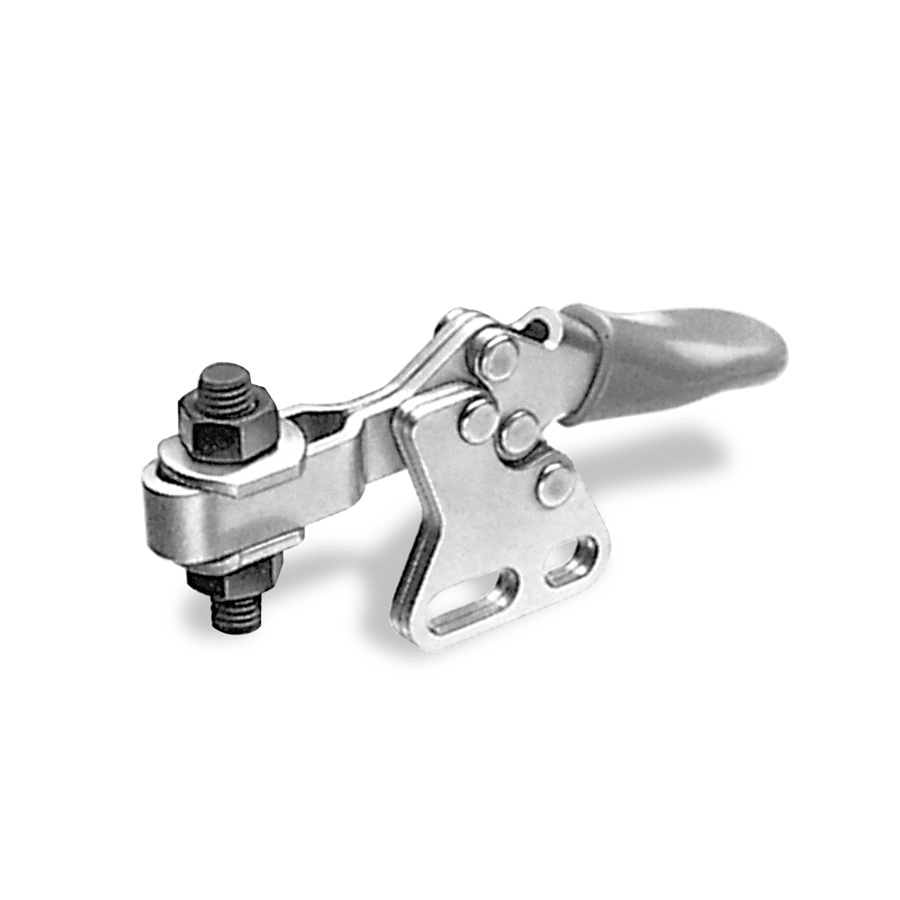

Clamp made of galvanized steel. Handle cover in orange oil-resistant plastic. Clamp supplied with complete fastening material.

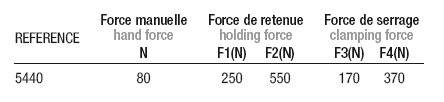

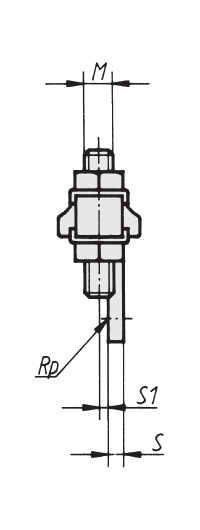

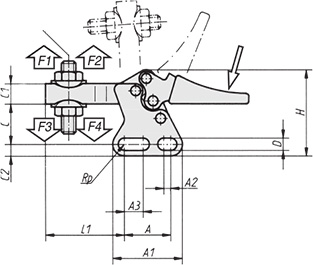

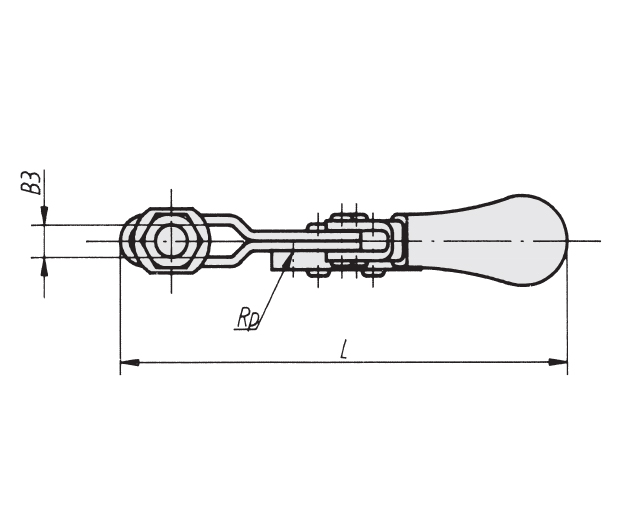

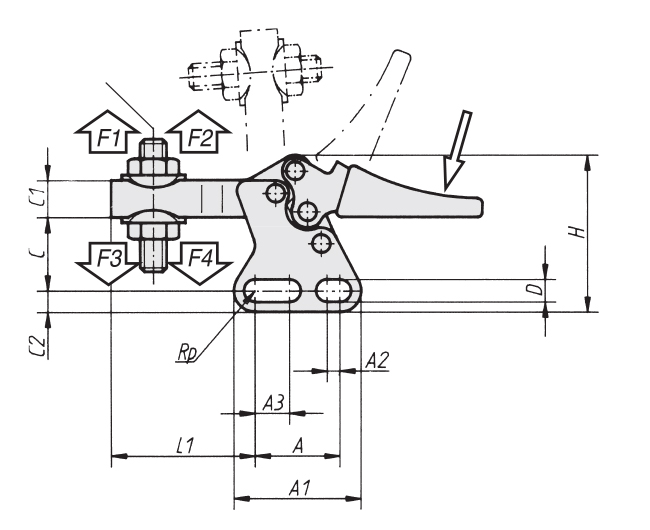

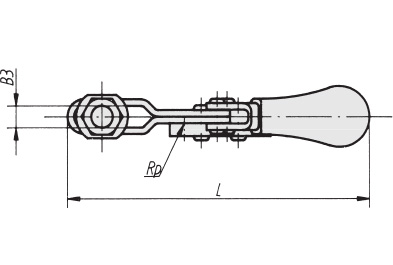

REF DESIGNATION M A A1 A2 A3 B3 C C1 C2 D F1 F2 F3 F4 H L L1 N S S1 Wgt. (kg) 3D Quote
5440 HORIZONTAL MINI-CLAMP H1-B M5x20 16 24,5 2,4 6,5 5,2 14 7 4 4,2 250 550 170 370 29 70 26 80 2 1,5 0,033
