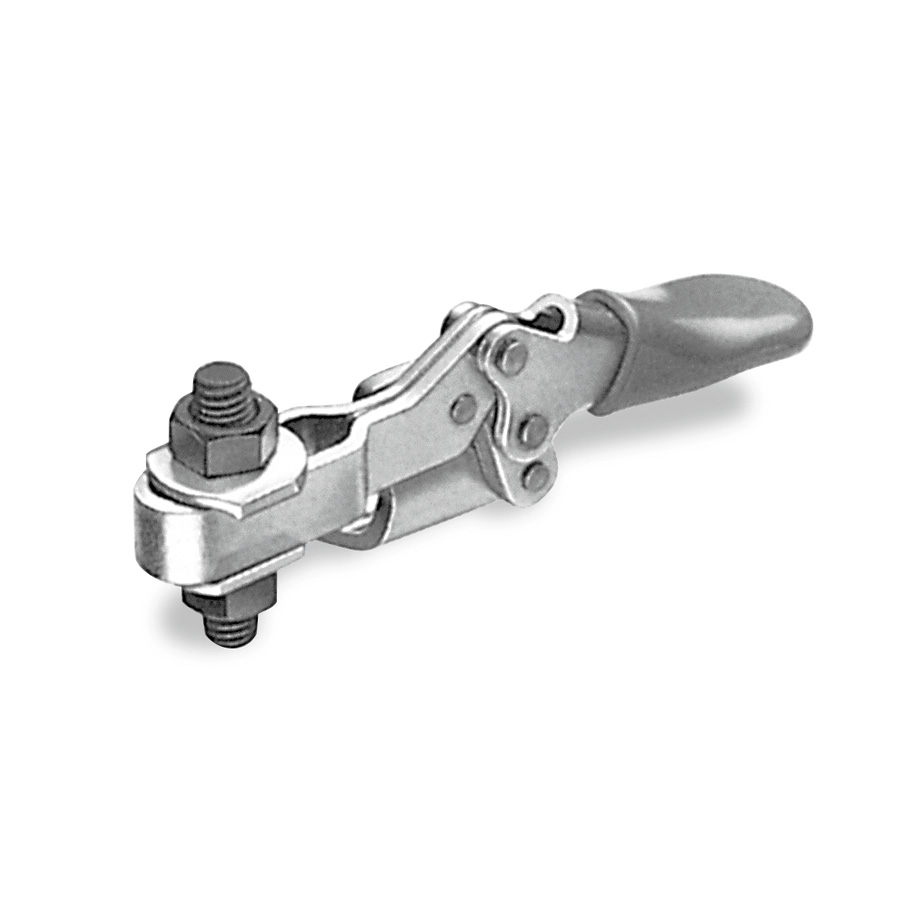

Mini horizontal clamp H2-BR
Clamp made of galvanized steel. Handle cover in orange oil-resistant plastic. Clamp supplied complete with fastening material.

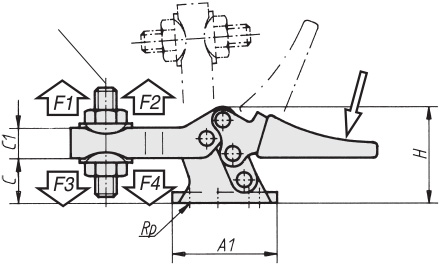

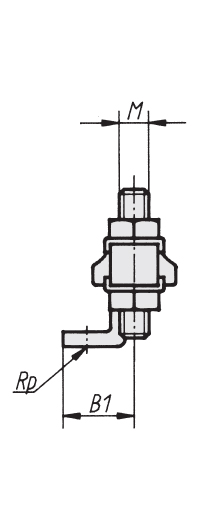

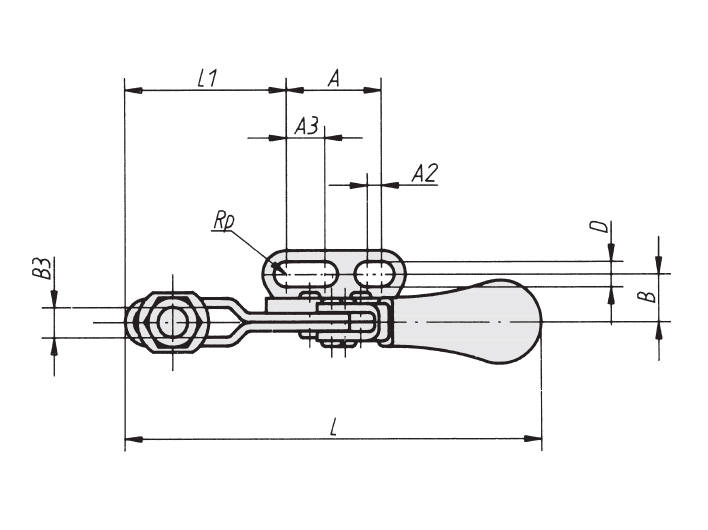

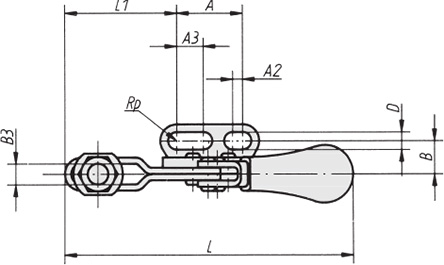

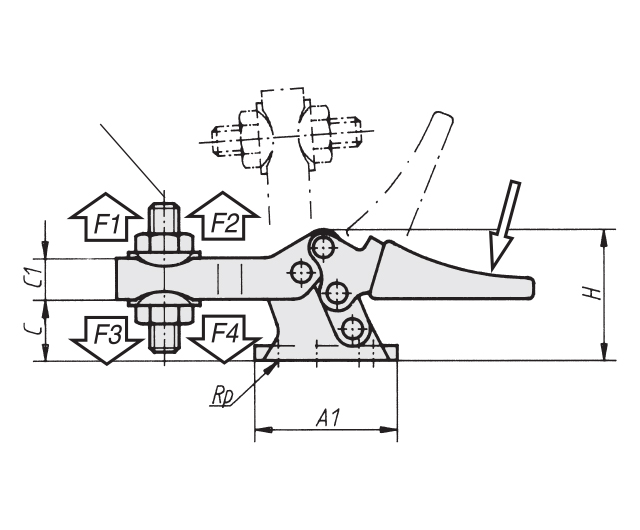

REF | DESIGNATION | M | A | A1 | A2 | A3 | B | B1 | B3 | C | C1 | D | F1 | F2 | F3 | F4 | H | L | L1 | N | Wgt. (kg) | 3D | Quote |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5435 | HORIZONTAL MINI-CLAMP H2-BR 550N | M5x20 | 16 | 24 | 2,4 | 6,5 | 8 | 12 | 5,2 | 11,5 | 7 | 4,2 | 250 | 550 | 170 | 370 | 22,5 | 70 | 26 | 80 | 0,02 |
