Toggle clamps

Small-size clamps / miniature clamps

Mini push pull clamp

Small-size clamps / miniature clamps : Mini push pull clamp
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

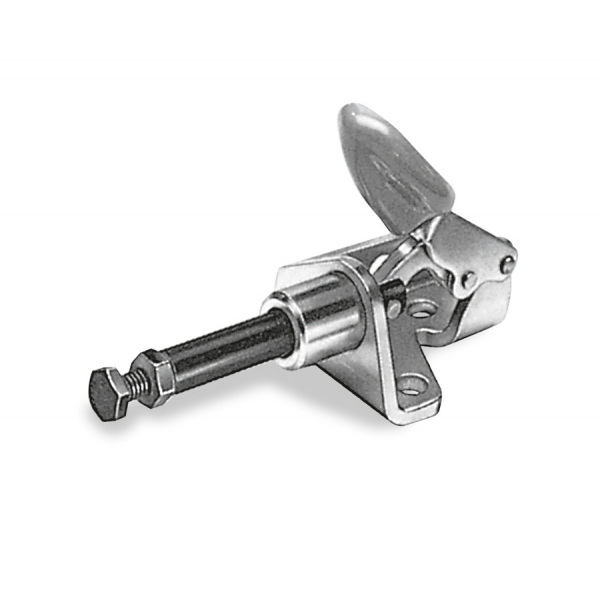

Clamp made of galvanized steel. Supplied with neoprene pressure pad. Handle cover in orange oilresistant plastic.

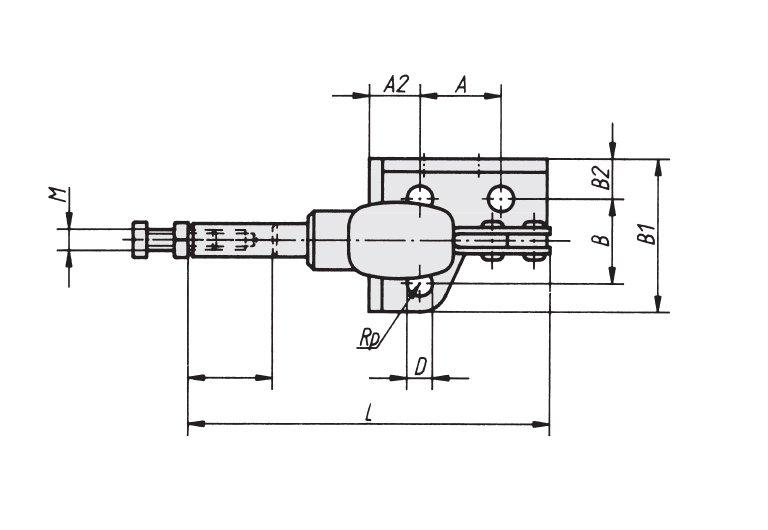

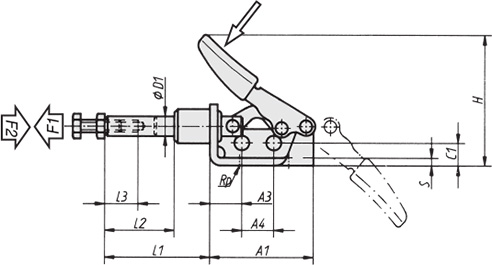

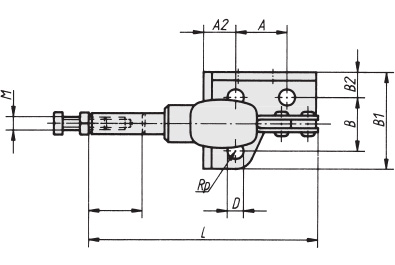

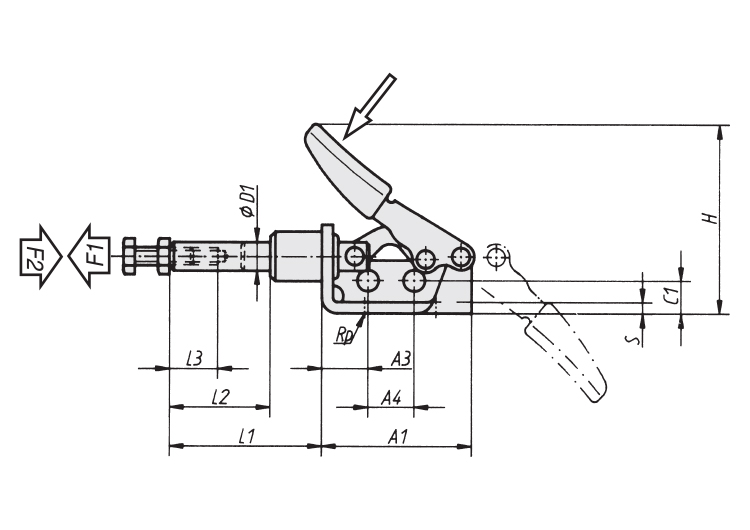

REF DESIGNATION M A A1 A2 A3 A4 ANG1L B B1 B2 C C1 COURSE D D1 E F1 F2 H L L1 L2 L3 N 3D Quote
5420 PUSH-PULL MINI-CLAMP 500N M4 16 33 7 8 11 190 16 28,5 7,5 13 7,5 16 4,8 6,35 15,5 500 500 42 67 34 22 12 80
