Push-pull clamp PK

Push-pull clamp PT

3D visualisation

Technical specifications

Add to favourites

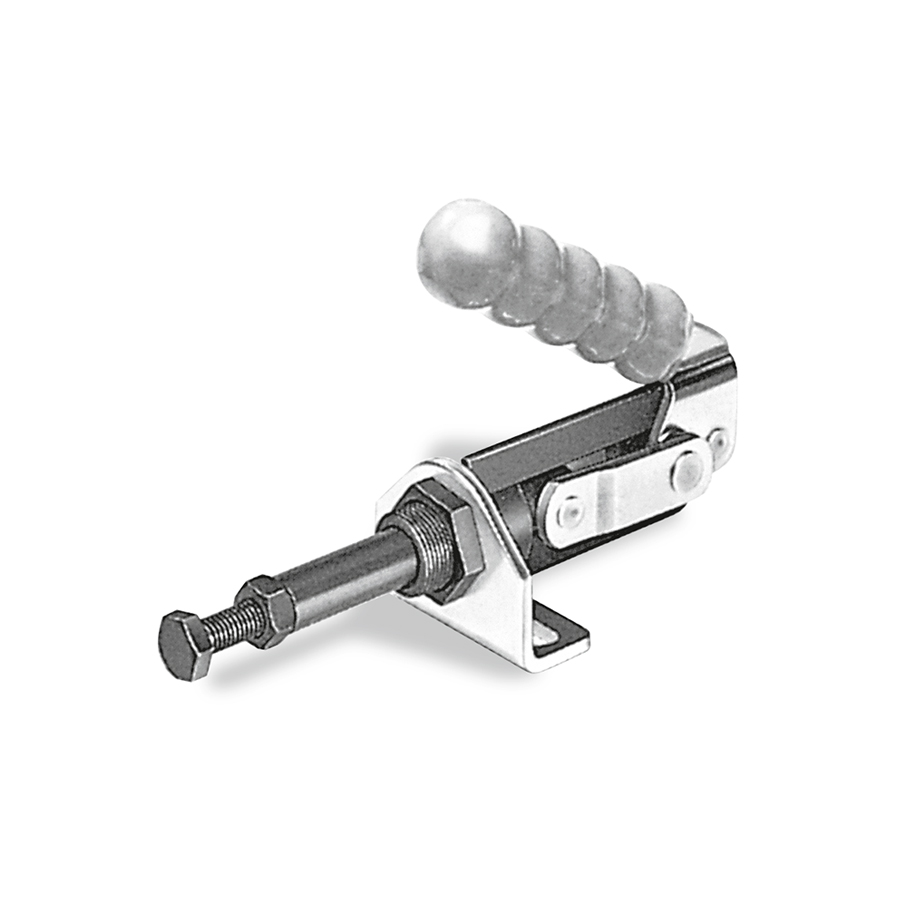

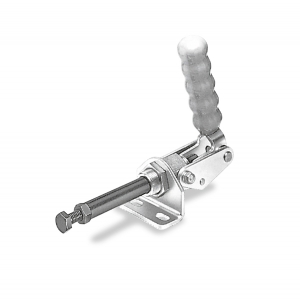

Clamp made of galvanized steel. Handle cover in orange oil-resistant plastic.

Loading, please wait...

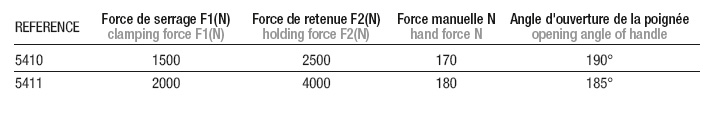

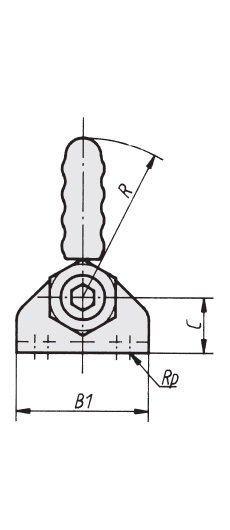

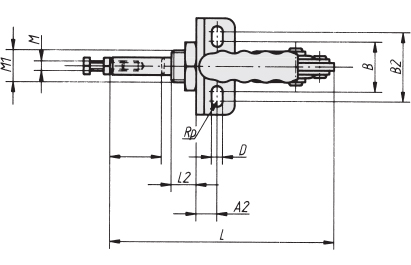

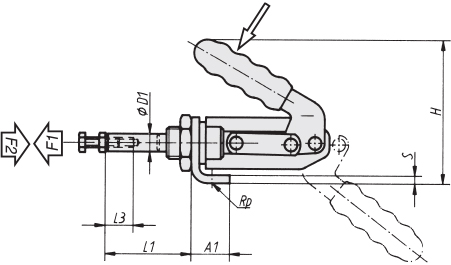

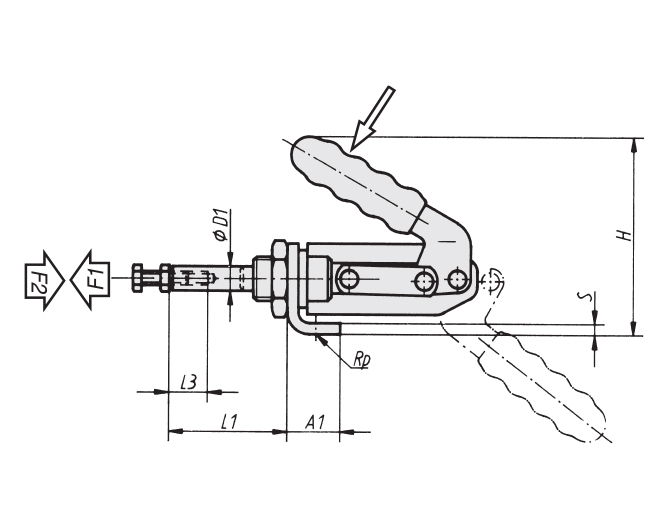

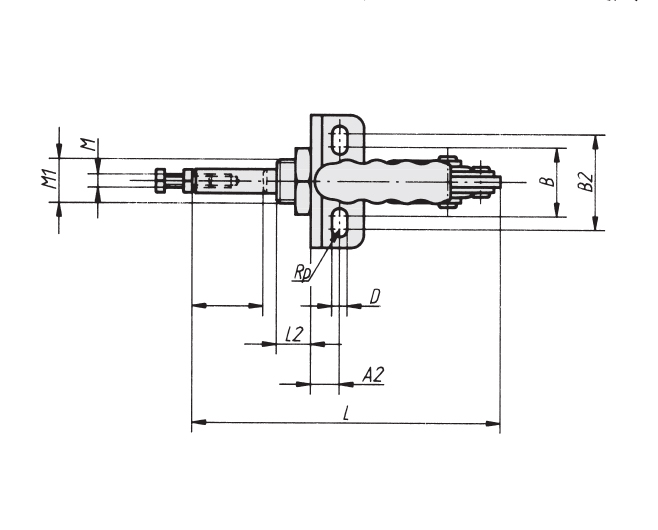

REF	DESIGNATION	M	A2	ANG1L	B	B1	B2	C	COURSE	D	D1	F1	F2	H	L	L1	L2	L3	N	R	M1	3D	Quote
5410	PUSH-PULL CLAMP 2500N	M6x25	14	190	30	57	42	25	32	6,5	11,1	1500	2500	85	135	53	14	12	170	60	M20x1,5
5411	PUSH-PULL CLAMP 4500N	M10x50	18	185	30	64	45	30	38	8,5	16	2000	4000	120	173	60	17	20	180	90	M24x1,5
