Push-pull clamp PV

3D visualisation

Technical specifications

Add to favourites

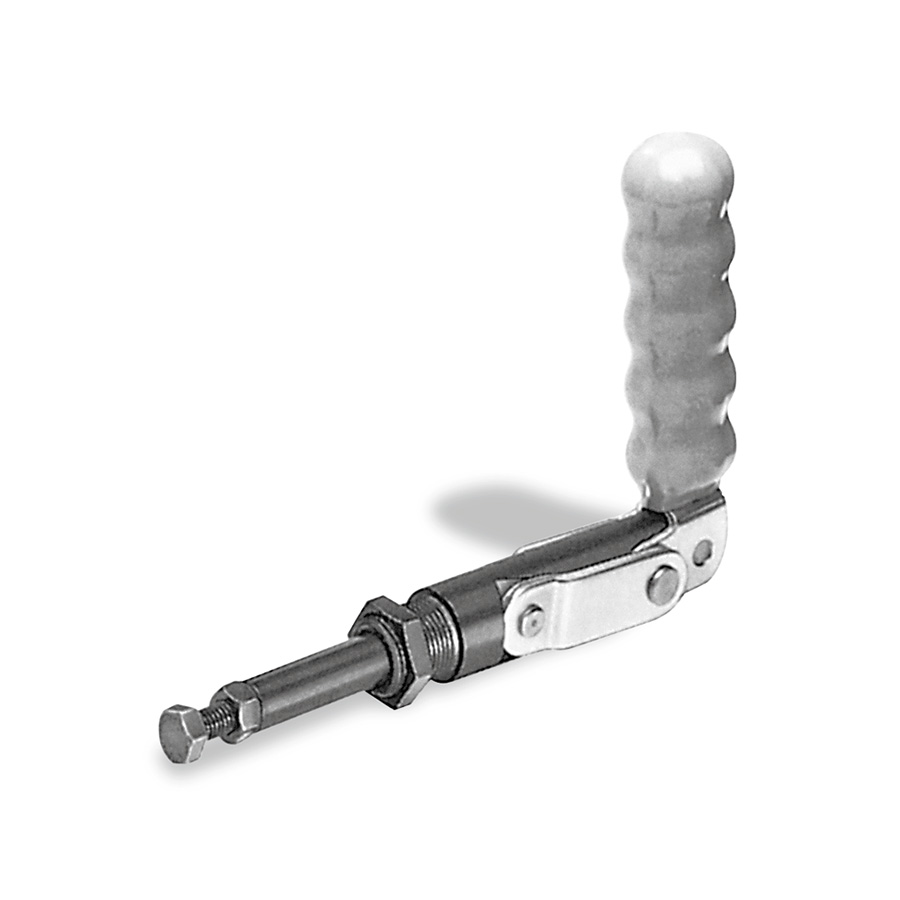

Clamp made of galvanized steel. Handle cover in orange oil-resistant plastic.

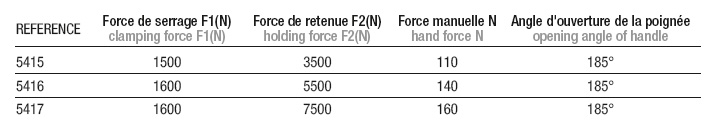

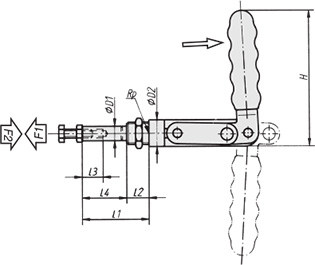

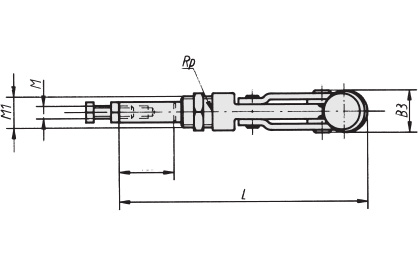

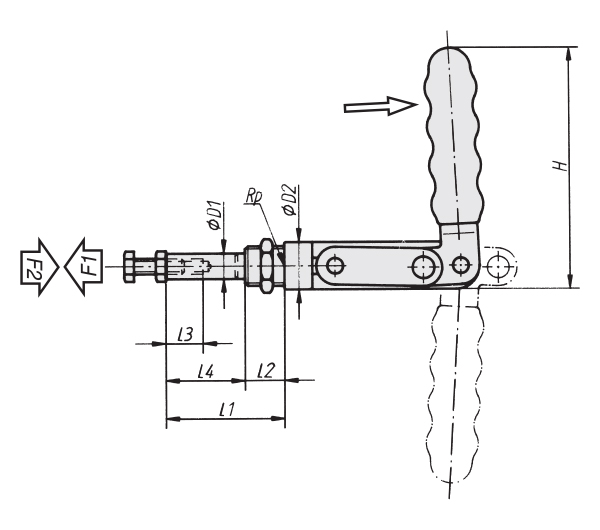

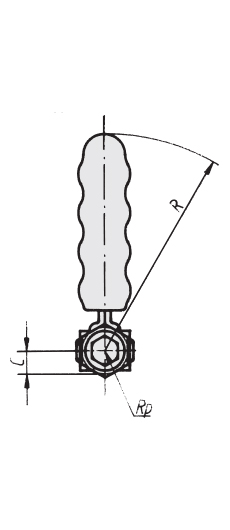

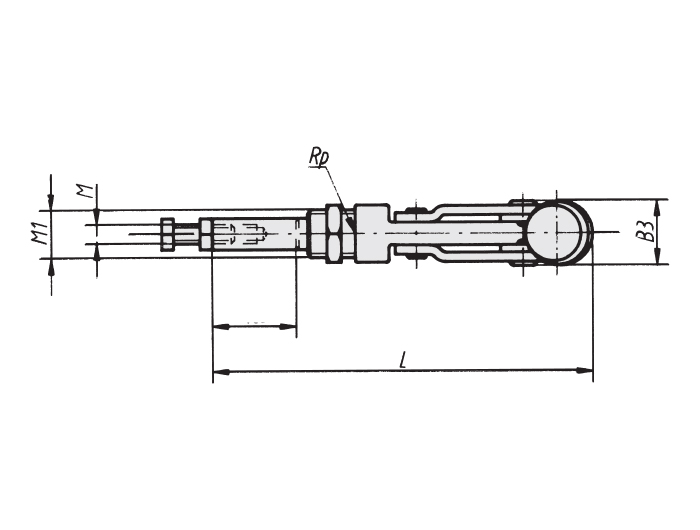

REF	DESIGNATION	M	ANG1L	B3	C	COURSE	D1	D2	F1	F2	H	L	L1	L2	L3	L4	N	R	M1
5415	PUSH-PULL CLAMP 3500N	M6x25	185	23	9,5	25	10	19	1500	3500	106,5	123	49	16	18	33	110	97	M16x1,5
5416	PUSH-PULL CLAMP 5500N	M8x40	185	27	12	38	13	24	1600	5500	130	162	60	20	30	40	140	118	M20x1,5
5417	PUSH-PULL CLAMP 7500N	M10x50	185	35	14,25	66	16	28,5	1600	7500	149,3	238	93	23	40	70	160	135	M24x1,5
