Toggle clamps

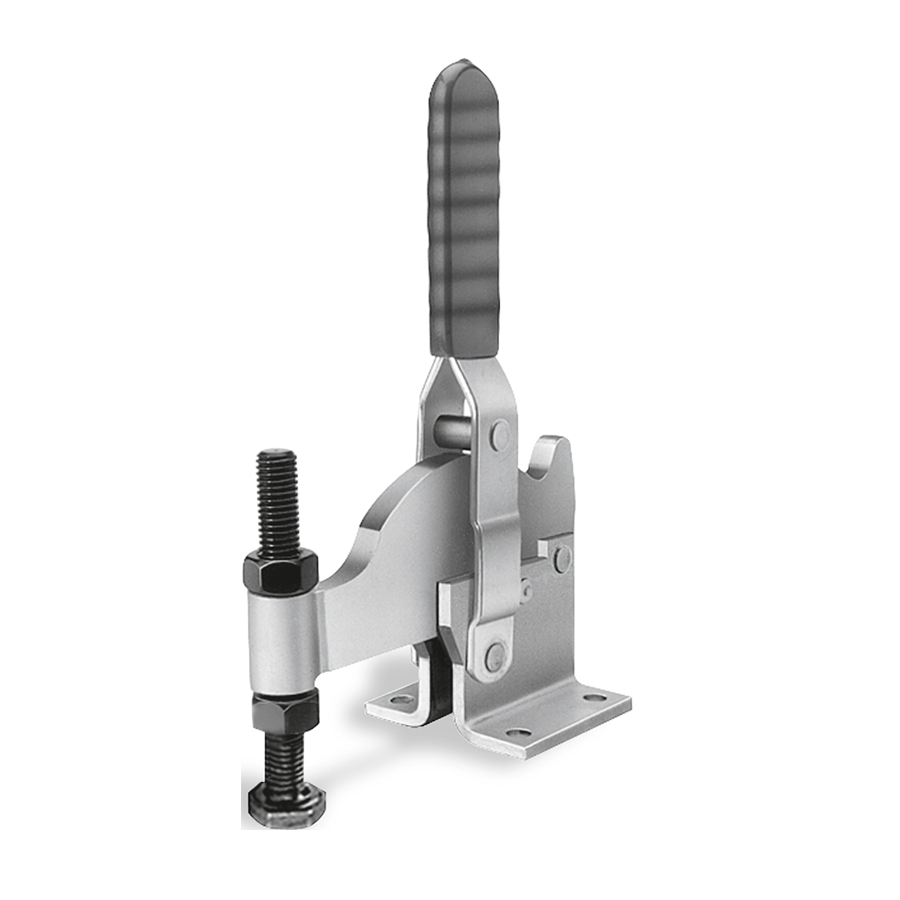

Vertical clamp CV

3D visualisation

Technical specifications

Add to favourites

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

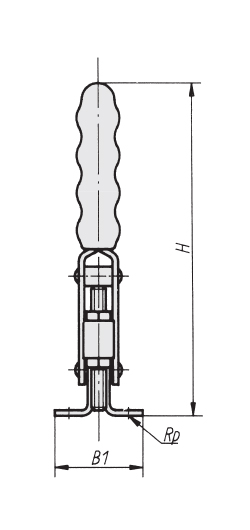

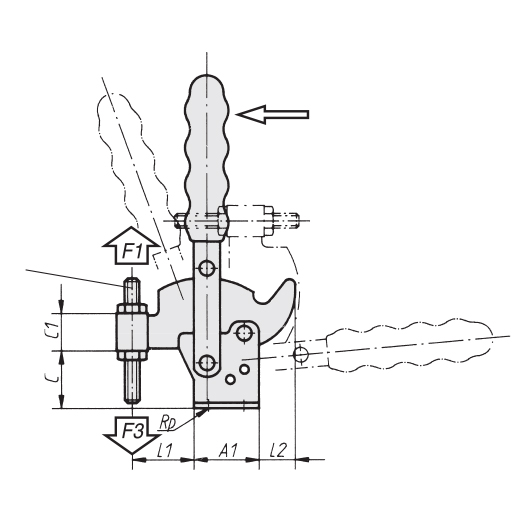

REF	DESIGNATION	M	A	A1	A2	B	B1	C	D1	D	F	H	L	L11	L2
5951	VERTICAL CLAMP CV 750N	M5x35	16	26	5	24	34	16	9,5	4,4	750	98	52	22	7
5952	VERTICAL CLAMP CV	M8x60	19	35	8	32	45	32	17,5	7,1	2500	175	74	32	20
5953	VERTICAL CLAMP CV 3500N	M10x80	32	50	9	45	64	43	22	8,3	3500	220	116	60	13
