Vertical clamp V1-B

Vertical clamps : Vertical clamp V1-B
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

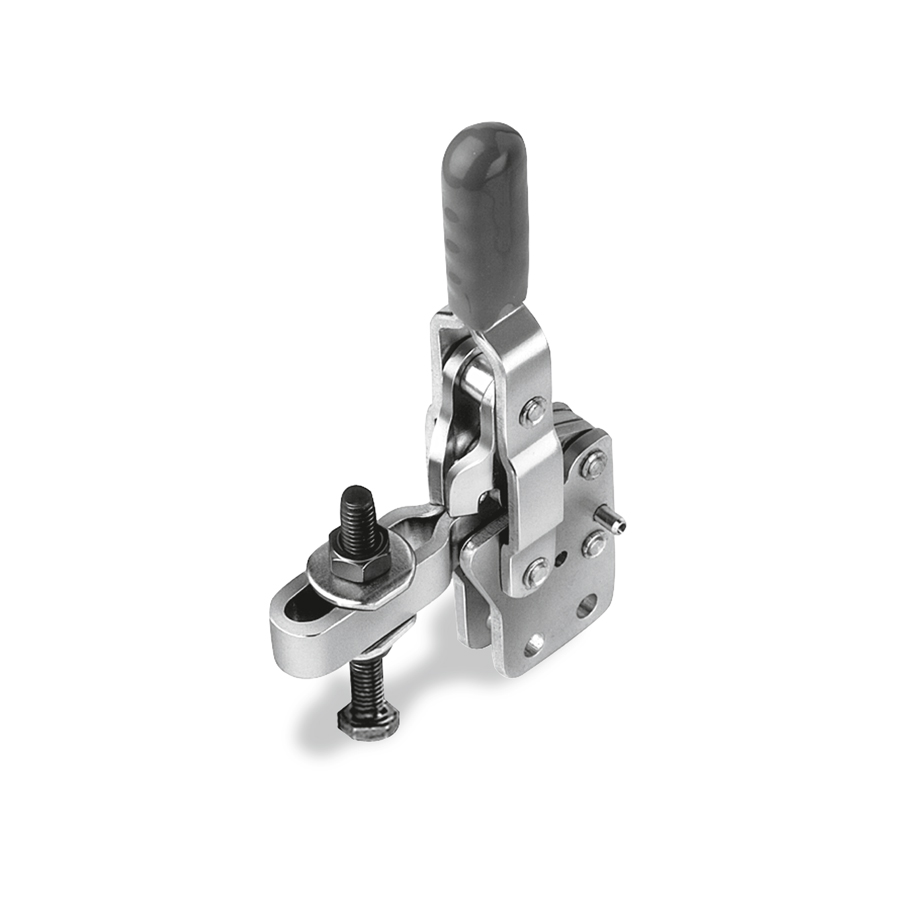

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

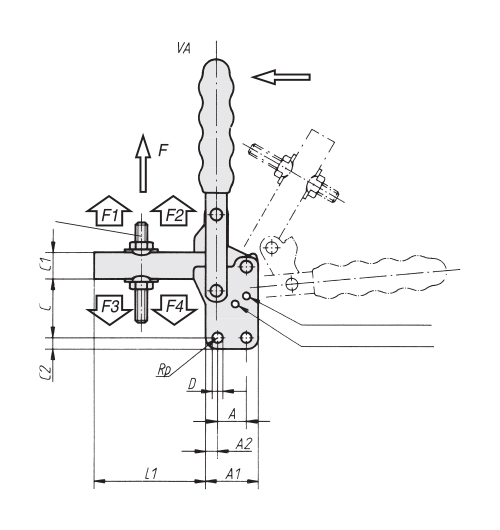

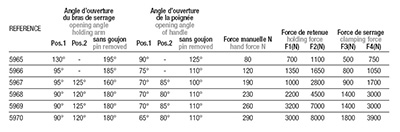

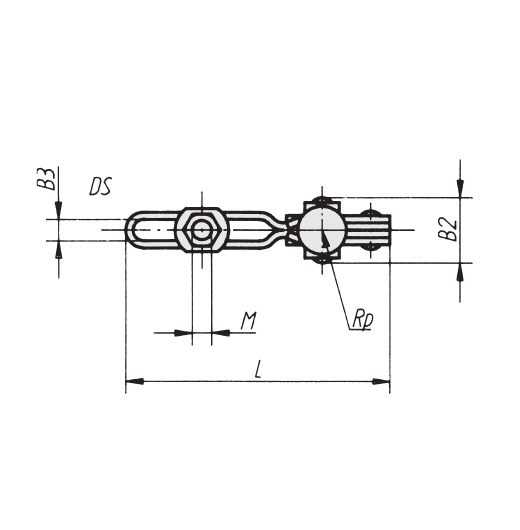

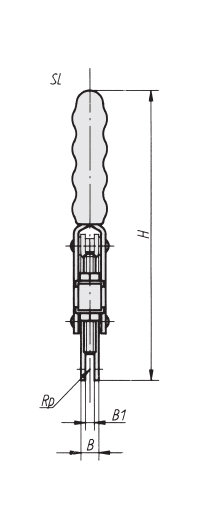

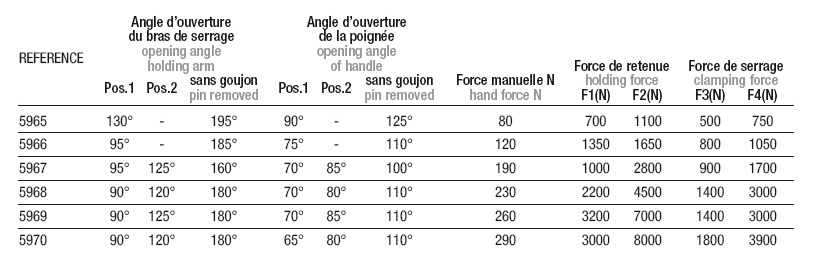

REF DESIGNATION M A A1 A2 ANG1B ANG1L ANG2B ANG2L ANG3B ANG3L B B1 B2 B3 C C1 C2 D F H L L1 3D Quote
5965 VERTICAL CLAMP V1-B 750N M5x35 16 26 5 130 90 0 0 195 125 8 4 17 5,5 22 9 5 4,4 750 106 57 31
5966 VERTICAL CLAMP V1-B 1500N M6x50 12,7 27 7 95 75 0 0 185 110 12 6 24 6,4 28 11 5,4 5,1 1500 135 70 43
5967 VERTICAL CLAMP V1-B 2500N M8x60 19 35 8 95 70 125 85 160 100 12 6 23 8,8 39 17,5 7 7,1 2500 190 110 75
5968 VERTICAL CLAMP V1-B 3500N M10x80 32 50 9 90 70 120 80 180 110 16 8 30 10,6 54 22 9,6 8,3 3500 240 146 95
5969 VERTICAL CLAMP V1-B 4500N M12x100 32 53 10 90 70 125 85 180 110 20 10 37 13,2 59 25 8,7 8,7 4500 246 175 122
5970 VERTICAL CLAMP V1-B 5500N M16x150 51 76 12,5 90 65 120 80 180 110 20 10 38 16,5 102 32 12,7 12,3 5500 345 230 154
