Vertical clamp V2-C

Vertical clamps : Vertical clamp V2-C
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

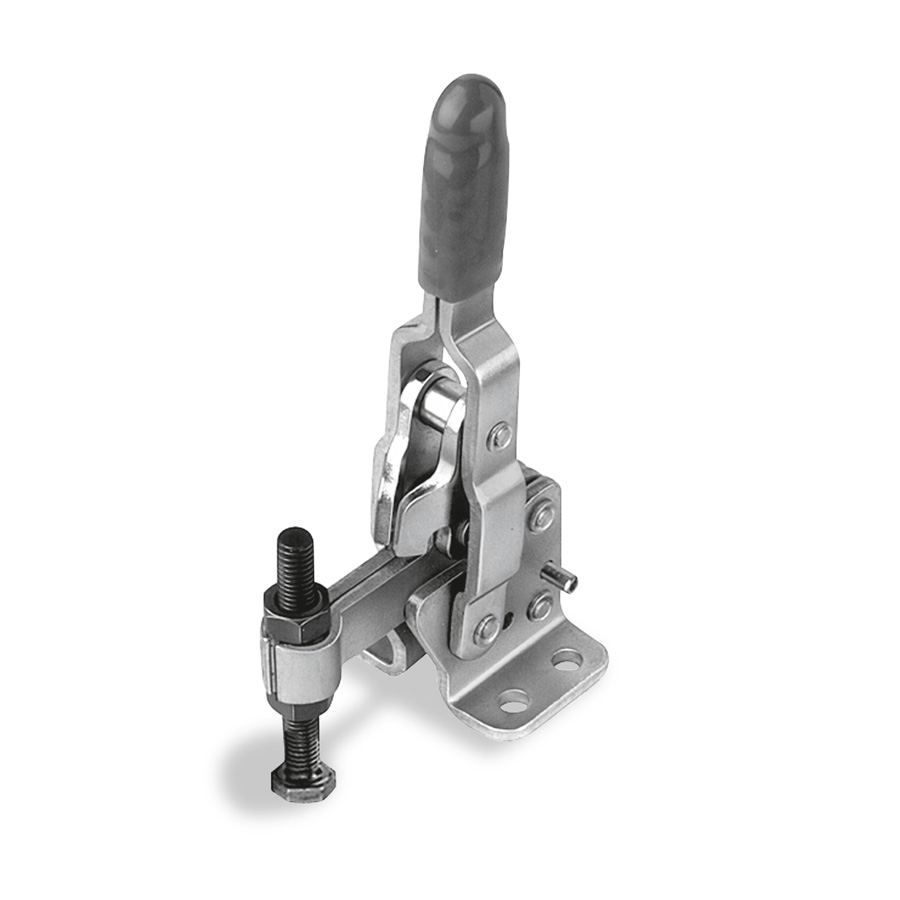

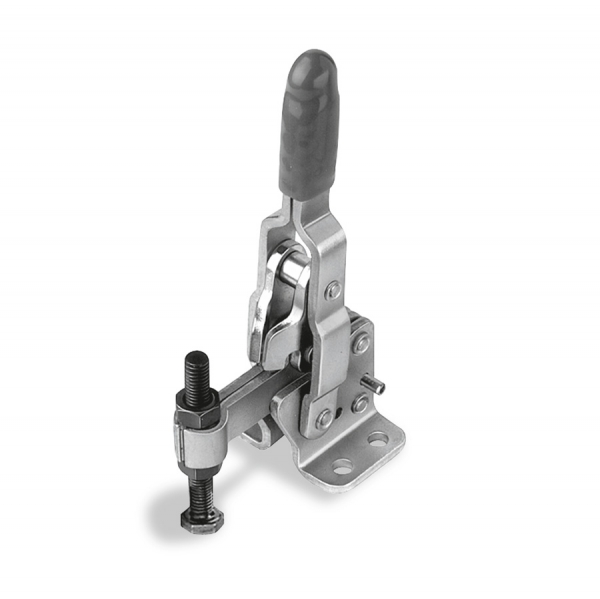

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

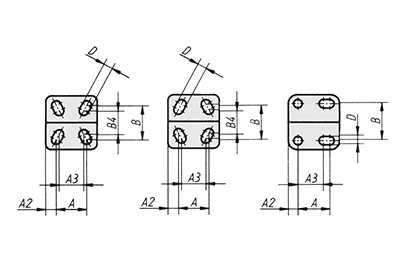

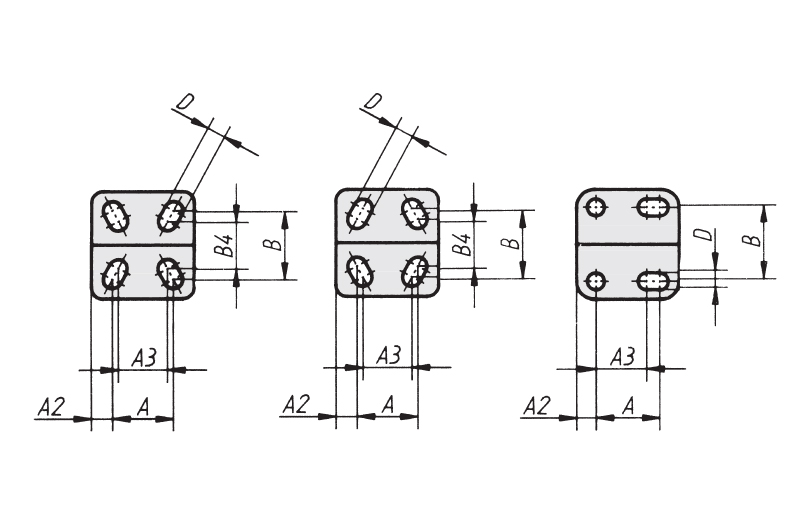

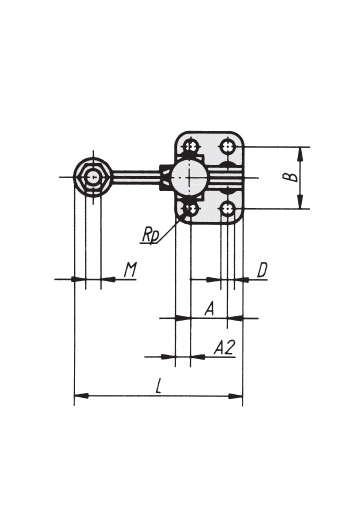

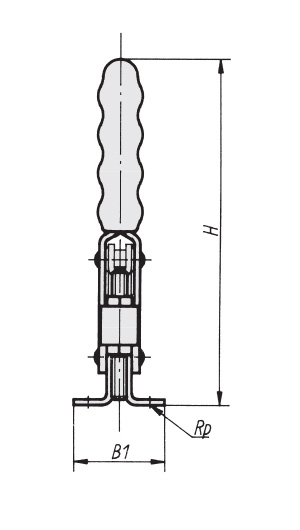

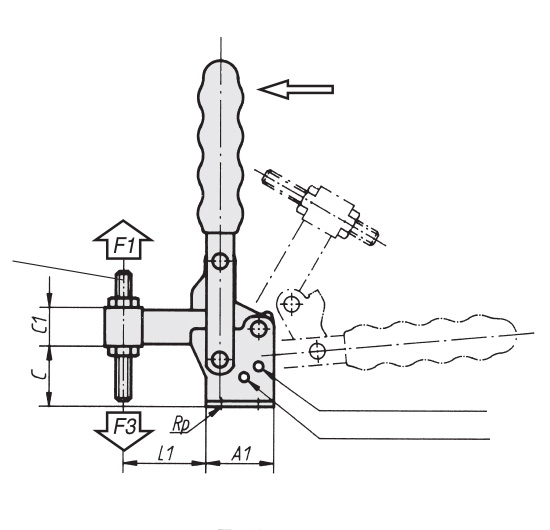

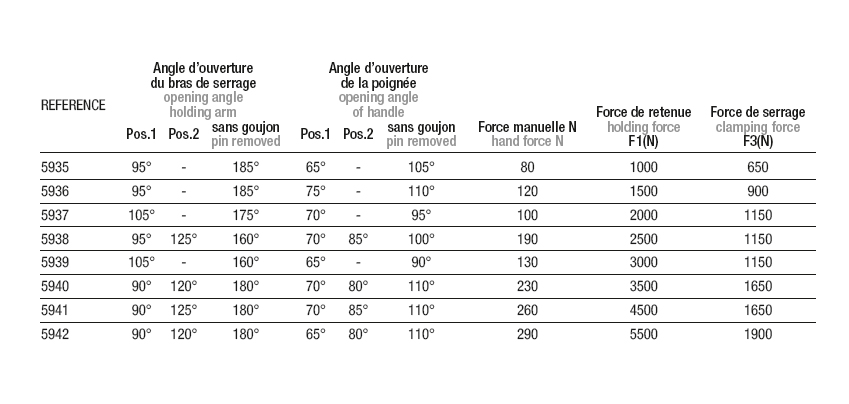

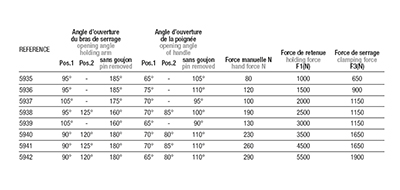

REF DESIGNATION M A A1 A2 A3 ANG1B ANG1L ANG2B ANG2L ANG3B ANG3L B B1 B4 C C1 D F H L L1 3D Quote
5935 VERTICAL CLAMP V2-C 1000N M5x35 16 28 6 14 95 65 0 0 185 105 24 34 17,5 22 9,5 4,8 1000 103 65 32
5936 VERTICAL CLAMP V2-C 1500N M6x50 12,7 27 7 0 95 75 0 0 185 110 27 38 0 23 11 5,1 1500 125 60 26
5937 VERTICAL CLAMP V2-C 2000N M6x50 19 35 8 12,7 105 70 0 0 175 95 27 42 25 29 12,7 5,5 2000 135 77 35
5938 VERTICAL CLAMP V2-C 2500N M8x60 19 35 8 0 95 70 125 85 160 100 32 45 0 32 17,5 7,1 2500 175 88 45
5939 VERTICAL CLAMP V2-C 3000N M8x60 25 43 9 19 105 65 0 0 160 90 34,5 51 0 34 19 8 3000 186 114 65
5940 VERTICAL CLAMP V2-C 3500N M10x80 32 50 9 0 90 70 120 80 180 110 45 64 0 43 22 8,3 3500 220 124 65
5941 VERTICAL CLAMP STEEL 4500N FIXED SPINDLE M12x100 32 53 10 0 90 70 125 85 180 110 45 64 0 51 25 8,7 4500 228 137 74
5942 VERTICAL CLAMP V2-C 5500N M16x150 51 76 12,5 0 90 65 120 80 180 110 70 95 0 82 32 12,3 5500 312 197 108
