Vertical clamp V3-C

3D visualisation

Technical specifications

Add to favourites

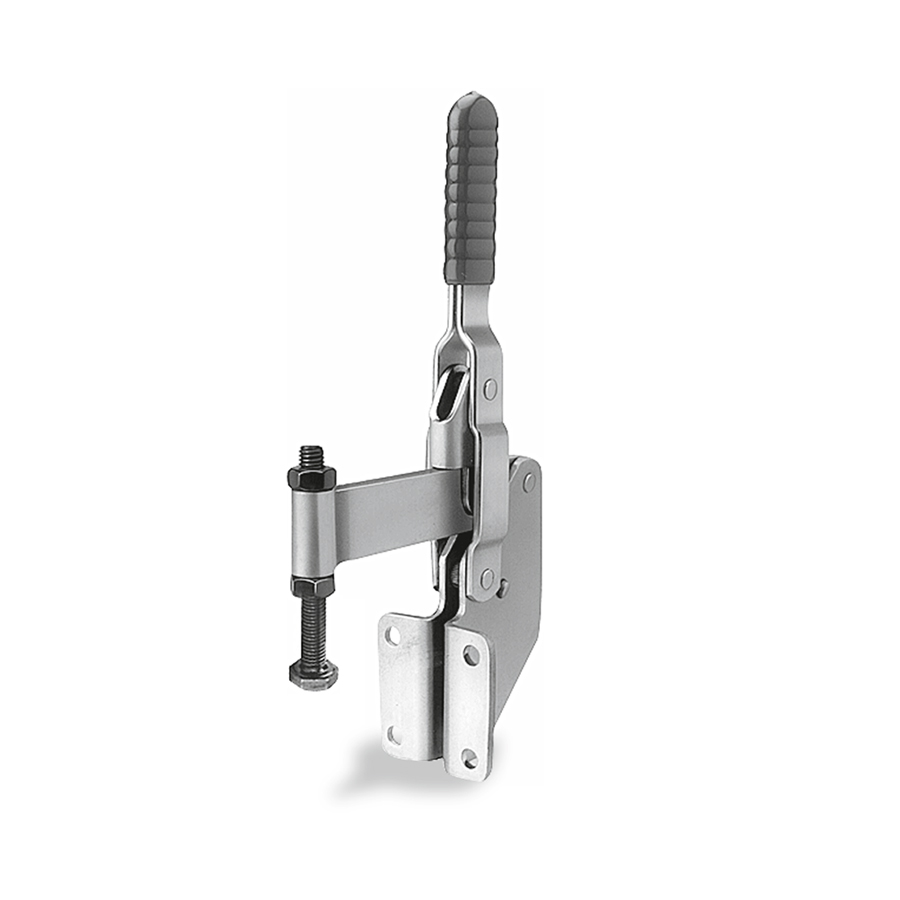

Clamp made of galvanized steel. Clamp supplied complete with fastening material. Handle cover in orange oil-resistant plastic.

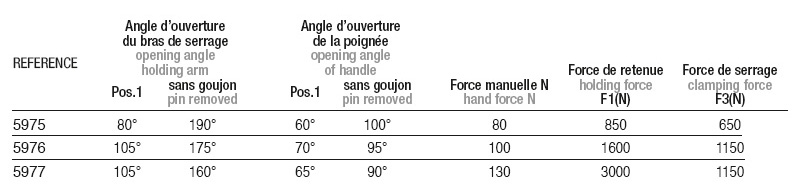

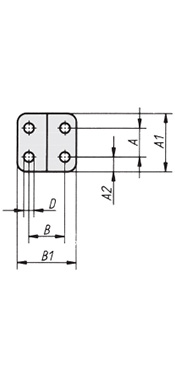

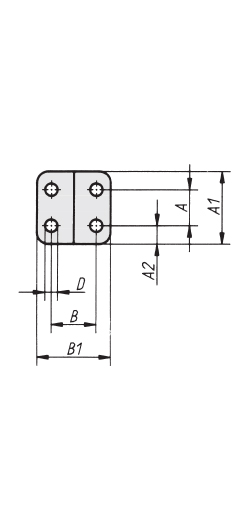

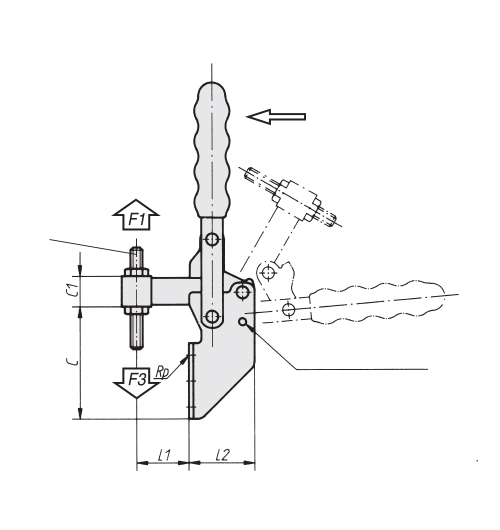

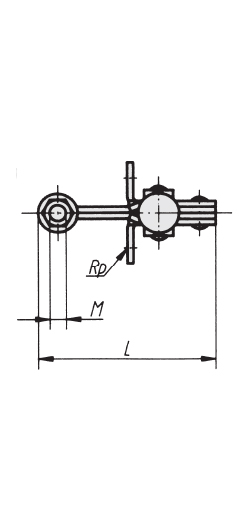

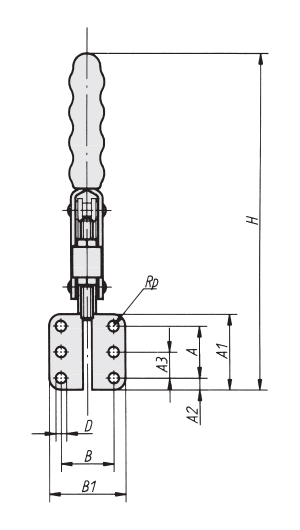

REF	DESIGNATION	M	A	A1	A2	A3	ANG1B	ANG1L	ANG3B	ANG3L	B	B1	C	C1	D	F	H	L	L1	L2
5975	VERTICAL CLAMP V3-C 1000N	M5x35	14	29	7,5	0	80	60	190	100	17,5	28	44	9,5	4,8	1000	122	65	24,5	36
5976	VERTICAL CLAMP V3-C 2000N	M6x50	19	35	8	0	105	70	175	95	26	42	64	12,7	5,5	2000	170	77	27	44
5977	VERTICAL CLAMP V3-C 3000N	M8x60	35	51	8	16	105	65	160	90	35	51	82	19	6,8	3000	235	114	58	50
