Vertical latch clamp

Hook and latch clamps : Vertical latch clamp
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites

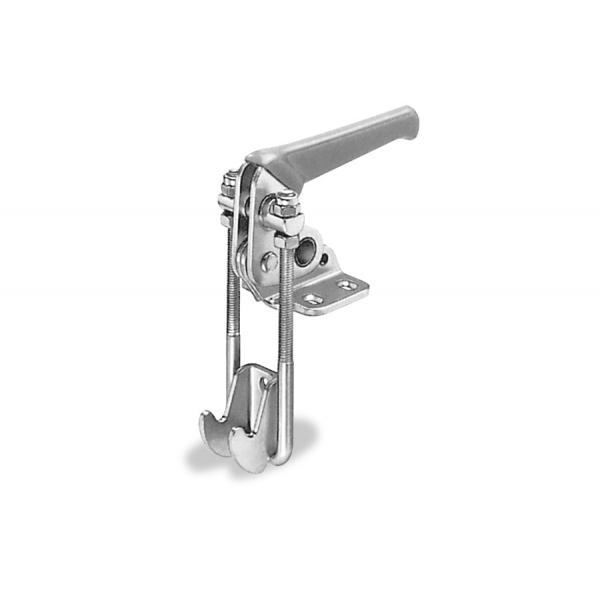

Clamp made of galvanized steel or stainless steel AISI 304. Supplied with latch. Handle cover in orange oilresistant plastic.

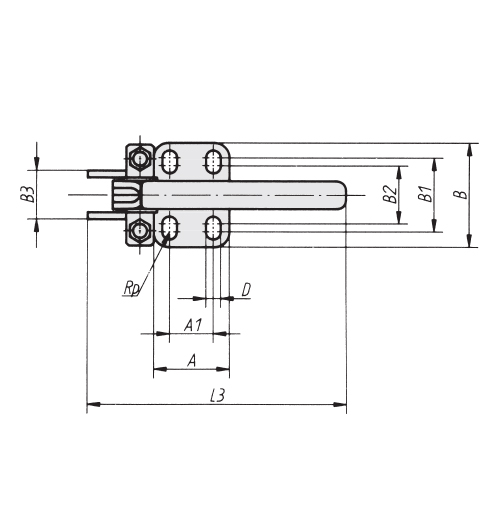

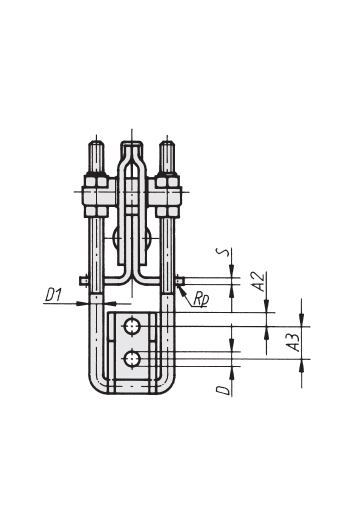

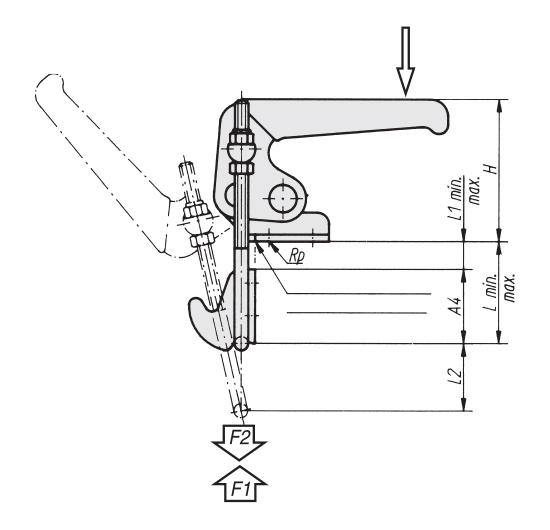

REF DESIGNATION A A1 A2 A3 A4 ANG1L B B1 B2 B3 D D1 F1 H L min-max L1 min-max L2 L3 3D Quote
5916 VERTICAL LATCH CLAMP 2000N 26 13 4,5 11 23 120 36 24 19 16 5,2 4 1800 42 24 - 48 janv-25 22 76
5917 VERTICAL LATCH CLAMP 4000N 35 19 6 14 32 120 47 32 25 21 6,5 6 2700 63 33 - 60 janv-28 34 115
5918 VERTICAL LATCH CLAMP 7000N 51 32 8 19 40 120 64 45 36 28 8,5 8 4500 84 41 - 80 janv-40 45 152
5916i VERTICAL LATCH CLAMP STAINL. 2000N 26 13 4,5 11 23 120 36 24 19 16 5,2 4 1800 42 24 - 48 janv-25 22 76
5917i VERTICAL LATCH CLAMP STAINL. 4000N 35 19 6 14 32 120 47 32 25 21 6,5 6 2700 63 33 - 60 janv-28 34 115
5918i VERTICAL LATCH CLAMP STAINL. 7000N 51 32 8 19 40 120 64 45 36 28 8,5 8 4500 84 41 - 80 janv-40 45 152
