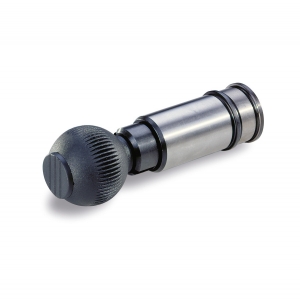

High precision index plunger

with conical tip

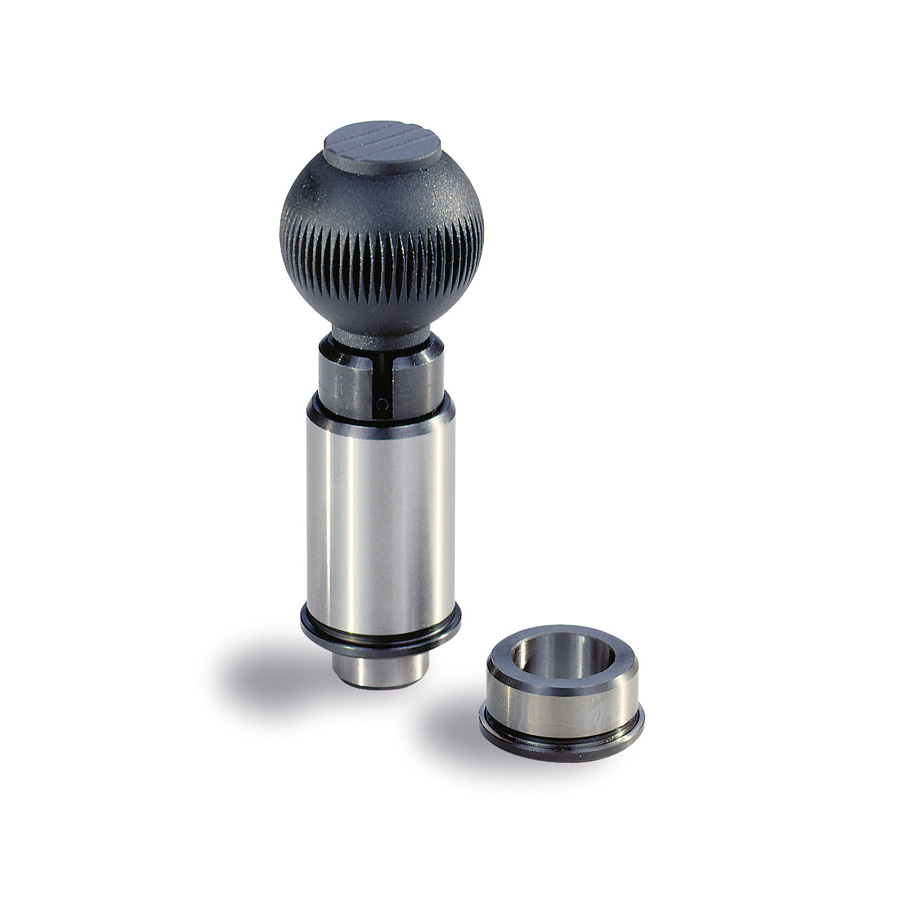

High precision index plunger

with cylindrical tip

Indexing plungers : High precision index plunger with cylindrical tip
  • Reach
  • Rohs
3D visualisation
Technical specifications
Add to favourites
Precision index plunger and socket in steel hardened and ground. Grip in  reinforced polyamid, anthracite grey.

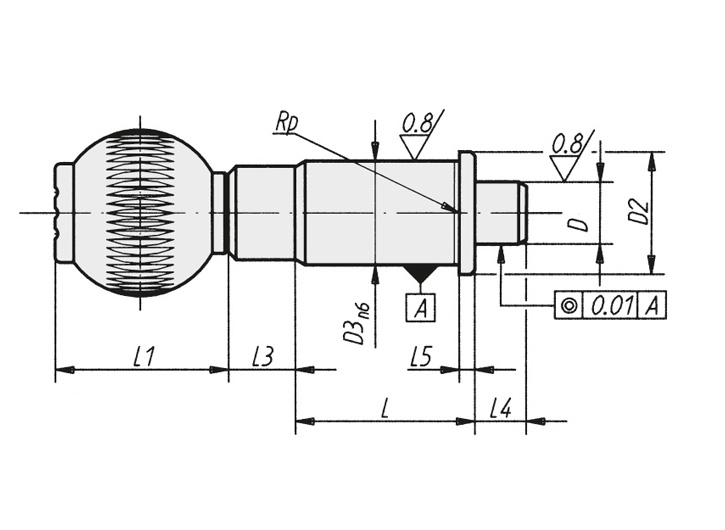

01 / Without slot

Schéma 1 + High precision index plunger with cylindrical tip
REF DESIGNATION D D1 D2 D3n6 L L1 L2 L3 L4 L5 Wgt. (g) 3D Quote
9521 INDEX PLUNGER STEEL Dh6=12 12 32 23 20 35 33 44,5 13 10 3 127
9522 INDEX PLUNGER STEEL Dh6=20 20 40 33 30 50 41,5 53 13 10 3 350
9523 INDEX PLUNGER STEEL Dh6=25 25 50 42 38 60 51 62,5 13 10 3 655

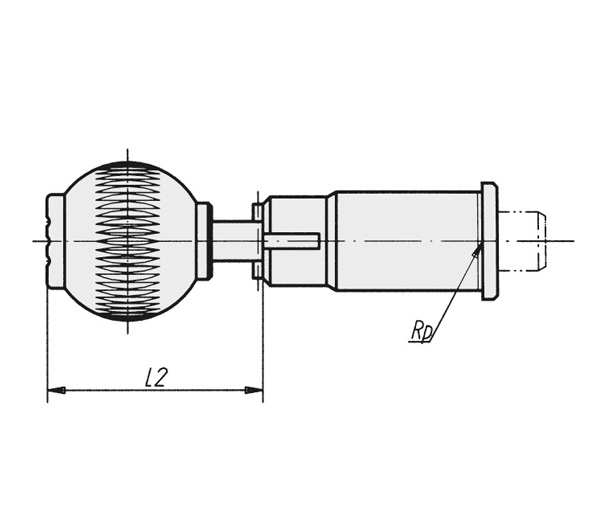

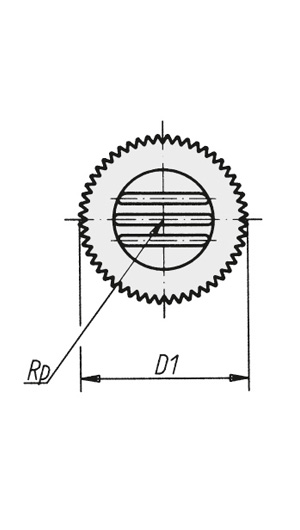

02 / With slot

REF DESIGNATION D D1 D2 D3n6 L L1 L2 L3 L4 L5 Wgt. (g) 3D Quote
9524 INDEX PLUNGER STEEL Dh6=12 SLOT 12 32 23 20 35 33 44,5 13 10 3 127
9525 INDEX PLUNGER STEEL Dh6=20 SLOT 20 40 33 30 50 41,5 53 13 10 3 350
9526 INDEX PLUNGER STEEL Dh6=25 SLOT 25 50 42 38 60 51 62,5 13 10 3 655

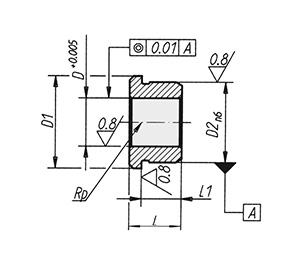

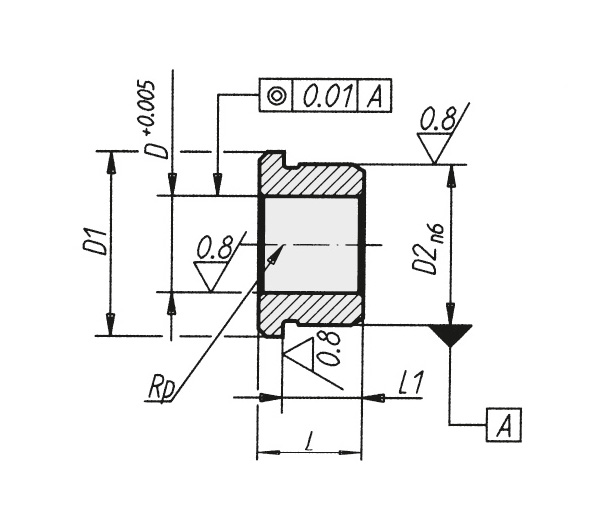

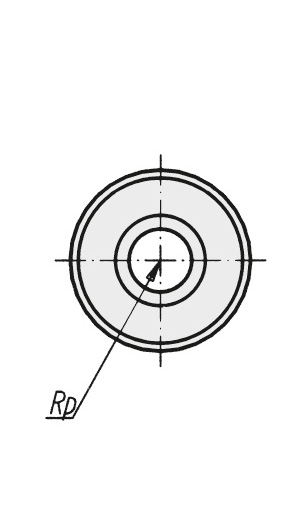

03 / Cylindrical socket

REF DESIGNATION D D1 D2n6 L L1 Wgt. (g) 3D Quote
9527 SOCKET CYLINDRIC STEEL D.12 12 23 20 13 10 15
9528 SOCKET CYLINDRIC STEEL D.20 20 33 30 16 13 45
9529 SOCKET CYLINDRIC STEEL D.25 25 42 38 19 16 100
