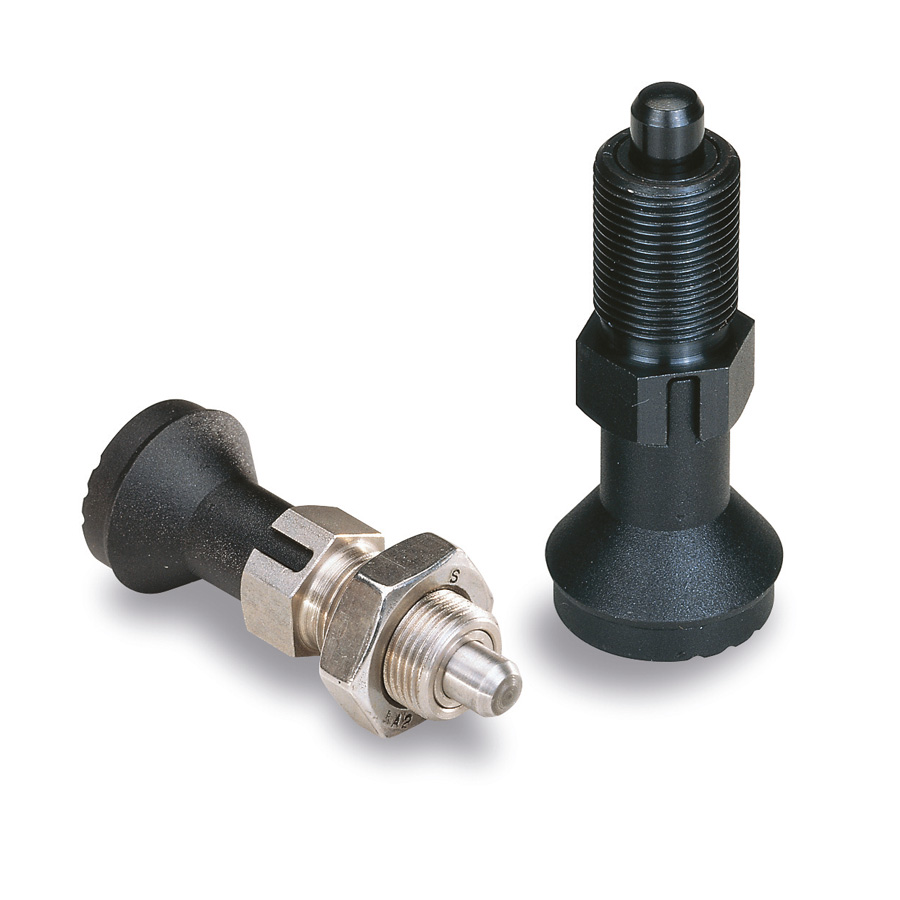

Indexing plungers : Index plunger with locking slot
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Grip in polyamid, fiberglass-reinforced. Steel version : plunger in steel 5.8, black oxide finish. Locking pin hardened and ground. Stainless steel version : plunger in stainless steel 1.4305 and locking pin in hardened stainless steel 1.4034 ground. Resistance to shearing : 1021N (M10x1,0) 1470N (M12x1,5) 2614N (M16x1,5) 2810N (M20x1,5).

AVAILABLE VERSIONS

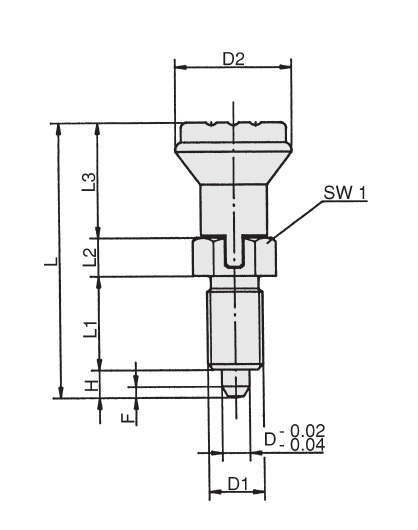

Schéma 1 + Index plunger with locking slot

01 / Without locknut

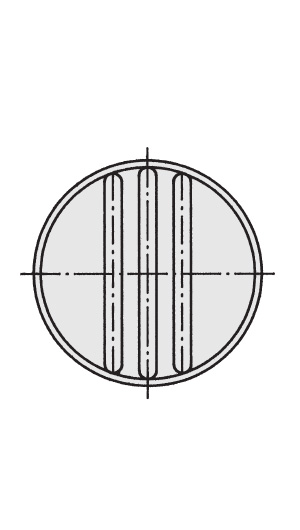

Schéma 2 + Index plunger with locking slot
REF DESIGNATION D1 D D2 Fx30° H L L1 L2 L3 SW1 Wgt. (g) 3D Quote
8251 INDEX PLUNGER STEEL D.21 M10*1 SLOT M10x1,0 5 21 1,3 5 47 17 7 18 13 32
8252 INDEX PLUNGER STEEL D.25 M12*1,5 SLOT M12x1,5 6 25 1,8 6 56 20 8 22 14 47
8253 INDEX PLUNGER STEEL D.33 M16*1,5 SLOT M16x1,5 8 33 2,3 8 74 26 10 30 19 98
8254 INDEX PLUNGER STEEL D.33 M20*1,5 SLOT M20x1,5 10 33 2,8 10 80 28 12 30 22 98
8251i INDEX PLUNGER STAINL. D.21 M10*1 SLOT M10x1,0 5 21 1,3 5 47 17 7 18 13 32
8252i INDEX PLUNGER STAINL. D25 M12*1,5 SLOT M12x1,5 6 25 1,8 6 56 20 8 22 14 47
8253i INDEX PLUNGER STAINL. D.33 M16*1,5 SLOT M16x1,5 8 33 2,3 8 74 26 10 30 19 98
8254i INDEX PLUNGER STAINL. D33 M20*1,5 SLOT M20x1,5 10 33 2,8 10 80 28 12 30 22 98

02 / With locknut

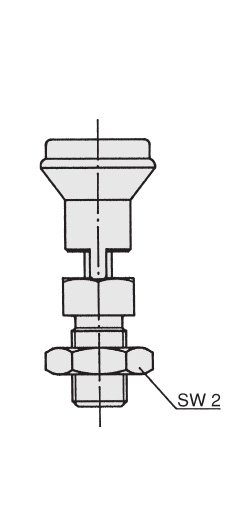

Schéma 3 + Index plunger with locking slot
REF DESIGNATION D1 D D2 H L L1 L2 SW1 SW2 Wgt. (g) 3D Quote
8241 INDEX PLUNGER STEEL D.21 M10*1 LOCKNUT/SLOT M10x1,0 5 21 5 47 17 7 13 17 37
8242 INDEX PLUNGER STEEL D.25 M12*1,5 LOCKNUT/SLOT M12x1,5 6 25 6 56 20 8 14 19 53
8243 INDEX PLUNGER STEEL D.33 M16*1,5 LOCKNUT/SLOT M16x1,5 8 33 8 74 26 10 19 24 102
8244 INDEX PLUNGER STEEL D.33 M20*1,5 LOCKNUT/SLOT M20x1,5 10 33 10 80 28 12 22 30 170
8241i INDEX PLUNGER STAINL. D.21 M10*1 LOCKNUT/SLOT M10x1,0 5 21 5 47 17 7 13 17 37
8242i INDEX PLUNGER STAINL. D25 M12*1,5 LOCKNUT/SLOT M12 M12x1,5 6 25 6 56 20 8 14 19 53
8243i INDEX PLUNGER STAINL. D.33 LOCKNUT/SLOT M16 M16x1,5 8 33 8 74 26 10 19 24 102
8244i INDEX PLUNGER STAINL. D.33 LOCKNUT/SLOT M20 M20x1,5 10 33 10 80 28 12 22 30 170
