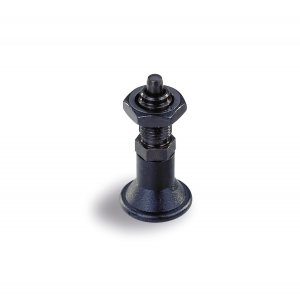

Index plunger

fit for "big-batch"

Index plunger

without collar

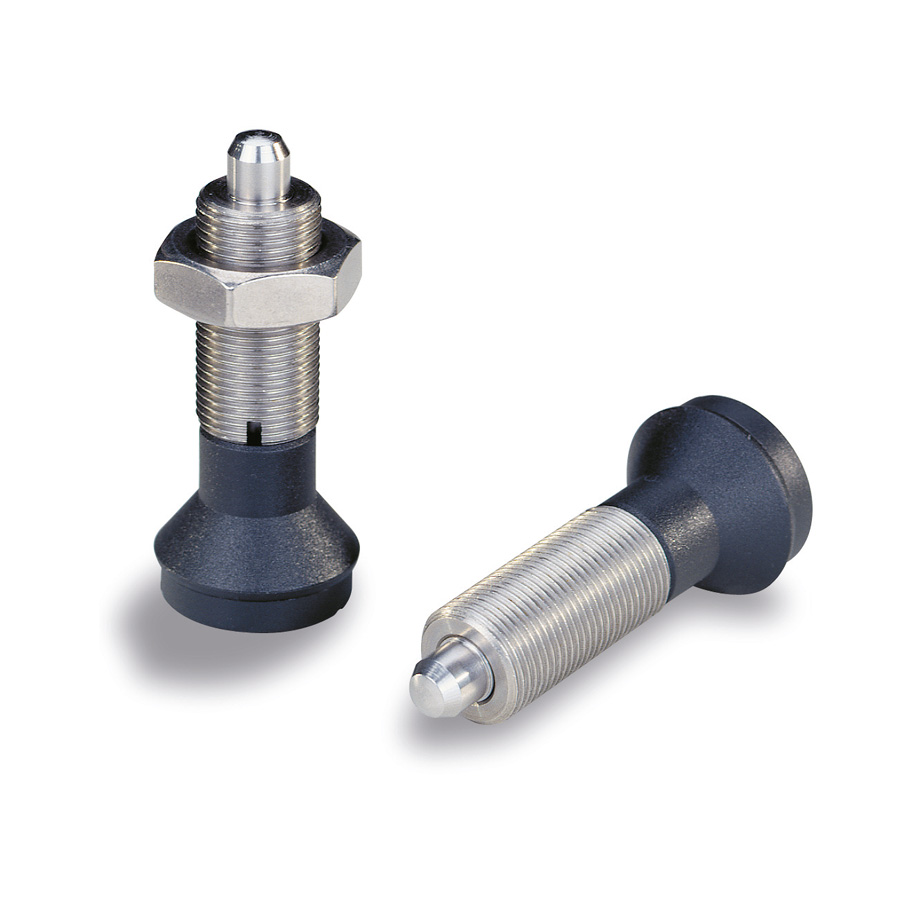

Indexing plungers : Index plunger without collar
  • Reach
  • Rohs
64x64
135° Celsius
-40° Celsius
3D visualisation
Technical specifications
Add to favourites
Grip in polyamid, fiberglass-reinforced. Steel version : plunger in steel 5.8, black oxide finish. Locking pin hardened and ground. Stainless steel version : plunger in stainless steel 1.4305 and locking pin in hardened stainless steel 1.4034 ground.

AVAILABLE VERSIONS

01 / Without locknut

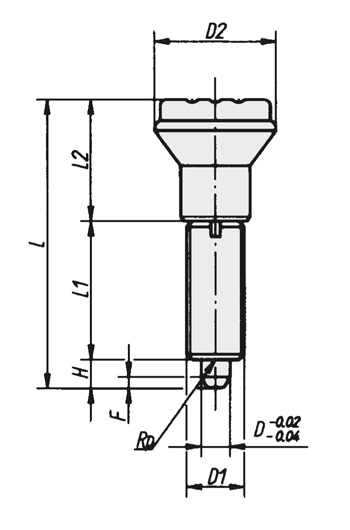

Schéma 1 + Index plunger without collar
REF DESIGNATION D1 D D2 Fx30° H L L1 L2 RES_FIN RES_INI SW Wgt. (g) 3D Quote
8541 INDEX PLUNGER WITHOUT COLLAR STEEL D.21 M10 M10x1,0 5 21 1,3 5 47 24 18 12 5 17 30
8542 INDEX PLUNGER WITHOUT COLLAR STEEL D.25 M12 M12x1,5 6 25 1,8 6 56 28 22 14 6 19 45
8543 INDEX PLUNGER WITHOUT COLLAR STEEL D.33 M16 M16x1,5 8 33 2,3 8 74 36 30 35 15 24 95
8544 INDEX PLUNGER WITHOUT COLLAR STEEL D.33 M20 M20x1,5 10 33 2,8 10 80 40 30 40 20 30 165
8541i INDEX PLUNGER WITHOUT COLLAR STAINL. D.21 M10 M10x1,0 5 21 1,3 5 47 24 18 12 5 17 30
8542i INDEX PLUNGER WITHOUT COLLAR STAINL. D.25 M12 M12x1,5 6 25 1,8 6 56 28 22 14 6 19 45
8543i INDEX PLUNGER WITHOUT COLLAR STAINL. D.33 M16 M16x1,5 8 33 2,3 8 74 36 30 35 15 24 95
8544i INDEX PLUNGER WITHOUT COLLAR STAINL. D.33 M20 M20x1,5 10 33 2,8 10 80 40 30 40 20 30 165

02 / With locknut

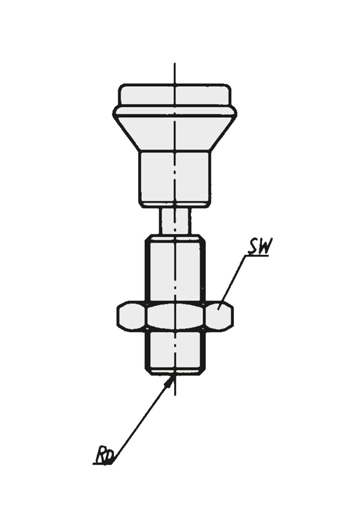

Schéma 2 + Index plunger without collar
REF DESIGNATION D1 D D2 F H L L1 L2 RES_FIN RES_INI SW Wgt. (g) 3D Quote
8545 INDEX PLUNGER WITHOUT COLLAR STEEL D21 M10 LOCKNUT M10x1,0 5 21 1,3 5 47 24 18 12 5 17 37
8546 INDEX PLUNGER WITHOUT COLLAR STEEL D25 M12 LOCKNUT M12x1,5 6 25 1,8 6 56 28 22 14 6 19 54
8547 INDEX PLUNGER WITHOUT COLLAR STEEL D33 M16 LOCKNUT M16x1,5 8 33 2,3 8 74 36 30 35 15 24 102
8548 INDEX PLUNGER WITHOUT COLLAR STEEL D33 M20 LOCKNUT M20x1,5 10 33 2,8 10 80 40 30 40 20 30 175
8545i INDEX PLUNGER WITHOUT COLLAR STAINL D21M10 LOCKNUT M10x1,0 5 21 1,3 5 47 24 18 12 5 17 37
8546i INDEX PLUNGER WITHOUT COLLAR STAINL D25M12 LOCKNUT M12x1,5 6 25 1,8 6 56 28 22 14 6 19 54
8547i INDEX PLUNGER WITHOUT COLLAR STAINL D33M16 LOCKNUT M16x1,5 8 33 2,3 8 74 36 30 35 15 24 102
8548i INDEX PLUNGER WITHOUT COLLAR STAINL D33M20 LOCKNUT M20x1,5 10 33 2,8 10 80 40 30 40 20 30 175
